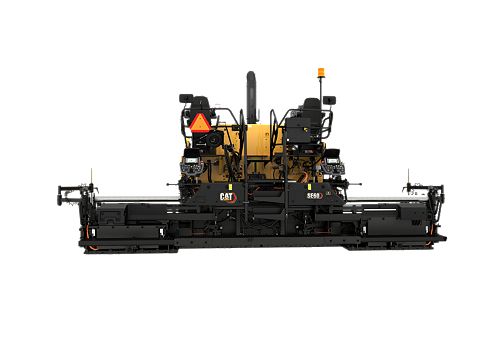

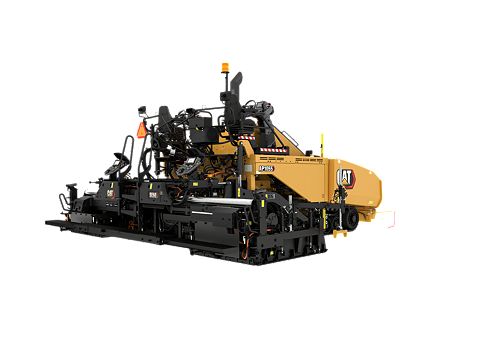

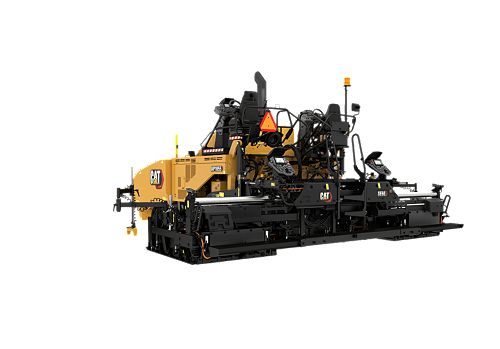

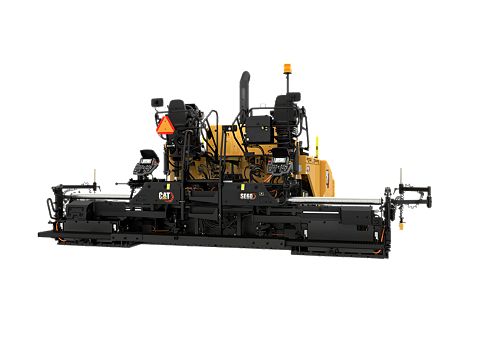

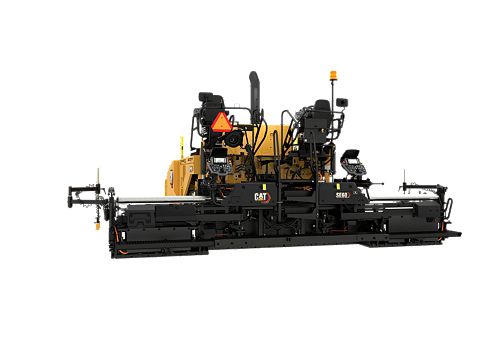

SE60 V Asphalt Screed
- Standard Weight
- 7826 lb / 3550 kg
- Maximum Paving Width
- 24.5 ft / 7.45 m
- Maximum Paving Depth
- 12 in / 305 mm
The Cat® SE60 V Asphalt Screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for highways, interstates, airports, and many other high-production paving applications.
| Weights | |
|---|---|
| Standard Weight | 7826 lb / 3550 kg |
| Operating Specifications | |
|---|---|
| Standard Paving Range | 3.0 - 6.0 m (9' 10" - 19' 6"') |
| Maximum Paving Width | 24.5 ft / 7.45 m |
| Crown Range | -4% to +10% |
| Extender Height Range | +50 mm to -20 mm |
| Extender Slope Range | -3% to +10% |
| Maximum Paving Depth | 12 in / 305 mm |
| Vibratory Speed Range | 0 - 3000 rpm |
| Heating Time - Maximum Width | 25 minutes |
| Heating Time - Standard Width | 15 minutes |
| Dimensions | |
|---|---|
| Screed Plate Width - Front to Back | 16 in / 407 mm |
| Length - Front to Back, Endgates Attached | 94 in / 2394 mm |
| Length - Front to Back, Endgates Removed | 68 in / 1730 mm |
