SE50 V Vibratory Screed
- Standard Weight
- 7239 lb / 3284 kg
- Maximum Paving Width
- 21.3 ft / 6.5 m
- Transport Width - Endgates Folded
- 8.3 ft / 2.55 m

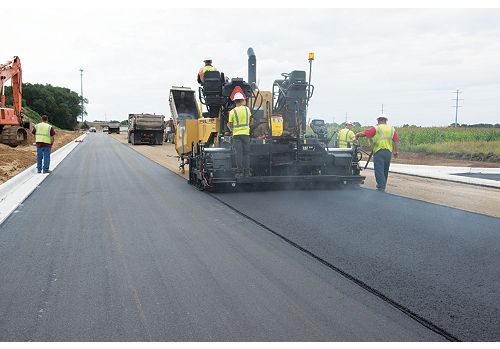

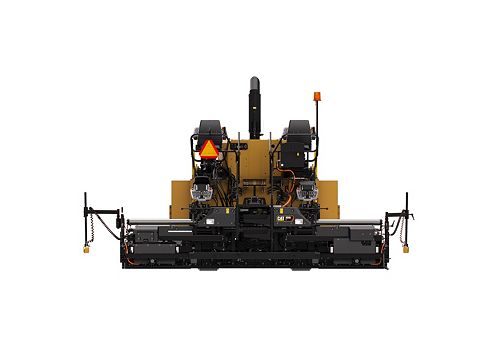

The SE50 V vibratory screed is equipped with rear-mounted extenders and vibratory screed plates. It offers a paving range of 2.55 m - 6.5 m (8' 4" - 21' 4") and excels on highways, parking lots, urban streets and other variable width paving applications.
| Weights | |
|---|---|
| Standard Weight | 7239 lb / 3284 kg |
| Operating Specifications | |
|---|---|
| Standard Paving Range | 2.55 - 5.0 m (8' 4" - 16' 4") |
| Maximum Paving Width | 21.3 ft / 6.5 m |
| Vibratory Speed Range | 0 to 3000 vpm |
| Crown Range | -4% to +10% |
| Maximum Paving Depth | 12 in / 305 mm |
| Heating Time - Standard Width | 15 minutes |
| Heating Time - Maximum Width | 25 minutes |
| Extender Height Range | -20 mm to +50 mm |
| Extender Slope Range | -3% to +10% |
| Dimensions | |
|---|---|
| Transport Width - Endgates Folded | 8.3 ft / 2.55 m |
| Screed Plate Width - Front to Back | 16 in / 407 mm |
| Length - Front to Back, Endgates Removed | 68 in / 1731 mm |
| Length - Front to Back, Endgates Attached | 92 in / 2345 mm |
| Transport Length - Tractor and Screed | 22.1 ft / 6720 mm |
