D6N

Heavy Equipment

D6N

Flywheel Power
166 HP / 124 kW
Operating Weight
36943 lb / 16757 kg
Bore
4.1 in / 105 mm

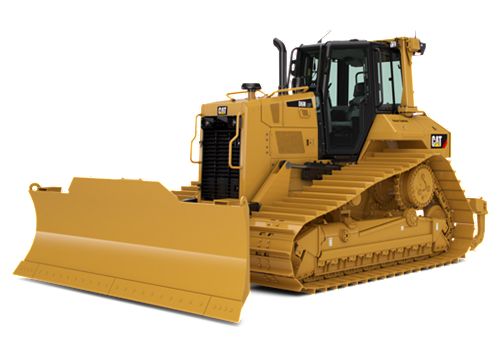

The latest in the line of Cat D6N dozers combines well-known versatility with a range of technology features to give you more job site productivity than ever before. A new transmission with lock-up clutch torque converter delivers ease of operation, increased net power, plus a 10-15 percent improvement in fuel efficiency. The D6N has the weight and horsepower you want for dozing applications and the balance and stability you need for finish grading – all in one easy-to-transport machine.

Engine
Engine Model Cat® C7.1 ACERT™
Flywheel Power 166 HP / 124 kW
Bore 4.1 in / 105 mm
Stroke 5.3 in / 135 mm
Displacement 433 in³ / 7.1 l
Emissions U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final
Engine Power - Maximum - At 2,200 rpm - ISO 14396 178 HP / 133 kW
Engine Power - Maximum - At 2,200 rpm - ISO 14396 (DIN) 180 HP / 133 kW
Engine Power - Maximum - At 2,200 rpm - SAE J1995 182 HP / 136 kW
Net Power - 1,800 rpm - ISO 9249/SAE J1349 166 HP / 124 kW
Net Power - 1,800 rpm - ISO 9249/SAE J1349 (DIN) 168 HP / 124 kW
Note (1) Net power advertised is the power available at the engine flywheel when the engine is equipped with the air cleaner, muffler, alternator, cooling fan at maximum speed.
Note (2) No derating required up to 3000 m (9,840 ft) altitude, beyond 3000 m (9,840 ft) automatic derating occurs.
Note (3) All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (4) Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

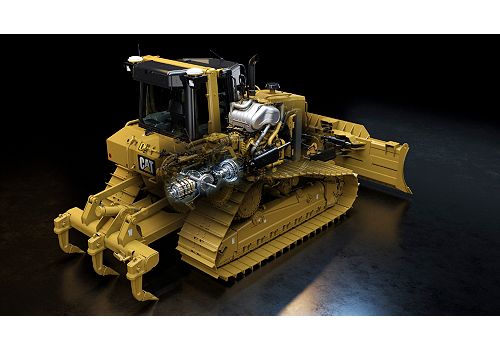

Transmission
1.0 Forward 2.1 mile/h / 3.3 km/h
1.5 Forward 2.7 mile/h / 4.4 km/h
2.0 Forward 3.6 mile/h / 5.8 km/h
2.5 Forward 4.7 mile/h / 7.5 km/h
3.0 Forward 6.1 mile/h / 9.8 km/h
0.5 Forward 1.6 mile/h / 2.5 km/h
0.5 Forward (EU) 1.5 mile/h / 2.4 km/h
0.5 Reverse 1.9 mile/h / 3.1 km/h
0.7 Forward 1.7 mile/h / 2.8 km/h
0.7 Forward (EU) 1.6 mile/h / 2.7 km/h
1.0 Forward (EU) 1.9 mile/h / 3 km/h
1.7 Forward 3 mile/h / 4.9 km/h
2.7 Forward 5.2 mile/h / 8.3 km/h
1.0 Reverse 2.5 mile/h / 4.1 km/h
1.5 Reverse 3.4 mile/h / 5.4 km/h
2.0 Reverse 4.4 mile/h / 7.1 km/h
2.5 Reverse 5.9 mile/h / 9.5 km/h
3.0 Reverse 7.6 mile/h / 12.2 km/h
0.5 Reverse (EU) 1.8 mile/h / 2.9 km/h
0.7 Reverse 2.1 mile/h / 3.4 km/h
0.7 Reverse (EU) 1.9 mile/h / 3.1 km/h
1.0 Reverse (EU) 2.2 mile/h / 3.5 km/h
1.7 Reverse 3.7 mile/h / 6 km/h
2.7 Reverse 6.5 mile/h / 10.5 km/h
Maximum Drawbar Pull - 1.0 Forward 71939  / 320 kN
Maximum Drawbar Pull - 2.0 Forward 44512  / 198 kN
Maximum Drawbar Pull - 3.0 Forward 25403  / 113 kN
Service Refill Capacities
Fuel Tank 73.2 gal (US) / 277 l
Cooling System 10.6 gal (US) / 40 l
Final Drive - Each 1.8 gal (US) / 7 l
Hydraulic Tank 7.8 gal (US) / 29.5 l
Engine Crankcase 4.5 gal (US) / 17 l
Power Train 42.3 gal (US) / 160 l

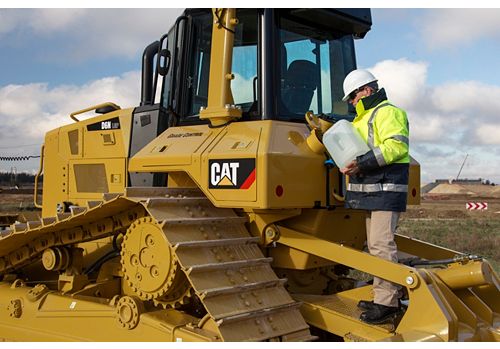

DEF Tank 5 gal (US) / 19 l
Roller Frames XL/LGP - Each 20/17.5 L (4.3/4.6 gal)
Weights
Operating Weight 36943 lb / 16757 kg
LGP VPAT - Blade 2720 lb / 1234 kg
LGP VPAT - Foldable 3287 lb / 1491 kg
LGP VPAT - Landfill 3166 lb / 1436 kg
Multi-Shank Ripper - With 3 Shanks 2959 lb / 1342 kg
Operating Weight - LGP 40446 lb / 18346 kg
Operating Weight - XL 36943 lb / 16757 kg
Shipping Weight - LGP 39339 lb / 17844 kg
Shipping Weight - XL 36153 lb / 16399 kg
XL SU - Blade 5732 lb / 2600 kg
XL VPAT Blade 2341 lb / 1062 kg
XL VPAT Foldable 2762 lb / 1253 kg
XL VPAT Landfill 2912 lb / 1321 kg
Note (1) Operating Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 100% fuel, and Cat Comfort Series Air Suspension Seat and operator.
Note (2) Shipping Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 5% fuel, and Cat Comfort Series Air Suspension Seat.
Operating Weight - LGP Waste Handler 44749 lb / 20298 kg
Operating Weight - XL Fine Grading 38162 lb / 17310 kg
Operating Weight - XL Waste Handler 40818 lb / 18515 kg
Shipping Weight - LGP Waste Handler 43642 lb / 19796 kg
Shipping Weight - XL Fine Grading 37373 lb / 16952 kg
Shipping Weight - XL Waste Handler 40029 lb / 18157 kg
Undercarriage
Ground Contact Area* - LGP 8928 in² / 5.76 m²
Ground Contact Area* - XL 5518 in² / 3.56 m²
Ground Pressure - LGP* 4.5 psi / 31.2 kPa
Ground Pressure - XL* 6.7 psi / 46.1 kPa
Grouser Height - LGP 2.2 in / 57 mm
Grouser Height - XL 2.6 in / 66 mm
Note (1) *ISO 16754
Shoe Width - LGP 33.1 in / 840 mm
Shoe Width - XL 24 in / 610 mm
Shoes/Side - LGP 46
Shoes/Side - XL 40
Track Gauge - LGP 85 in / 2160 mm
Track Gauge - XL 74.4 in / 1890 mm
Track Rollers/Side - LGP 8
Track Rollers/Side - XL 7
Track on Ground - LGP 122.4 in / 3110 mm
Track on Ground - XL 102.6 in / 2605 mm
Ground Contact Area* - XL - Fine Grading 6479 in² / 4.18 m²
Ground Pressure* - XL - Fine Grading 5.8 psi / 40.3 kPa
Grouser Height - XL - Fine Grading 2.6 in / 66 mm
Note (2) All dimensions with SystemOne undercarriage.
Shoe Width - XL - Fine Grading 24 in / 610 mm
Shoes/Side - XL - Fine Grading 46
Track Gauge - XL - Fine Grading 74.4 in / 1890 mm
Track Rollers/Side - XL - Fine Grading 8
Track on Ground - XL - Fine Grading 122.4 in / 3110 mm

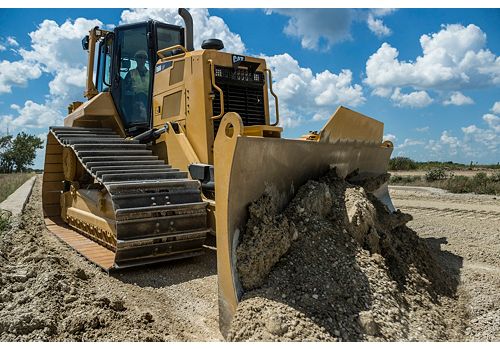

Blades
Capacity - LGP VPAT 5.1 yd³ / 3.9 m³
Capacity - LGP VPAT - Foldable 5.1 yd³ / 3.9 m³
Capacity - XL SU 5.6 yd³ / 4.3 m³
Capacity - XL VPAT 4.3 yd³ / 3.3 m³
Width - LGP VPAT 13.42 ft / 4080 mm
Width - LGP VPAT - Foldable 13.42 ft / 4080 mm
Width - XL SU 10.33 ft / 3154 mm
Width - XL VPAT 10.75 ft / 3272 mm
Ripper
Each Additional Shank 172 lb / 78 kg
Maximum Clearance Raised - Shank Tip 24.5 in / 622 mm
Maximum Penetration - LGP 15.6 in / 398 mm
Maximum Penetration - XL 20.2 in / 514 mm
Maximum Penetration Force - LGP 9667  / 43 kN
Maximum Penetration Force - XL 11600  / 51.6 kN
Maximum Pry-out Force - LGP 38217  / 170 kN
Maximum Pry-out Force - XL 47480  / 211.2 kN
Pocket Spacing 3.3 ft / 1000 mm
Shank Gauge 6.6 ft / 2 m
Shank Section 73 mm × 176 mm (2.9 in × 6.9 in)
Weight - With Three Shanks 3444 lb / 1562 kg
Type Fixed Parallelogram
Number of Pockets 3
Overall Beam Width 86.7 in / 2202 mm
Beam Cross Section 216 mm × 254 mm (8.5 in × 10.0 in)
Winch
Cable Ferrule Size - O.D. × Length 54 mm × 67 mm (2.13 in × 2.63 in)
Control Electric
Drum Capacity - 22 mm (0.88 in) 288.75 ft / 88 m
Maximum Bare Drum - Line Pull* 69200 lb / 31389 kg
Maximum Bare Drum - Line Speed 141 ft/min / 43 m/min
Maximum Full Drum - Line Pull* 44410 lb / 20144 kg
Maximum Full Drum - Line Speed 217 ft/min / 66.1 m/min
Overall Width 38.4 in / 975 mm
Rope Diameter - Recommended 0.875 in / 22 mm
Winch Case - Width 38.4 in / 975 mm
Winch Drive Mechanical
Winch Model PA55
Oil Capacity 19.55 gal (US) / 74 l
Winch and Bracket Length 45.1 in / 1145 mm
Drum Diameter 10 in / 254 mm
Drum Width 12.4 in / 315 mm
Flange Diameter 19.8 in / 504 mm
Note (1) *Weight: Includes pump, operator controls, oil, mounting brackets and spacers.
Note (2) Slow and standard speed winches are available.
Weight* 2814 lb / 1276.5 kg
Standards
FOPS FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II.
ROPS ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008.
Brakes Brakes meet the standard ISO 10265:2008.
Sustainability - Sound and Vibration Levels
Note *Values are for an experienced operator in a dozing application, consult the Operating and Maintenance Manual for details.
Sound Levels - Average Exterior Sound Pressure Level - SAE J88:2006 85.5 dB(A)
Sound Levels - Dynamic Operator Sound Pressure Level (LpA) - ISO 6396:2008 76 dB(A)
Sound Levels - Maximum Sound Power Level - 2000/14/EC 110 dB(A)
Vibration Levels - Maximum Hand/Arm* - ISO 5349:2001 2.5 m/s2 (8.2 ft/s2)
Vibration Levels - Maximum Whole Body* - ISO/TR25398:2006 0.5 m/s2 (1.6 ft/s2)
Vibration Levels - Seat Transmissibility Factor - ISO 7096:2000 - Spectral Class EM6 Less Than 0.7
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Hydraulic Controls - Pressures
Maximum Implement Operating Pressure 3640 psi / 25100 kPa
Maximum Steering Operating Pressure 6556 psi / 45200 kPa
Hydraulic Controls - Pump
Angle Cylinder Flow - VPAT 33.5 gal/min / 127 l/min
Lift Cylinder Flow 33.5 gal/min / 127 l/min
Pump Output - Implement 33.5 gal/min / 127 l/min
Pump Output - Steering 36.2 gal/min / 137 l/min
Ripper Cylinder Flow 33.5 gal/min / 127 l/min
Tilt Cylinder Flow 23.8 gal/min / 90 l/min
Sound and Vibration - Cab
Sound Level Information (1) The operator Equivalent Sound Pressure Level (Leq) is 81.5 dB(A) when “ANSI/SAE J1166 FEB2008” is used to measure the value for an enclosed cab. The measurement was conducted at 100% of the maximum engine cooling fan speed. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound Level Information (2) Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained, or when the doors and windows are open for extended periods or in a noisy environment.
Sound Level Information (3) The average exterior sound pressure level is 85.5 dB(A) when the “SAE J88 FEB2006 – Constant Speed Moving Test” procedure is used to measure the value for the standard machine. The measurement was conducted under the following conditions: distance of 15 m (49.2 ft) and “the machine moving forward in an intermediate gear ratio.”
Specification Name Too Long The declared dynamic operator sound pressure level is 76 dB(A) when “ISO 6396:2008” is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: This dynamic operator sound pressure level is associated to a 2 dB(A) uncertainty.
Specification Name Too Long If equipped, the certification label – 110 dB(A) – is used to verify the environmental sound certification of the machine to the requirements of the European Union. The value that is listed on the label indicates the guaranteed exterior sound power level (LWA) at the time of manufacture for the conditions that are specified in “2000/14/EC.” Your machine may have a different value.

Standard Equipment

  • POWER TRAIN
    • C7.1 Cat ACERT Diesel Engine
    • Tier 4 Final/Stage IV/Korea Tier 4 Final Certified Engine with Aftertreatment (DPF and SCR)
    • Diesel Exhaust Fluid
    • Single Poly-Vee Belt with Auto Belt Tensioner
    • Glowplug Starting Aid
    • 3000 Meter Altitude Operation Capability without De-Rating
    • Engine Driven, Viscous Clutch Fan (variable controlled fan speed)
    • Aluminum Bar Plate Cooling Systems (radiator, power train, aftercooler, differential steering)
    • Air Cleaner, Integrated Precleaner with Dust Ejector
    • Electrical Lift/Priming Pump
    • 3 Speed Planetary, Powershift Transmission with Lock-Up Clutch Torque Converter
    • Enhanced Auto Shift (EAS)
    • Infinite Ground Speed Adjustment (GSA)
    • Shift Management: – Automatic Directional and Downshift – Controlled Throttle, Load Compensated
    • Programmable/Selectable Bi-Directional Shifting
    • Differential Steering
    • Engine Idle Shutdown
    • Auto Engine Speed Control
    • Extended Life Coolant
  • UNDERCARRIAGE
    • Heavy Duty Undercarriage
    • Center Tread Idler
    • Lifetime Lubricated Track Rollers (7 XL and 8 LGP) and Idlers
    • Carrier Rollers
    • Tracks 40 Section – 610 mm (24 in)
    • Extreme Service for XL
    • Tracks 46 Section – 840 mm (33 in)
    • Moderate Service for LGP
    • Hydraulic Track Adjusters
    • Center Track Guiding Guard (LGP only)
  • HYDRAULICS
    • Three Valve-Hydraulics for VPAT Dozer
    • Load Sensing Hydraulics
  • ELECTRICAL
    • Horn
    • Back-up Alarm
    • 12V Converter, 10A
    • Diagnostic Connector
    • 950 CCA Class 31 Batteries
    • Integrated Lights (four front, two rear)
    • 105 AMP HD Brushless Alternator 24 Volt
    • 24V Electric Starter
    • Ground Level Service Center with Remote Electrical Disconnect, Hour Meter and Remote Light Switch
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Cab
    • Integrated A/C with Automatic Temperature Control
    • Seat, Air Suspension, Cloth for Cab
    • Seat Belt, Retractable – 76 mm (3 in)
    • Adjustable Armrests
    • Foot Rests for Slope Work
    • Color Graphic 7 in (178 mm) Display
    • Power Train Control Module (Throttle Dial, Electronic, Enhanced Auto Shift [EAS] Control and Shift Management Dial)
    • Electronic Engine Air Cleaner Service Indicator
    • Electronic Water-In-Fuel Sensor Service Indicator
    • Electro-Hydraulic Implement and Differential Steering Controls
    • One 12V Power Ports
    • Intermittent Wiper
    • 12V Radio Ready (Plug and Play)
    • Storage Compartment
    • Cup Holder
    • Coat Hook
    • Rearview Mirror
    • Glove Box
  • TECHNOLOGY PRODUCTS
    • Cat GRADE with Slope Assist
    • Cat Slope Indicate
    • Cat Stable Blade
    • Product Link
  • OTHER STANDARD EQUIPMENT
    • Shovel Fastener
    • CD ROM Parts Book
    • C-Frame, Cylinders (VPAT) and Lines
    • Extended Service Intervals (500 hours engine, 1,000 hours power train)
    • Guards, Hinged Bottom
    • Ecology Drains (engine oil, engine coolant, power train case, hydraulic)
    • Adjustable Pitch Link (VPAT)
    • Engine Enclosures, Perforated
    • Scheduled Oil Sampling Ports
    • Centralized Remote Mounted Pressure Taps
    • Front Pull Device
    • Hinged Radiator Louvered Grill
    • Lockable Engine Enclosures

Optional Equipment

  • POWER TRAIN
    • Precleaner, Turbine with Screen
  • UNDERCARRIAGE
    • XL – SystemOne
    • XL – Heavy Duty
    • XL – Heavy Duty with Double Flange
    • XL – SystemOne Fine Grading
    • XL – Heavy Duty Fine Grading
    • LGP – SystemOne
    • LGP – Heavy Duty
    • LGP – Heavy Duty with Double Flange
    • LGP – Super LGP
    • XL – Heavy Duty – Waste
    • LGP – Heavy Duty – Waste
  • TRACKS
    • Track Pairs, XL, SystemOne (40 sections): – 610 mm (24 in), Extreme Service – 560 mm (22 in), Extreme Service – 610 mm (24 in), Moderate Service (46 sections)
    • Track Pairs, XL, Heavy Duty (40 sections): – 600 mm (24 in), Extreme Service – 600 mm (24 in), Moderate Service (46 sections) – 600 mm (24 in) Extreme Service, Center Hole
    • Track Pairs, LGP, SystemOne (46 sections): – 840 mm (33 in), Moderate Service – 840 mm (33 in), Extreme Service – 860 mm (34 in), Extreme Service
    • Track Pairs, LGP, Heavy Duty (46 sections): – 600 mm (24 in), Extreme Service – 840 mm (33 in), Extreme Service – 840 mm (33 in), Extreme Service, Center Hole – 860 mm (34 in), Extreme Service
    • Track Pairs, Super LGP, Heavy Duty (52 sections): – 1067 mm (42 in), HD Self Cleaning – 1067 mm (42 in), HD Double Grouser
  • TRACK GUIDING GUARDS
    • XL, SystemOne: – Guard Guiding, Center – Guard Guiding, Front and Rear – Guard Guiding, Full
    • XL, Heavy Duty: – Guard Guiding, Center – Guard Guiding, Extreme Service, Full
    • LGP, SystemOne: – Guard Guiding, Center – Guard Guiding, Front and Rear – Guard Guiding, Full
    • LGP, Heavy Duty: – Guard Guiding, Center – Guard Guiding, Extreme Service, Full
  • REAR CONTROL PACKAGES
    • Ripper Ready Package
    • Winch Ready Package
    • Dual Control Package (SU, VPAT, Super LGP)
  • FAN AND COOLING
    • Radiator, Trash Resistant
    • Direct Drive Fan, Reversible
    • Direct Drive Fan with Hydraulically Reversible Blades
  • WEATHER PACKAGES AND BATTERIES
    • Battery, Standard, Package
    • Battery, Heavy Duty, Package
    • Cold Weather, 120V, Package
  • TECHNOLOGY PRODUCTS
    • Cat AccuGrade
    • Cat Grade with 3D
    • ARO Installation
    • No ARO Installation
    • Product Link: – Product Link, Satellite PLE 631 – Product Link, Cellular PLE 641 – No Product Link
  • FUEL SYSTEMS
    • Fuel Tank, Standard
    • Fuel Tank, Fast Fill and Refill Ready
  • GUARDS
    • Guard Packages: – Guard, VPAT, Standard, Package – Guard, VPAT, Heavy Duty, Package – Guard, SU, Heavy Duty, Package – Guard, Rear, Standard – Guard, Rear, Heavy Duty – No Guard
  • REAR ATTACHMENTS
    • Ripper, Teeth Straight, Package
    • Ripper, Teeth Curved, Package
    • PA55 Winch, Standard Speed Package
    • PA55 Winch, Slow Speed, Package
    • Drawbar
    • Rear Box with Striker Bar
    • No Rear Attachment
  • REAR HYDRAULICS
    • PTO Filter, No Winch
    • PTO Filter, Winch
  • BULLDOZER PACKAGES
    • Bulldozer, VPAT XL, STD Package
    • Bulldozer, VPAT LGP, STD Package
    • Bulldozer, VPAT XL, HD Package
    • Bulldozer, VPAT, LGP, HD Package
    • Bulldozer, VPAT XL, GRADE with 3D
    • Bulldozer, VPAT, LGP, GRADE with 3D
    • Bulldozer, SU XL Package
    • Bulldozer Super LGP
  • BLADES
    • Blade, ARO XL, VPAT
    • Blade, ARO LGP, VPAT
    • Blade, ARO XL Foldable, VPAT
    • Blade, ARO LGP Foldable, VPAT
    • Blade, Landfill (XL or LGP)
    • Blade, Super LGP
    • Blade, SU XL
    • No Blade
  • LIGHTS
    • Lights
    • Forestry Lights
    • GRADE with 3D Lights
  • OPERATOR ENVIRONMENT
    • Cab Packages: – Standard with Air Suspension Seat – Cab Comfort Package with Air Suspension/Heated/Ventilated Seat – Cab Comfort Package – Heavy Duty
    • Camera Arrangement
    • Radio, AM/FM/AUX/USB/Bluetooth™
  • HYDRAULIC OIL
    • Hydraulic Oil, Biodegradable
  • STARTERS, BATTERIES, AND ALTERNATORS
    • Electrical Insulated Breather
    • Beacon, Rotating
  • GUARDS – CAB PROTECTION
    • Cab, Protection Package
    • Screen, Rear
    • Screen, Grill Front
    • Grid, Sandblast
    • Guard, Rear, Drawbar and Winch Ready
  • FLUIDS
    • Antifreeze, (–37° C/–34.6° F)
  • OTHER ATTACHMENTS
    • Winch Options: – Fairlead, 3 Rollers – Fairlead, 4 Rollers
  • MAINTENANCE AND RELATED ATTACHMENTS
    • Shovel Holder
    • Refilling Fuel Pump
    • Oil Change System, High Speed
  • SPECIAL ARRANGEMENTS
    • Forestry Package (XL or LGP)
    • Waste Handler (XL or LGP)
Contact Us
x

We're here to help

We'll do our best to get back to you as soon as possible.
