735C Bare Chassis

Standard Wheel Base
162.4 in / 4126 mm
Long Wheel Base
228.4 in / 5801 mm
Rated Payload
36 t / 32.7 t

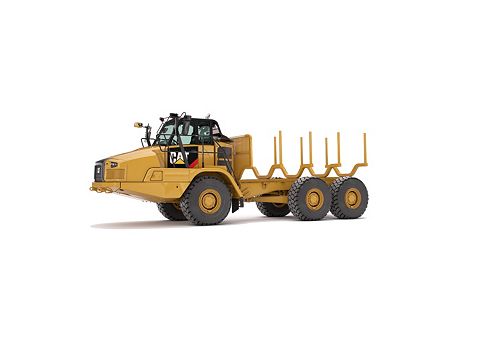

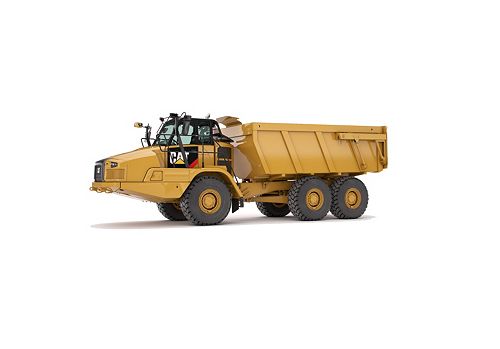

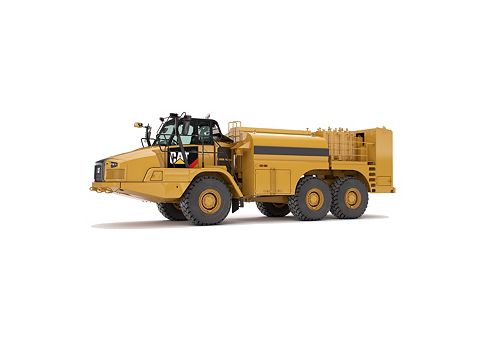

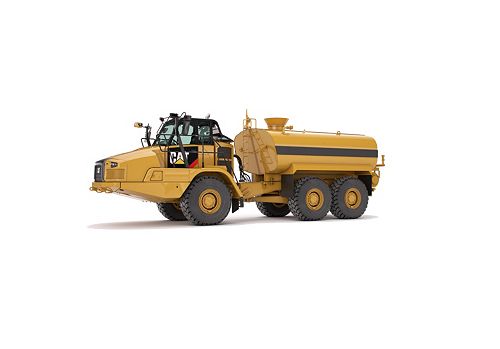

The Cat OEM 735C Bare Chassis with a 22 m3 (28.7 yd3) 32.7 tonnes (36 tons) capacity offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. With many updated and improved features, an all new power train and new ease of operation features including Automatic Retarder Control, the 735C is now more productive than ever before.

Loan Calculator Credit Application
Build & Quote
alt 1
735C Bare Chassis
Wheel Base Length
Standard Wheel Base 162.4 in / 4126 mm
Long Wheel Base 228.4 in / 5801 mm
Engine
Engine Model Cat C15 ACERT
Bore 5.4 in / 137 mm
Stroke 6.75 in / 171.5 mm
Displacement 926 in³ / 15.2 l
Net Power - ISO 14396 447 HP / 333 kW
Net Power - SAE J1349 441 HP / 329 kW
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final Cat® C15 ACERT™
Gross Power - SAE J1995 452 HP / 337 kW
Peak Engine Torque Speed 1200 r/min
No Engine De-rating Required Below 10000 ft / 3050 m
Peak Engine Torque Net (SAE J1349) 1887 lb/ft / 2558 N·m
Peak Engine Torque Gross (SAE J1995) 1931 lb/ft / 2618 N·m
Weights
Rated Payload 36 t / 32.7 t
Transmission
Forward - 1 3.7 mile/h / 6 km/h
Forward - 2 4.9 mile/h / 7.9 km/h
Forward - 3 6.8 mile/h / 11 km/h
Forward - 4 8.6 mile/h / 13.9 km/h
Forward - 5 11.4 mile/h / 18.4 km/h
Forward - 6 14 mile/h / 22.5 km/h
Forward - 7 19.3 mile/h / 31 km/h
Reverse - 1 3.9 mile/h / 6.3 km/h
Reverse - 2 8.9 mile/h / 14.4 km/h
Forward - 8 23.1 mile/h / 37.3 km/h
Forward - 9 33.5 mile/h / 53.9 km/h
Sound Levels
Interior Cab 79 dB(A)
Service Refill Capacities
Fuel Tank 126.8 gal (US) / 480 l
Cooling System 23.7 gal (US) / 90 l
Engine Crankcase 10.6 gal (US) / 40 l
DEF Tank 6.6 gal (US) / 25 l
Transmission - OTG 19.8 gal (US) / 75 l
Axles - Each 15.8 gal (US) / 60 l
Final Drive - Each 1.3 gal (US) / 5 l
Steering/Hoist Hydraulic System 36.9 gal (US) / 140 l
Brake Cooling Tank 17.69 gal (US) / 67 l
Steering
Lock to Lock 4.6 seconds @ 60 rpm
Standards
Brakes ISO 3450-2011
Cab - FOPS ISO 3449 Level II-2005
Cab - ROPS ISO 3471-2008
Steering ISO 5010-2007
Turning Circle
Turning Dimensions - Clearance Radius 331 in / 8420 mm
Turning Dimensions - Steer Angle - Left/Right 45°
Turning Dimensions - SAE Turning Radius 314 in / 7968 mm
Note Dimensions are for machines equipped with 26.5R25 tires.
Turning Dimensions - Aisle Width 221 in / 5607 mm
Turning Dimensions - Inside Radius 157 in / 3978 mm

Standard Equipment

  • For bare chassis standard and optional equipment, please reference the 735C Articulated Truck. For more information on 735C Bare Chassis options, please contact Caterpillar OEM Solutions at oemsolutions@cat.com.

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
Cat Product Link

Three Axle Articulated Trucks

Cat® articulated trucks haul a wide spectrum of material in a variety of applications and ground conditions. Simple operation and automotive style comfort along with combined service points and extended service intervals mean these dump trucks let you focus on your work spending less time and money on servicing.

Model Engine Model Rated Payload Heaped (SAE 2:1)
735C Cat C15 ACERT 36 t / 32.7 t 26.8 yd³ / 20.5 m³
