D7E WH

Heavy Equipment

D7E WH

Flywheel Power
251 HP / 187 kW
Operating Weight
71455 lb / 32411 kg
Shipping Weight
59456 lb / 26968 kg

Engine
Engine Model Cat® C9.3 ACERT™
Flywheel Power 251 HP / 187 kW
Bore 4.5 in / 115 mm
Stroke 5.9 in / 149 mm
Displacement 567 in³ / 9.3 l
Engine Power - Maximum - ISO 14396 266 HP / 198 kW
Engine Power - Maximum - ISO 14396 (DIN) 270 HP / 198 kW
Engine Power - Maximum - SAE J1995 270 HP / 201 kW
Global Emissions Tier 4 Final/Stage IV/Korea Tier 4
Net Power - Maximum - ISO 9249/SAE J1349 251 HP / 187 kW
Net Power - Rated - ISO 9249/SAE J1349 238 HP / 178 kW
Net Power - Rated - ISO 9249/SAE J1349 (DIN) 241 HP / 178 kW
Net Power - Maximum - ISO 9249/SAE J1349 (DIN) 254 HP / 187 kW
Note Rated power occurs at 1,700 rpm. Maximum power occurs at 1,600 rpm.
Service Refill Capacities
Cooling System 22.5 gal (US) / 87 l
Engine Crankcase 8 gal (US) / 30 l
Final Drive - Each 7 gal (US) / 28 l
Fuel Tank 113.5 gal (US) / 430 l
Pivot Shaft Compartment 1.8 gal (US) / 7 l
Power Train 16 gal (US) / 60 l
DEF Tank 4.75 gal (US) / 18 l
Hydraulic Tank 20 gal (US) / 76 l
Roller Frames - Each 11 gal (US) / 42 l
Weights
Operating Weight 71455 lb / 32411 kg
Shipping Weight 59456 lb / 26968 kg
Operating Weight - LGP S WHA 69478 lb / 31515 kg
Note (1) Shipping Weight includes lubricants, coolant, ROPS/FOPS cab, standard track and 10% fuel.
Note (2) Operating Weight includes blade, lubricants, coolant, full fuel tank, standard track, striker box and operator.
Operating Weight - LGP U WHA 71455 lb / 32411 kg
Standards
ROPS Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 Level II
Brakes Crawler Machine Brake Requirements meets the following criteria: ISO 10265:2008
Drive Train
AC Compressor Maximum Input Current 12 A
AC Compressor Nominal Input Voltage 320 V
AC Generator and Propulsion Module Voltage 480 V
Note Nominal current dependent on heat/humidity loading on HVAC unit.
Type Electric Drive
Undercarriage
Track Gauge 90 in / 2286 mm
Configuration LGP
Ground Clearance 18.6 in / 472 mm
Ground Contact Area (Heavy Duty) 9792 in² / 6.31 m²
Ground Pressure (Heavy Duty) - ISO 16754 6.4 psi / 44.4 kPa
Grouser Height - MS 2.75 in / 70 mm
Length - Track on Ground - Heavy Duty 136 in / 3450 mm
Number of Rollers - Each Side 8
Number of Shoes - Each Side 44
Pitch 8.5 in / 216 mm
Shoe Width 36 in / 915 mm
Type Heavy Duty Undercarriage
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg of refrigerant which has a CO2 equivalent 1.716 metric tonnes.
Bulldozer Specifications - 7S LGP Blade
Blade Capacity - SAE J1265 25 yd³ / 19.1 m³
Digging Depth 24.8 in / 631 mm
Ground Clearance 50.9 in / 1292 mm
Height 8 ft / 2425 mm
Maximum Tilt 30.9 in / 785 mm
Note *Weight includes cylinder mounting, lift cylinder and lines, blade, push arms, trunnions, trash rack and cylinder lines (Tilt).
Weight* 8875 lb / 4026 kg
Width - Over End Bits 15.1 ft / 4594 mm
Bulldozer Specifications - 7U LGP Blade
Blade Capacity - SAE J1265 30 yd³ / 22.9 m³
Digging Depth 27.3 in / 693 mm
Ground Clearance 52.6 in / 1336 mm
Height 8 ft / 2432 mm
Maximum Tilt 30.9 in / 784 mm
Note *Weight includes cylinder mounting, lift cylinder and lines, blade, push arms, trunnions, trash rack and cylinder lines (Tilt).
Weight* 11645 lb / 5282 kg
Width - Over End Bits 15.4 ft / 4698 mm
Dimensions - LGP - Approximate
Drawbar Height (Grouser Tip to Center of Clevis) 28 in / 719 mm
Ground Clearance 18.6 in / 472 mm
Ground Contact Area - With Standard Shoes 9792 in² / 6.31 m²
Ground Pressure 6.4 psi / 44.3 kPa
Height - Grouser 2.75 in / 70 mm
Length - Basic Tractor 181 in / 4608 mm
Length - Basic Tractor - With Drawbar 10.6 in / 270 mm
Length - Basic Tractor - With Ripper - Tip Fully Raised N/A
Length - Basic Tractor - With Ripper - Tip at Ground Line N/A
Length - Basic Tractor - With S Blade 53.5 in / 1360 mm
Length - Basic Tractor - With U Blade 76.6 in / 1947 mm
Length - Track on Ground 136 in / 3450 mm
Machine Height - Grouser Tip - Ground Face of Shoe 131 in / 3322 mm
Machine Height - Grouser Tip - Top of Stack 132 in / 3365 mm
Machine Height - Grouser Tip - Top of Standard Cab 134 in / 3392 mm
Number of Carrier Rollers 2
Number of Shoes - Each Side 44
Pitch 8.5 in / 215.9 mm
Standard Shoe Width (Moderate Service) 36 in / 915 mm
Track Gauge 90 in / 2286 mm
Track Rollers/Side 8
Width - Tractor - Over Trunnions 135 in / 3423 mm
Width - Tractor - Without Trunnions - Standard Shoes 126 in / 3200 mm

Standard Equipment

  • ELECTRICAL
    • Accessory Power Converter (APC)
    • Alarm, Backup
    • Batteries, Heavy Duty
    • Converter, 24V to 12V, 10 Amp
    • Heater, Engine Coolant, 120V
    • Horn, Forward Warning
    • Product Link
  • OPERATOR ENVIRONMENT
    • Enhanced Clean Cab
    • Air Suspension Seat
    • Cab Door Screens
    • Armrest, Adjustable
    • Bidirectional Shift Switch
    • Center Post Cab, ROPS/FOPS
    • Continuously Variable Speed Control
    • Differential Steering
    • Electro-Hydraulic Controls
    • Electronic Monitoring System
    • Foot Supports, Dash
    • Hour Meter, Electronic
    • Machine Isolation, Operator Not Present
    • Mirror, Rearview
    • Modular HVAC, Cab Mounted
    • Radio Ready, 12V
    • Seat Belt, Retractable 76 mm (3")
    • Speed Recall Button
    • Throttle Dial, Electronic
    • Tilt Cab and Tilt Cab Jack
    • Travel Control Pedal
    • Wipers, Intermittent
  • POWER TRAIN
    • Final Drive Flange Protection Guards
    • Final Drive Clamshell Guard
    • Engine Thermal Shields
    • Heavy Duty Final Drive Flange Guards
    • Aftercooler
    • Air Cleaner, Precleaner with Strata Tube Dust Ejector
    • C9.3 ACERT Engine – Meets Tier 4 Final/Stage IV/Korea Tier 4 emission standards
    • Continuously Variable Speed Transmission
    • Coolant, Extended Life
    • Drains, Ecology, Power Train
    • Electronic Air Cleaner Service Indicator
    • Fan, Hydraulically Driven Demand
    • Final Drives, Double Reduction
    • Fuel Priming Pump, Electronic
    • Parking Brake, Electronic
    • Starting Aid, Ether
    • Water Cooled Turbocharger, Wastegated
    • Water Separator
    • Reversing Fan
  • UNDERCARRIAGE
    • Heavy Duty Track (660 mm/26" MS Trap)
    • Heavy Duty Track (914 mm/36" MS Trap)
    • Guards, End Track Guiding
    • Idler Guards
    • Master Link
    • Idler Seal Guards, Kevlar Design
    • Track Roller Frame Debris Guard
    • Rollers and Idlers, Lifetime Lubricated
    • Sprocket Rim Segments, Replaceable
    • Track Adjusters, Gas Spring Recoil
    • Grease Track Adjust
    • Guard Group, Track Guide
  • OTHER STANDARD EQUIPMENT
    • Fenders, Heavy Duty
    • Chassis Guarding on Mainframe
    • Seal Guard Group
    • Crankcase Guard Group
    • Fuel Tank Guards
    • Dozer Lines Guards
    • Black Hood and Dozer Lift Cylinder
    • Screen, Grill Door
    • CD ROM Parts Book
    • Engine Enclosures, Perforated
    • Front Tow Hook
    • Grade Control Ready
    • Guards, Hinged Bottom
    • Hood, Perforated
    • Hydraulics, Load Sensing, Dozer Lift and Tilt
    • Oil Cooler, Hydraulic
    • S·O·SSM Sampling Ports
    • Radiator Doors, Louvered, Double Hinged
    • Vandalism Protection for Fluid Compartments and Battery Box
    • Insulated Clean Emissions Module

Optional Equipment

  • Lights
    • Basic (6) Lights
    • Premium (10) HID and Halogen Lights

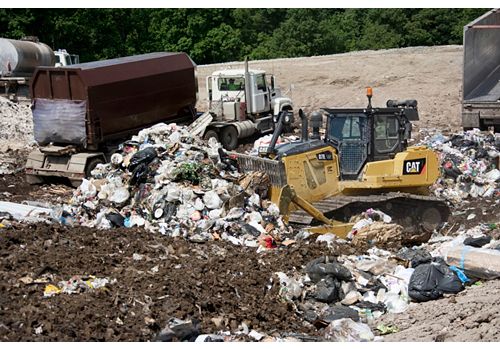

  • Landfill Bulldozer Blades – with Trash Racks
    • LGP S
    • LGP U
