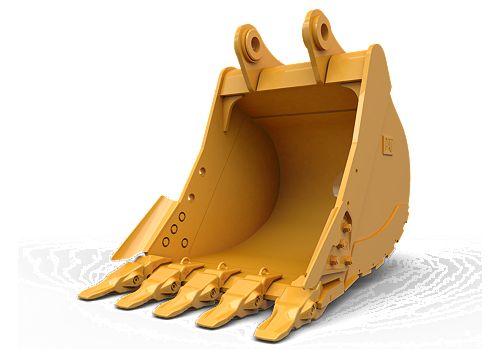

Cat® buckets are more than just an add-on, they are an extension of your Cat machines. Each one is perfectly balanced to our excavators so you can take on heaping loads without compromising fuel efficiency or machine health. We built them to fill faster, retain your load, and fit your task.
| Product Specifications | |
|---|---|
| Width | 36 in / 900 mm |
| Capacity | 1.06 yd³ / 0.81 m³ |
| Weight | 1959 lb / 889 kg |
| Interface | Use as Pin-on or with Cat Pin Grabber Coupler |
| Adapter Quantity | 5 |
| Adapter Size | Cat Advansys 90 |
| Edge Type | Straight |
| Model | Engine Model | Stroke | Net Flywheel Power |
|---|---|---|---|
| 336F L Straight Boom (2017) | Cat C9.3 ACERT | 5.87 in / 149 mm | 306 HP / 228 kW |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 320 GC - Tier 4 / Stage V | 146 HP / 109 kW | 48500 lb / 22000 kg | 22 ft / 6720 mm |
| 320 - Tier 4 / Stage V | 172 HP / 128.5 kW | 49800 lb / 22600 kg | 22 ft / 6720 mm |
| 323 - Tier 4 / Stage V | 172 HP / 128.5 kW | 55100 lb / 25000 kg | 22.1 ft / 6730 mm |
| 330 GC - Tier 4 / Stage V | 201 HP / 150 kW | 68100 lb / 30900 kg | 23.8 ft / 7260 mm |
| 330 - Tier 4 / Stage V | 273 HP / 203.7 kW | 69200 lb / 31400 kg | 23.9 ft / 7240 mm |
| 335 - Tier 4 / Stage V | 273 HP / 203.7 kW | 77000 lb / 34900 kg | 22.9 ft / 6990 mm |
