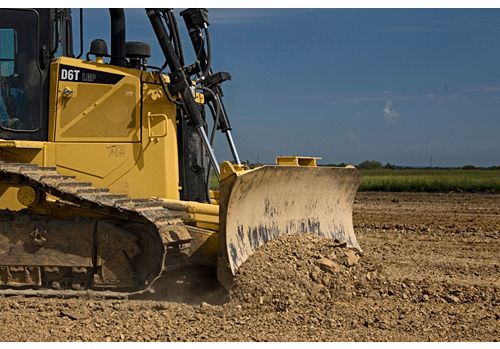

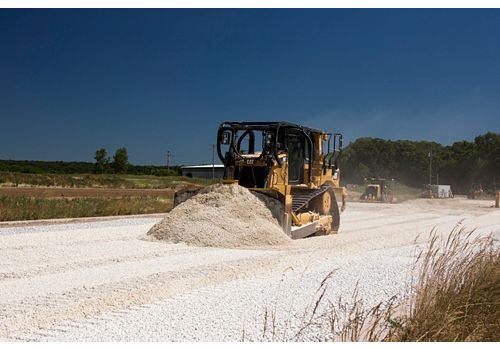

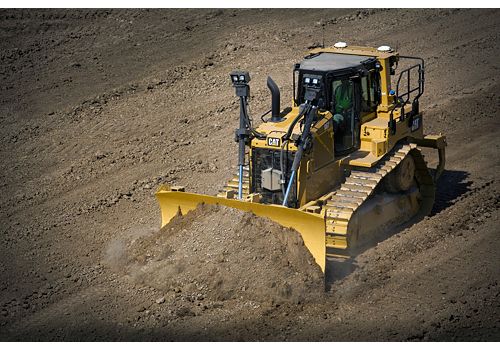

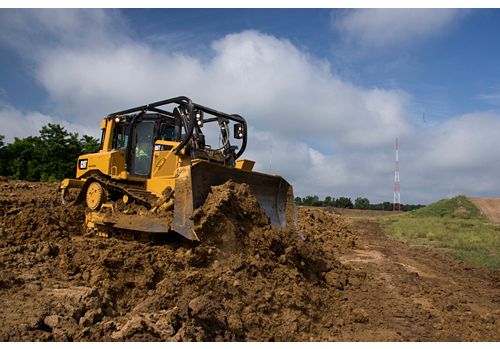

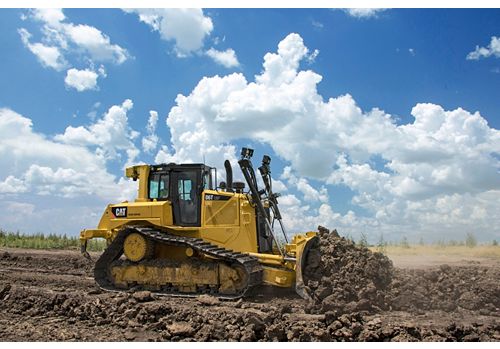

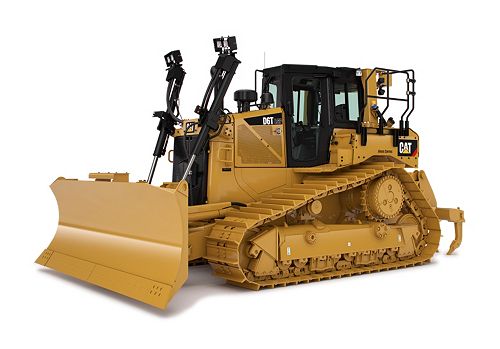

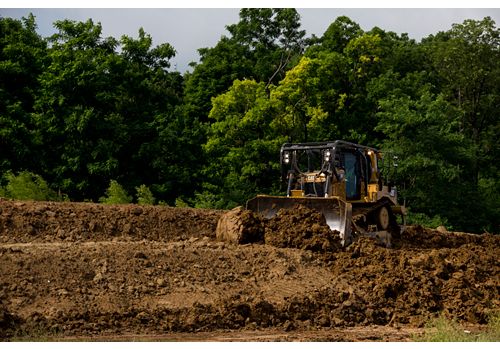

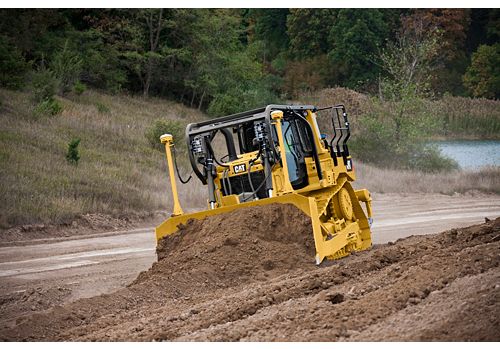

D6T

Heavy Equipment

D6T

Flywheel Power
215 HP / 161 kW
Operating Weight
47138 lb / 21382 kg
Displacement
567 in³ / 9.3 l

The new D6T dozer makes high efficiency dozing as easy as driving your pickup truck. A smooth-shifting, fully automatic four-speed Cat® transmission continuously optimizes the power train for the application. You save fuel and operator effort, without sacrificing durability, power or productivity. Work smarter too, with a full range of Cat Connect GRADE technology features to fit your job site needs.

Engine
Engine Model Cat C9.3 ACERT™
Flywheel Power 215 HP / 161 kW
Displacement 567 in³ / 9.3 l
Emissions U.S. EPA Tier 4 Final
Net Power - 2,200 rpm - ISO 9249/SAE J1349 215 HP / 161 kW
Net Power - Maximum - ISO 9249/SAE J1349 at 1,200 rpm 245 HP / 183 kW
Note (1) All non road Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2) Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Build Number 19
Service Refill Capacities
Fuel Tank 97.2 gal (US) / 368 l
Cooling System 12.2 gal (US) / 46 l
Engine Crankcase 6.5 gal (US) / 24.6 l
Power Train 39.1 gal (US) / 148 l
Final Drive - Each 3.6 gal (US) / 13.5 l
Hydraulic Tank 16.5 gal (US) / 62.5 l
Roller Frames - Each 6.6 gal (US) / 25 l
Pivot Shaft Compartment 1.3 gal (US) / 5 l
DEF Tank 4.5 gal (US) / 17.1 l
Weights
Operating Weight 47138 lb / 21382 kg
Operating Weights
LGP A 53829 lb / 24417 kg
LGP S 51385 lb / 23299 kg
XL A 47846 lb / 21703 kg
XL SU 47138 lb / 21382 kg
XL VPAT 53042 lb / 24060 kg
XW A 49797 lb / 22588 kg
XW SU 48909 lb / 22185 kg
XW VPAT 54045 lb / 24515 kg
LGP VPAT 54526 lb / 24733 kg
Note Operating weight includes blade, lubricants, coolant, full fuel tank, standard track, ROPS/FOPS cab, drawbar and operator.
Blades - Capacity
LGP A-Blade 6.46 yd³ / 4.94 m³
LGP S-Blade 4.96 yd³ / 3.79 m³
XL A - Blade 5.17 yd³ / 3.95 m³
XL SU - Blade 7.26 yd³ / 5.55 m³
XL VPAT - Blade 6.07 yd³ / 4.64 m³
XW A - Blade 5.69 yd³ / 4.35 m³
XW SU - Blade 7.38 yd³ / 5.64 m³
XW VPAT - Blade 6.57 yd³ / 5.02 m³
LGP VPAT - Blade 6.57 yd³ / 5.02 m³
Blades - Width
LGP A-Blade 16.6 ft / 5072 mm
LGP S-Blade 13.3 ft / 4063 mm
LGP VPAT - Blade 13.7 ft / 4160 mm
XL A - Blade 13.7 ft / 4160 mm
XL SU - Blade 10.7 ft / 3261 mm
XL VPAT - Blade 12.7 ft / 3880 mm
XW A - Blade 14.8 ft / 4520 mm
XW SU - Blade 11.7 ft / 3562 mm
XW VPAT - Blade 13.7 ft / 4160 mm
Dimensions - LGP
Ground Clearance 16 in / 406 mm
Ground Pressure (ISO 16754)(3) 5.11 psi / 35.2 kPa
Length - Basic Tractor(2) 14.5 ft / 4415 mm
Length - Track on Ground 10.67 ft / 3245 mm
Machine Height - To Product Link Antenna(1) 10.83 ft / 3303 mm
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 10.5 ft / 3201 mm
Dimensions - LGP VPAT
Ground Clearance 16 in / 406 mm
Ground Pressure (ISO 16754)(3) 6.28 psi / 43.3 kPa
Length - Basic Tractor(2) 16.42 ft / 5002 mm
Length - Track on Ground 10.67 ft / 3245 mm
Machine Height - To Product Link Antenna(1) 10.83 ft / 3303 mm
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 10.33 ft / 3143 mm
Dimensions - XL
Ground Clearance 15 in / 375 mm
Ground Pressure (ISO 16754)(3) 8.66 psi / 59.7 kPa
Length - Basic Tractor(2) 13.83 ft / 4210 mm
Length - Track on Ground 9.25 ft / 2814 mm
Machine Height - To Product Link Antenna(1) 10.67 ft / 3253 mm
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 8 ft / 2440 mm
Dimensions - XL VPAT
Ground Clearance 15 in / 375 mm
Ground Pressure (ISO 16754)(3) 9.78 psi / 67.4 kPa
Length - Basic Tractor(2) 16.08 ft / 4894 mm
Length - Track on Ground 9.25 ft / 2814 mm
Machine Height - To Product Link Antenna(1) 10.67 ft / 3253 mm
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 8.92 ft / 2717 mm
Dimensions - XW
Ground Clearance 15 in / 375 mm
Ground Pressure (ISO 16754)(3) 6.64 psi / 45.8 kPa
Length - Basic Tractor(2) 13.83 ft / 4210 mm
Length - Track on Ground 9.25 ft / 2814 mm
Machine Height - To Product Link Antenna(1) 10.67 ft / 3253 mm
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 9.17 ft / 2792 mm
Dimensions - XW VPAT
Ground Clearance 16 in / 406 mm
Ground Pressure (ISO 16754)(3) 6.92 psi / 47.7 kPa
Length - Basic Tractor(2) 16.42 ft / 5002 mm
Length - Track on Ground 10.67 ft / 3245 mm
Machine Height - To Product Link Antenna(1) 10.83 ft / 3303 mm
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.
Note (3) (3) All dimensions above with Heavy Duty undercarriage. XL and XW with SU blade, LGP with S blade with no rear attachments unless otherwise specified and calculated per ISO 16754.
Width - Tractor - Without Trunnions - Standard Track 9.83 ft / 2996 mm
Product Specifications
Note (1) (1) Height measured from ground line. Add grouser height for total dimension on hard surfaces. When Cat GRADE with 3D antennas are installed, overall machine height increases by approximately 82 mm (3.2 in).
Note (2) (2) Add 218 mm (9 in) for drawbar. Add 1387 mm/1291 mm (4'7"/4'3") for ripper on short track roller frame and long track roller frame machines respectively.

Standard Equipment

  • Power Train
    • C9.3 ACERT diesel engine U.S. EPA Tier 4 Final certified engine with aftertreatment
    • Air cleaner, strata tube precleaner with dust ejection
    • Air filter with electronic service indicator
    • Aftercooler, air to air (ATAAC)
    • Coolant, extended life
    • Full Auto Shift
    • Fan, hydraulic
    • Final drives, single reduction planetary
    • Fuel priming pump, electric
    • Parking brake, electronic
    • Radiator, aluminum bar plate
    • Shift management - automatic directional and downshift controlled throttle, load compensated
    • Starting aid, ether, automatic
    • Torque divider, lock-up
    • Transmission, electronically controlled powershift, four speed
    • Turbocharger, wastegate
    • Fuel water separator
    • Ecology drain
  • Undercarriage
    • Carrier rollers
    • Clamp master link
    • Equalizer bar
    • Guards, end track guiding
    • Idlers, center tread
    • Rollers, lifetime lubricated
    • Track, lifetime lubricated
    • Track roller frames, tubular
    • Track adjusters, hydraulic
    • Sprocket rim segments, replaceable
  • Electrical
    • Alarm, backup
    • Alternator, brushless
    • Batteries, two maintenance free 12V (1400 cca)(24V system), heavy duty
    • Converter, two 10 amp 12V outlets
    • Connector, diagnostic
    • Starter, heavy duty, 24V
    • Horn, forward warning
    • Jacket water heater, 120V
    • Light, work, underhood
  • Operator Environment
    • Air conditioner, ROPS mounted
    • Armrest, adjustable
    • Cab, ROPS/FOPS, sound suppressed and pressurized
    • Cup holders
    • Decelerator and brake pedal
    • Electro-hydraulics implement and steering controls
    • 180 mm (7 in) full color LCD display: engine coolant, power train oil, and hydraulic oil temperature, fuel and DEF level and engine RPM/gear display, hours, time and slope indicate
    • Camera ready
    • Foot pads, dash
    • Heater
    • Hour meter, electronic
    • Mirror, rearview
    • Power train control module: throttle dial, electronic; manual shift mode switch; bi-directional shift dial
    • Radio, AM/FM
    • Seat, cloth, air-suspension
    • Seat belt, retractable 76 mm (3 in)
    • Wipers, two speed
    • Glove box
  • Technology
    • Cat GRADE with Slope Assist
    • Product Link
    • Stable blade
  • Other Standard Equipment
    • CD ROM parts book
    • Engine enclosures, perforated
    • Front pull device
    • Guards, hinged bottom
    • Ground level service center with remote electrical disconnect, secondary shutdown switch and hour meter
    • Hood, perforated
    • Hydraulics, independent steering, work tool and fan pumps
    • Hydrualics, load sensing, dozer lift and tilt
    • Mounting, lift cylinder
    • Oil cooler, hydraulic
    • Radiator doors, perforated, louvered, and hinged
    • SOS sampling ports
    • Vandalism protection for fluid compartments and battery box

Optional Equipment

  • Power Train
    • Final drive, XL, XL guarded
    • Final drive, XW, XW guarded
    • Final drive, XL VPAT
    • Final drive, LGP
    • Final drive, LGP guarded
    • Engine, thermal shield
    • Precleaner, with screen
    • Oil change system, high speed
  • Undercarriage
    • XL/XW Undercarriage Arrangements: SystemOne, Partial Guide; SystemOne, Full Guide; Heavy Duty; Heavy Duty, Partial Guide; Heavy Duty, Full Guide; Heavy Duty, Waste
    • LGP Undercarriage Arrangements: SystemOne, Partial Guide; SystemOne, Full Guide; Heavy Duty, Center Guide; Heavy Duty, Partial Guide; Heavy Duty, Full Guide; Heavy Duty, Waste
    • XL VPAT Undercarriage Arrangements: SystemOne, Partial Guide; SystemOne, Full Guide; Heavy Duty; Heavy Duty, Partial Guide; Heavy Duty, Full Guide; Heavy Duty, Waste
    • XW VPAT/LGP VPAT Undercarriage Arrangements: SystemOne, Partial Guide; SystemOne, Full Guide; Heavy Duty, Standard; Heavy Duty, Partial Guide; Heavy Duty, Full Guide; Heavy Duty, Waste
    • XW VPAT/LGP VPAT Undercarriage Arrangements: Heavy Duty - 560 mm (22 in) Moderate Service; 560 mm (22 in) Extreme Service; 610 mm (24 in) Moderate Service; 610 mm (24 in) Extreme Service; 610 mm (24 in) Extreme Service, Trapezoidal
    • XW VPAT/LGP VPAT Undercarriage Arrangements: SystemOne - 560 mm (22 in) Moderate Service; 560 mm (22 in) Extreme Service; 610 mm (24 in) Moderate Service; 610 mm (24 in) Extreme Service; 560 mm (22 in) Extreme Service, Center?Hole; 610 mm (24 in) Extreme Service, Center?Hole
    • Track Pairs (XW Tractor, 41 Section) - Heavy Duty: 610 mm (24 in) Moderate Service; 610 mm (24 in) Extreme Service; 610 mm (24 in) Extreme Service, Trapezoidal; 760 mm (30 in) Extreme Service; 760 mm (30 in) Extreme Service, Trapezoidal; 760 mm (30 in) Moderate Service
    • Track Pairs (XW Tractor, 41 Section) - SystemOne: 560 mm (22 in) Moderate Service; 610 mm (24 in) Moderate Service; 610 mm (24 in) Extreme Service; 760 mm (30 in) Moderate Service; 760 mm (30 in) Extreme Service; 710 mm (28 in) Moderate Service; 760 mm (30 in) Extreme Service, Center?Hole
    • Track Pairs (LGP Tractor, 45 Section) - Heavy Duty: 710 mm (28 in) Moderate Service; 760 mm (30 in) Extreme Service; 760 mm (30 in) Extreme Service, Trapezoidal; 915 mm (36 in) Moderate Service; 915 mm (36 in) Extreme Service, Trapezoidal; 1000 mm (39 in) Self-Clean
    • Track Pairs (LGP Tractor, 45 Section) - SystemOne: 915 mm (36 in) Moderate Service; 915 mm (36 in) Extreme Service; 760 mm (30 in) Extreme Service, Center?Hole; 915 mm (36 in) Extreme Service, Center?Hole
    • Track Pairs (XL VPAT Tractor, 41 Section) - Heavy Duty: 560 mm (22 in) Moderate Service; 560 mm (22 in) Extreme Service
    • Track Pairs (XL VPAT Tractor, 41 Section) - SystemOne: 560 mm (22 in) Moderate Service; 560 mm (22 in) Extreme Service; 610 mm (24 in) Extreme Service, Offset; 560 mm (22 in) Extreme Service Center?Hole
    • Track Pairs (XW VPAT Tractor, 45 Section) - Heavy Duty: 610 mm (24 in) Extreme Service; 610 mm (24 in) Extreme Service; 610 mm (24 in) Moderate Service; 710 mm (28 in) Moderate Service; 710 mm (28 in) Moderate Service, Trapezoidal; 710 mm (28 in) Extreme Service
    • Track Pairs (XW VPAT Tractor, 45 Section) - SystemOne: 610 mm (24 in) Extreme Service; 610 mm (24 in) Extreme Service, Center?Hole; 610 mm (24 in) Moderate Service; 710 mm (28 in) Moderate Service; 710 mm (28 in) Extreme Service
    • Track Pairs LGP VPAT Tractor, 45 Section) - Heavy Duty: 790 mm (31 in) Moderate Service, Offset
    • Track Pairs LGP VPAT Tractor, 45 Section) - SystemOne: 790 mm (31 in) Extreme Service, Offset; 790 mm (31 in) Moderate Service, Offset
  • Hydraulics
    • Fa, autoreversing
  • Rear Attachment Hydraulics and Controls
    • No rear hydraulics
    • Hydraulics, ripper
    • Controls, winch
    • Hydraulics, winch/ripper
    • Ripper tooth, curved
    • Ripper tooth, straight
  • Starters, Batteries and Alternators
    • Alternator, 150 amp, ducted
    • Engine coolant, Arctic (-50 degrees Celcius/-58 degrees Fahrenheight)
  • Electrical
    • Lights: Lighting Group (6-Basic); Lighting Group (10); Lighting Group (8-Sweeps); Lighting Group (6-Basic with Screen); Lighting Group (10-Premium with Screen)
    • Light, warning, strobe
    • Light, warning, strobe with plate
  • Operator Environment
    • Operator station
    • Cab, dual pane
    • Cab, single pane, screen ready
    • Air conditioner, ROPS
    • Seat, air suspension
    • Seat, cloth, heated
    • Seat, heated and ventilated
    • Radio, AM/FM
    • Visibility Arrangement, single camera
  • Technology Products
    • Machine control
    • Control, basic
    • AccuGrade Ready Option (ARO)
    • Cat GRADE with 3D
    • Product Link, Cellular PLE641
    • Product Link, Satellite PLE631
  • Safety and Security
    • Alarm, backup
    • Alarm, backup, guarded
    • Grab handles: Basic; Heavy Duty; Heavy Duty, sweeps; VPAT; Heavy Duty, VPAT; Sweeps; Screen, rear; Screens, side; Screens, door; Rear vision camera
  • Fuel Systems
    • Fuel tank, fast fill
  • Guards
    • Bottom guards
    • Guard, bottom, sealed, heavy duty
    • Guard, chassis
    • Guard, chassis, VPAT
    • Guard, fuel tank
    • Guard, fuel tank, fast fill
    • Guard, lights
    • Seal group, high debris
  • Attachments
    • Rear attachments
    • No rear attachment
    • Ripper, mult-shank
    • Winch package, standard speed
    • PA56 winch pakcage, slow speed
    • Drawbar, rigid short
    • Drawbar, rigid long
    • Striker bar box, rear
    • Striker bar box, rear with hydraulics
  • Other Attachments
    • Striker bars, front
    • Striker bar, rear
    • Fairlead, three rollers
    • Fourth roller
    • Counterweights: Additional, Rear, Rear slab
    • Hitch, front
    • Towing device, pull-hook
  • Field Installed Attachments
    • PA56 winch standard and installation arrangement
    • PA56 winch slow and installation arrangement
    • Fairlead, three rollers
    • Fourth roller
  • Bulldozer Installation Packages
    • 6SU XL
    • 6SU XL, guarded
    • 6A XL
    • 6A XL HD
    • 6SU XW
    • 6SU XW, guarded
    • 6A XW
    • 6S LGP
    • 6S LGP, guarded
    • 6A LGP
    • VPAT XL
    • VPAT XL, GRADE with 3D
    • VPAT XW/LGP
    • VPAT XW/LGP, GRADE with 3D
    • Lift cylinders
    • Standard, XL/XW or LGP
    • GRADE, XL/XW or LGP
  • Blades
    • 6SU XL ARO
    • 6SU XL Landfill
    • 6A XL
    • 6SU XW ARO
    • 6SU XW, Landfill
    • 6A XW
    • 6S LGP ARO
    • 6S LGP, Landfill
    • 6A LGP
  • Special Arrangements
    • Waste Handling Arrangement
    • Forestry Arrangement
Contact Us
x

We're here to help

We'll do our best to get back to you as soon as possible.
