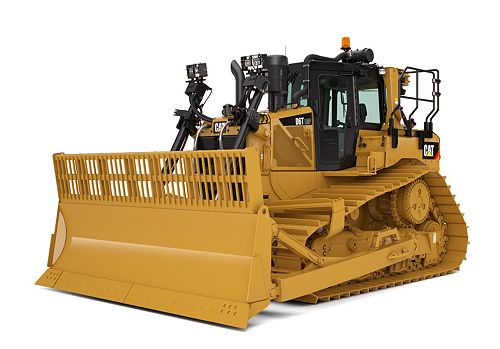

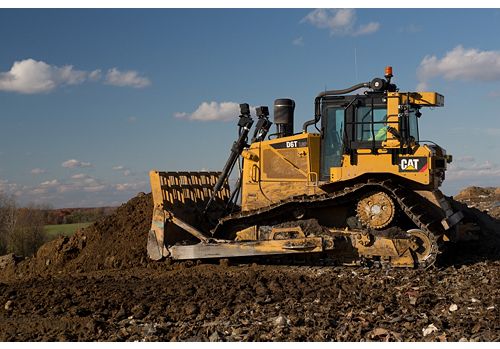

D6T WH
- Flywheel Power
- 245 hp / 183 kW
- Operating Weight
- 56063 lb / 25430 kg
- Displacement
- 567.5 in³ / 9.3 l

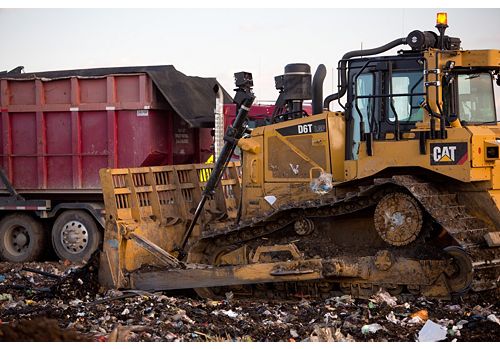

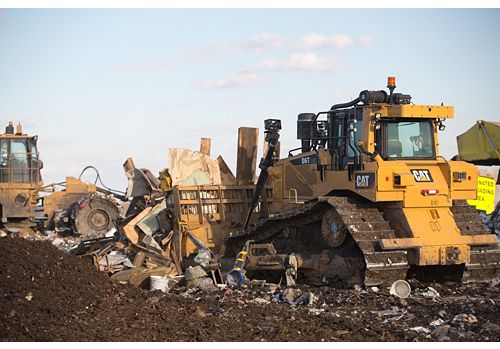

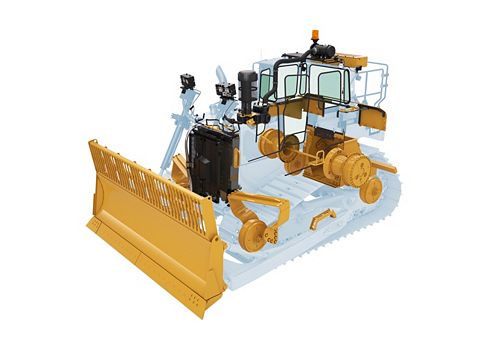

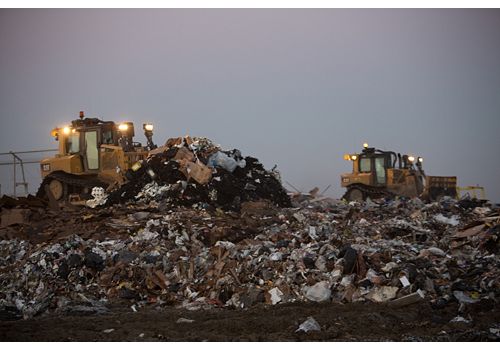

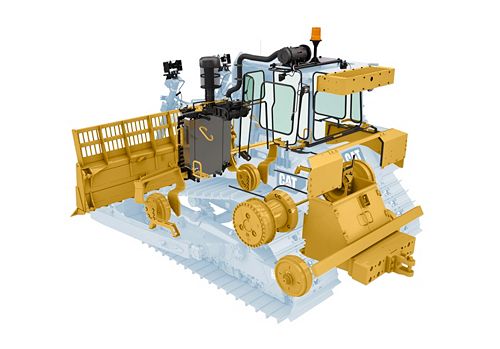

The new D6T dozer makes high efficiency dozing easy. A smooth-shifting, fully automatic four-speed Cat® transmission continuously optimizes the power train for the application. You save a significant amount of fuel and operator effort, without sacrificing durability, power or productivity. Specialized guarding and durability features are designed and factory installed to take on the demands of waste applications.
| Engine | |
|---|---|
| Engine Model | Cat C9.3 ACERT™ |
| Flywheel Power | 245 hp / 183 kW |
| Displacement | 567.5 in³ / 9.3 l |
| Note (2) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Net Power - 2,200 rpm - ISO 9249/SAE J1349 | 215 hp / 161 kW |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final |
| Net Power - 2,200 rpm - ISO 9249/SAE J1349 (DIN) | 218 hp / 161 kW |
| Note (1) | All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with ULSD (15 ppm [mg/kg] sulfur or less). B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Net Power - Maximum - ISO 9249/SAE J1349 (DIN) at 1,200 rpm | 248 hp / 183 kW |
| Build Number | 19 |
| Net Power - Maximum - ISO 9249/SAE J1349 at 1,200 rpm | 245 hp / 183 kW |
| Note (3) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
| Weights | |
|---|---|
| Operating Weight | 56063 lb / 25430 kg |
| Operating Weights | |
|---|---|
| LGP VPAT | 59204 lb / 26855 kg |
| Note | Operating Weight – ISO 16754 |
| XW SU | 53423 lb / 24232 kg |
| XW VPAT | 58723 lb / 26636 kg |
| XL SU | 51652 lb / 23429 kg |
| LGP S | 56063 lb / 25430 kg |
| Dimensions | |
|---|---|
| XW - Ground Pressure - ISO 16754 | 7.26 psi / 50.1 kPa |
| XL - Ground Pressure - ISO 16754 | 9.52 psi / 65.6 kPa |
| LGP - Ground Pressure (ISO 16754) | 5.57 psi / 38.4 kPa |
| XW - Machine Height to Top of Precleaner | 11.42 ft / 3.47 m |
| XW - Width of Tractor - Without Trunnions | 9.17 ft / 2792 mm |
| LGP - Ground Clearance | 16 in / 406 mm |
| Note (2) | Add if blade is installed: SU 1068 mm (3 ft 6 in); XL A 1007 mm (3 ft 4 in); XW A 1068 mm (3 ft 6 in); LGP A 1305 mm (4 ft 4 in); VPAT 420 mm (1 ft 5 in). Dimension to subtract if striker box is not installed: XL = 727 mm (29 in); LGP = 709 mm (28 in). |
| LGP - Length of Basic Tractor with Striker Bars | 17.25 ft / 5.26 m |
| LGP - Length of Track on Ground | 10.67 ft / 3245 mm |
| LGP VPAT - Ground Pressure (ISO 16754) | 6.81 psi / 47 kPa |
| XL - Length of Basic Tractor with Striker Bars | 16.25 ft / 4.96 m |
| LGP - Width of Tractor without Trunnions | 10.5 ft / 3201 mm |
| XW VPAT - Length of Track on Ground | 10.67 ft / 3245 mm |
| XW VPAT - Machine Height to Top of Precleaner | 11.58 ft / 3.53 m |
| Note (1) | Add 653 mm (25.7 in)/615 mm (24.2 in) for ripper on short track roller frame and long track roller frame machines respectively. |
| XW VPAT - Ground Pressure - ISO 16754 | 7.5 psi / 51.7 kPa |
| XL - Width of Tractor - Without Trunnions | 8 ft / 2440 mm |
| LGP VPAT - Machine Height to Top of Precleaner | 11.58 ft / 3.53 m |
| XW - Length of Track on Ground | 9.25 ft / 2814 mm |
| XW VPAT - Width of Tractor - Without Trunnions | 9.83 ft / 2996 mm |
| XL - Ground Clearance | 15 in / 375 mm |
| XL - Length of Track on Ground | 9.25 ft / 2814 mm |
| LGP VPAT - Width of Tractor without Trunnions | 10.33 ft / 3143 mm |
| XW VPAT - Length of Basic Tractor with Striker Bars | 19.08 ft / 5.82 m |
| XW - Ground Clearance | 15 in / 375 mm |
| XW VPAT - Ground Clearance | 16 in / 406 mm |
| LGP VPAT - Length of Track on Ground | 10.67 ft / 3245 mm |
| LGP VPAT - Ground Clearance | 16 in / 406 mm |
| XW - Length of Basic Tractor with Striker Bars | 16.25 ft / 4.96 m |
| XL - Machine Height to Top of Precleaner | 11.42 ft / 3.47 m |
| LGP - Machine Height to Top of Precleaner | 11.58 ft / 3.53 m |
| LGP VPAT - Length of Basic Tractor with Striker Bars | 19.08 ft / 5.82 m |
| Landfill Blades - Capacity | |
|---|---|
| 6S LGP Landfill | 12.33 yd³ / 9.43 m³ |
| 6 SU - XW Landfill | 15.84 yd³ / 12.11 m³ |
| 6 SU - XL Landfill | 14.4 yd³ / 11.01 m³ |
| Landfill Blades - Width | |
|---|---|
| 6 SU - XW Landfill | 11.7 ft / 3560 mm |
| 6S LGP Landfill | 13.3 ft / 4063 mm |
| 6 SU - XL Landfill | 10.7 ft / 3260 mm |
| Features | |
|---|---|
| Note | For complete machine features and available configurations, please consult your Cat dealer or visit www.cat.com. |
