992

Net Power
814 HP / 607 kW
Operating Weight
233430 lb / 105882 kg
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard
900 HP / 671 kW

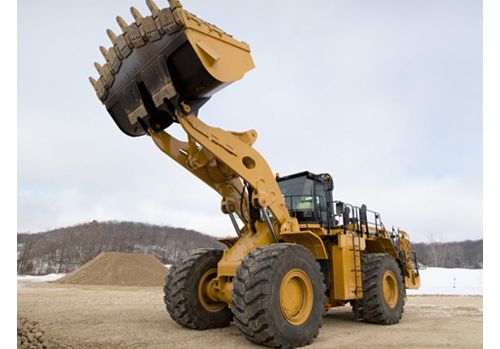

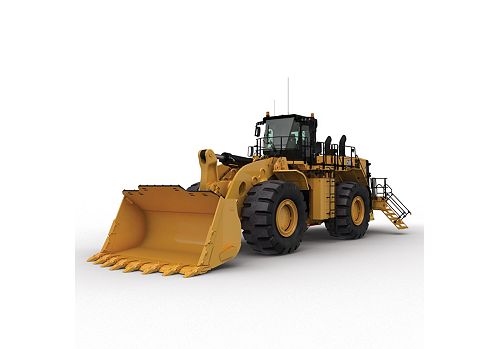

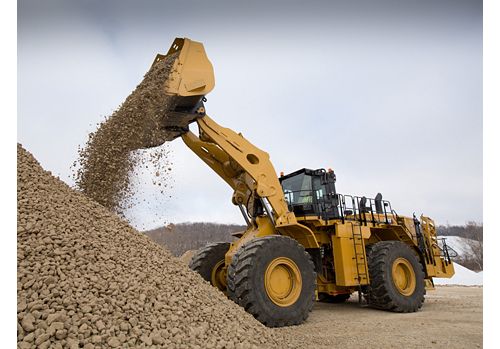

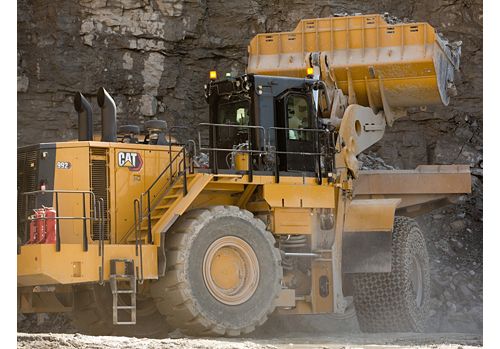

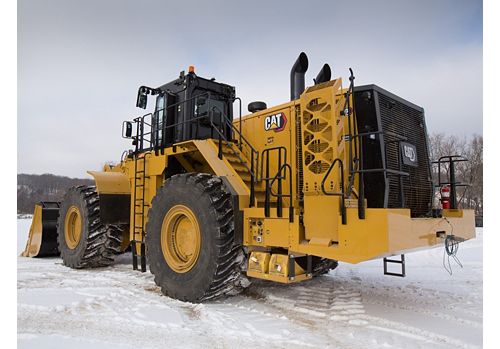

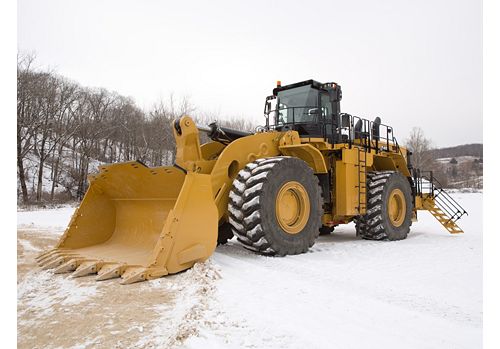

The Cat® 992 Large Wheel Loader has set the standard in its size class for more than 50 years, delivering industry-leading productivity, unparalleled reliability and long life. Today’s 992 raises the bar. Compared to the 992K, the new 992 is up to 48% more efficient and 32% more productive, thanks to higher payload for improved pass match, increases in rimpull and breakout force, and an optimized linkage design. Extended component replacement intervals plus increased filter and turbo life help reduce maintenance costs. These improvements — and many more — combine to provide significant savings over the life of the machine for the lowest owning and operating costs in the industry. With both standard and high-lift configurations, the 992 offers the ideal pass match for fleets of Cat 775, 777 and 785 trucks.

Loan Calculator Credit Application
Build & Quote
alt 1
992 Technical Specifications 992 Large Wheel Loaders Key Features Brochure 992 Brochure 992 Poster 992 USP
Engine
Net Power 814 HP / 607 kW
Engine Model Cat® C32B
Emissions U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed 1750 rpm
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard 900 HP / 671 kW
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient 937 HP / 699 kW
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard 907 HP / 676 kW
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient 944 HP / 704 kW
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard 884 HP / 659 kW
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient 921 HP / 687 kW
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard 893 HP / 666 kW
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient 931 HP / 694 kW
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard 814 HP / 607 kW
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient 814 HP / 607 kW
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard 823 HP / 614 kW
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient 823 HP / 614 kW
Bore 5.7 in / 145 mm
Stroke 6.4 in / 162 mm
Displacement 1963.5 in³ / 32.1 l
Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm 3514 ft·lbf / 4765 N·m
Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm 3555 ft·lbf / 4820 N·m
Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm 3537 ft·lbf / 4796 N·m
Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm 3570 ft·lbf / 4841 N·m
Operating Specifications
Operating Weight 233430 lb / 105882 kg
Rated Payload - Standard 25.5 ton (US) / 23.1 t
Rated Payload - Standard (Material Handler) 30 ton (US) / 27.2 t
Rated Payload - High Lift 22.5 ton (US) / 20.4 t
Rated Payload - High Lift (Material Handler) 27 ton (US) / 24.5 t
Bucket Capacity Range 11.5-24.5 m³ (15-32 yd³)
Cat Truck Match - Standard 775/777
Cat Truck Match - High Lift 785
Buckets
Bucket Capacities 11.5-24.5 m³ (15-32 yd³)
Transmission
Transmission Type Cat Planetary Powershift
Forward - 1 4.3 mile/h / 7 km/h
Forward - 2 7.4 mile/h / 11.9 km/h
Forward - 3 12.7 mile/h / 20.5 km/h
Direct Drive - Forward 1 Disabled
Direct Drive - Forward 2 8 mile/h / 12.9 km/h
Direct Drive - Forward 3 14 mile/h / 22.6 km/h
Reverse - 1 4.7 mile/h / 7.5 km/h
Reverse - 2 8.1 mile/h / 13 km/h
Reverse - 3 13.9 mile/h / 22.4 km/h
Direct Drive - Reverse 1 5 mile/h / 8 km/h
Direct Drive - Reverse 2 8.8 mile/h / 14.2 km/h
Direct Drive - Reverse 3 15.3 mile/h / 24.7 km/h
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit Positive Flow Control
Lift/Tilt System - Pump Variable Displacement Piston
Maximum Flow at 2,165 rpm 250 gal/min / 950 l/min
Relief Valve Setting - Lift/Tilt 5000 psi / 34500 kPa
Lift Cylinder - Bore 9.3 in / 235 mm
Lift Cylinder - Stroke 63.5 in / 1613 mm
Tilt Cylinder - Bore 11.5 in / 292 mm
Tilt Cylinder - Stroke 41.5 in / 1055 mm
Hydraulic Cycle Times
Rack Back 2.3 s
Rack Back - High Lift 2.3 s
Raise 9 s
Raise - High Lift 9 s
Dump 2.6 s
Dump - High Lift 2.6 s
Float Down 3.2 s
Float Down - High Lift 3.2 s
Total Hydraulic Cycle Time 17.1 s
Service Refill Capacities
Fuel Tank 385.7 gal (US) / 1460 l
Cooling Systems 59.4 gal (US) / 225 l
Crankcase 31.7 gal (US) / 120 l
Transmission 51.5 gal (US) / 195 l
Differential - Final Drives - Front 96.4 gal (US) / 365 l
Differential - Final Drives - Rear 96.4 gal (US) / 365 l
Hydraulic System Factory Fill (Implement) 104.1 gal (US) / 394 l
Hydraulic Tank - Implement 60.2 gal (US) / 228 l
Hydraulic Factory Fill (Steering) 32.5 gal (US) / 123 l
Hydraulic Tank (Steering Tank Only) 26.3 gal (US) / 99.5 l
Axles
Front Fixed
Rear Trunnion
Oscillation Angle ±9°
Brakes
Brakes ISO 3450:2011
Hydraulic System - Steering
Steering System - Circuit Pilot, Load Sensing
Steering System - Pump Piston, Variable Displacement
Maximum Flow at 1,400-1,850 rpm 70 gal/min / 265 l/min
Steering Cut Off Pressure 4500 psi / 31000 kPa
Total Steering Angle 80°
Steering Cycle Times - Low Idle 4.9 s
Steering Cycle Times - High Idle 3.1 s
Cooling System
Ambient Capability Hydraulically Driven Demand Fan - Standard 109.4 °F / 43 °C
Ambient Capability, Hydraulically Driven Demand Fan - High 131 °F / 55 °C
Sound Performance - Standard
Note Machine Sound Level (ISO 6396:2008) - 116 dB(A)
Sound Performance - Suppression
Note Machine Sound Level (ISO 6396:2008) - 113 dB(A)
Dimensions - Standard Lift - Approximate
Ground to Top of Exhaust Stacks 17 ft / 5169 mm
Ground to Top of ROPS 18.3 ft / 5571 mm
Ground to Top of Hood 13.1 ft / 3983 mm
Ground to Center of Front Axle 4.3 ft / 1308 mm
Ground to Bumper Clearance 3.8 ft / 1145 mm
Ground to Lower Hitch Clearance 2.2 ft / 666 mm
Reach - Maximum Lift 8.2 ft / 2503 mm
Clearance at Maximum Lift 15.2 ft / 4630 mm
B-Pin Height - Maximum Lift 22.8 ft / 6948 mm
Maximum Overall Height - Bucket Raised 30.8 ft / 9390 mm
Rear Axle - Centerline to Bumper 13.5 ft / 4119 mm
Tread Width 10.83 ft / 3302 mm
Rack Back Angle - Maximum Lift 56.9 degrees
Dump Angle at Maximum Lift -49.5 degrees
Rack Back Angle - Ground Level 40.2 degrees
Width - Over Tires - With Bulge 14.74 ft / 4493 mm
Wheel Base 19.3 ft / 5890 mm
Rack Back Angle - Carry 48.9 degrees
Maximum Overall Length 50.8 ft / 15489 mm
Front Axle Centerline to Bucket Tip 18 ft / 5480 mm
Dimensions - High Lift - Approximate
Tread Width 10.83 ft / 3302 mm
Rack Back Angle - Ground Level 42.5 degrees
Dump Angle at Maximum Lift -48.1 degrees
Rack Back Angle - Maximum Lift 56.2 degrees
Width - Over Tires - With Bulge 14.75 ft / 4495 mm
Rack Back Angle - Carry 51.6 degrees
Ground to Top of Exhaust Stacks 17 ft / 5169 mm
Ground to Top of ROPS 18.3 ft / 5571 mm
Ground to Top of Hood 13.1 ft / 3983 mm
Ground to Center of Front Axle 4.3 ft / 1308 mm
Ground to Bumper Clearance 3.8 ft / 1145 mm
Ground to Lower Hitch Clearance 2.2 ft / 666 mm
Reach - Maximum Lift 7.6 ft / 2319 mm
Clearance at Maximum Lift 17.2 ft / 5256 mm
B-Pin Height - Maximum Lift 24.5 ft / 7465 mm
Maximum Overall Height - Bucket Raised 32 ft / 9759 mm
Rear Axle - Centerline to Bumper 13.5 ft / 4119 mm
Wheel Base 19.3 ft / 5890 mm
Maximum Overall Length 51.6 ft / 15733 mm
Front Axle Centerline to Bucket Tip 18.8 ft / 5724 mm

Standard Equipment

  • POWER TRAIN
    • Engine, C32B
    • Fuel priming pump (electric)
    • Ground-level engine shutdown
    • Engine air intake (above hood) precleaner
    • Aluminum Modular Radiator (AMR)
    • Automatic, ether starting aid
    • Electronic throttle lock
    • Impeller Clutch Torque Converter (ICTC) with lock-up clutch
    • Rimpull control system
    • Planetary powershift, 3F/3R electronic control transmission
    • Delayed engine shutdown
    • Oil-cooled, multi-disc, service brakes
    • Electro-hydraulic parking brake
    • Auto retarding controls
    • Brake temp estimator
    • Autoshift
  • LINKAGE
    • Standard lift (23 tonnes/25.5 tons face, 27.2 tonnes/30 tons loose)
  • EFFICIENCY
    • Variable displacement implement pumps
    • Variable displacement load-sensing steering
    • Variable displacement cooling fan pump
    • Torque converter lock-up clutch
    • Bucket float
    • Automatic bucket controls:
      – Lift kickout
      – Return-to-dig kickout
    • Default on-demand throttle (economy mode) with HP+ mode button
    • Engine idle shutdown
  • ELECTRICAL AND LIGHTING
    • 150-amp alternator
    • Four 1400 CCA batteries
    • 10/15 amp, 24V to 12V converter
    • Battery – single pole (master disconnect) isolator
    • Emergency jump-start receptacle
    • Starter and transmission lockout in bumper
    • 24V starting and charging system
    • Electric starters
    • Live line indicators in service center
    • LED warning lights (pattern selectable)
    • LED lighting system:
      – Two front- and rear-mounted LED turn signals
      – Four forward-facing running lights
      – Three forward-facing flood lights
      – Four platform-mounted flood lights
      – Two forward-facing high beams
      – Four rear-facing floods
      – Four stairway lights
      – Two engine bay service lights
  • OPERATOR ENVIRONMENT
    • Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
    • Bonded glass, tinted
    • Trainer seat
    • Dual-lever lift and tilt function controls
    • Implement kickouts
    • Air conditioner
    • Cab pressure indicator
    • Graphical touchscreen information display conveys real-time operating information and payload measurement
    • Heater, defroster, auto temperature controls
    • Gauge instrumentation with configurable widgets:
      – Status indicators
      – Wheel rev counter
      – Simplified payload
      – TPMS (optional)
      – Bucket angle
      – Coolant temperature
      – Hydraulic oil temperature
      – Fuel level
      – Power train oil temperature
      – Engine speed (tachometer)
      – Transmission gear
      – Ground speed
      – Engine hour meter
    • Powered cab precleaner
    • Operator presence status
    • Starting/charging system malfunction
    • Electronic OMM
    • Operator controls help
    • Two USB charging ports
    • CB mounting, 12V/24V power and antenna
    • 14-pin service port
    • 12V power
    • Selectable application profiles
    • Entertainment radio mute
    • Push-To-Start (PTS)
    • Warning/indicator instrumentation
    • Keypad control with indicator lights
    • Dome light in cab
    • Lunchbox and beverage holders
    • Electro-hydraulic force feedback steering
    • Vital Information Management System (VIMS™) with information display: external data port, cycle timer
    • Coat hook
  • SAFETY
    • Ground-access ladders
    • Rear-vision camera
    • Front walkway around cab
    • Tie-offs on ROPS
    • Steering frame lock
    • Stairways on both sides of the machine
    • Platform toe kicks
    • Retractable seatbelt, operator and trainer seat
    • Back-up alarm
    • Electric disc horns
    • Implement lock switch
    • Seatbelt warning
    • Entertainment radio mute
  • MACHINE CONTROL AND GUIDANCE
    • MineStar Health ready
      MineStar GUIDE ready
      MineStar Edge ready
  • COOLING
    • Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])
  • SERVICE
    • Ground-level service center including:
      – Implement and cooling fan oil level indicator
      – Steering and brake oil level indicator
      – Window washer fluid level indicator
      – Transmission oil level indicator
      – Fuel level indicator
      – Engine oil level indicator
      – Engine coolant level indicator
      – Automatic lubrication system grease tank level indicator
      – Starter lockout and LED
      – Heavy-duty battery disconnect switch
      – Stairway light switch
      – Service lighting switch (if equipped)
      – Fuel shutoff engine shutdown switch
      – Engine oil fast-fill port
      – Transmission oil fast-fill port
      – Steering and brake hydraulic oil fast-fill port
      – Steering and brake hydraulic oil drain port
      – Engine coolant fast-fill port
      – Implement and cooling fan hydraulic oil fast-fill port
      – Implement and cooling fan hydraulic oil drain port
      – Automatic lubrication system grease tank fill port
      – 24V jump-start receptacle
      – 12V power port
      – 120V jacket water plug (if equipped)
      – 240V jacket water plug (if equipped)
      – VIMS key switch
      – 14-pin service port
      – Transmission lockout and LED
    • In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
    • High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
    • Implement pump efficiency monitoring
    • Rock guards on linkage grease lines
    • Cat O-ring face seal couplings
    • Lockable service access doors
    • Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
    • Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
    • Ground-level fast-fill fuel system
    • Drawbar hitch with pin
    • Cat XT™ hoses
    • Left-side service center
    • Oil sampling valves
    • Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
    • Rear access to cab and service platform
    • Load-sensing steering
    • Vandalism protection caplocks
    • Cooling cleanout service access
    • Telematics and Cat Electronic Technician service port in bumper
    • Automatic Autolube filling shutoff valve

Optional Equipment

  • POWER TRAIN
    • Advanced auto retarding controls with engine brake
  • LINKAGE
    • High lift (20.5 tonnes/22.5 tons face, 24.5 tonnes/27 tons loose)
  • ELECTRICAL AND LIGHTING
    • Dual pole battery isolator
    • Six service lights
    • Two hitch-mounted lights
  • OPERATOR ENVIRONMENT
    • Rubber-mounted, high-impact resistant solar control glass
    • Trainer seat with suspension
    • Joystick lift and tilt function controls
    • Bluetooth®-enabled machine security
    • Sun screen, pull down (front and rear)
    • AM/FM/AUX radio
    • AM/FM/AUX/USB/BT/CD/SAT radio
  • SAFETY
    • Powered ground-access stairs
    • Side-vision cameras (270 degree)
    • Cat Detect (rear object detection)
    • Wheel chocks
    • Secondary steering
    • Electric trumpet field horn plus electric shop horn
    • Fire suppression ready (tank mounting provision and provision for integration with machine electronics for monitoring faults or activation)
    • Emergency stop system
  • COLD WEATHER
    • Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])
    • 120V or 240V coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
    • Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
    • Heated mirrors
  • MACHINE CONTROL AND GUIDANCE
    • Cat Payload with Overload Prevention
    • New Autodig Components:
      – Tire slip prevention
      – Lift stall prevention
      – Tire set
    • Operator coaching
  • COOLING
    • High ambient package (recommended for site conditions that do not exceed 55° C [131° F])
  • RIMS AND TIRES
    • Rims – 914.4 mm (36") (36 × 45)
      113.3 mm (4.5") flange
      For use with 45/65R45 and 45/65-45 tires
      Tires – 45/65R45
      Tires – 45/65-45
  • SPARE RIMS
    • 914.4 mm (36") (36 × 45) (4.5") flange
  • SERVICE
    • Transmission and engine guards
    • Diagnostic lines for easy troubleshooting access
    • Product Link™ cellular
    • Product Link (dual mode – satellite/cellular)
  • SOUND
    • Sound-suppression package
  • LOAD AND CARRY OR EXTENSIVE TRAMMING
    • Ride control

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Cat Detect — Object Detection

Health

Health records information on critical machine parameters fleet-wide. Data is available in real-time or historical database. Linked with on-board monitoring systems, Health provides wireless or wired transfer of this critical data to the service center for processing and review. Health may also be integrated into a production database for expanded analysis.

Model
Cat Health

Fleet

Fleet is a fully integrated mine monitoring and management system that uses technology to improve productivity and maximize commodity value. Real-time interaction with mobile field equipment allows mine management to improve machine utilization, track material movement and monitor daily production against plan. Fleet is fully scalable to accommodate a growing fleet of machines or the need for additional capability and functionality.

Model
Cat Fleet for Surface
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.

This website uses cookies and other tracking technologies to enhance user experience and analyze our site performance and traffic. Further information is available in our Privacy Policy

Close & Accept
