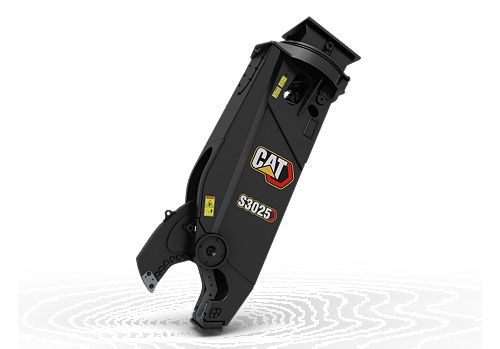

S3025 Rotating Scrap & Demolition Shear

Weight - Boom Mount
5370 lb / 2436 kg
Weight - Stick Mount
5117 lb / 2321 kg
Length
126 in / 3188 mm

Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.

Loan Calculator Credit Application
Build & Quote
alt 1
Scrap and Demolition Shears - Key Features and Benefits Scrap and Demolition Shears - Technical Specifications
Product Specifications
Weight - Boom Mount 5370 lb / 2436 kg
Weight - Stick Mount 5117 lb / 2321 kg
Length 126 in / 3188 mm
Height 48 in / 1220 mm
Width 29.5 in / 750 mm
Jaw Width - Fixed 14.7 in / 374 mm
Jaw Width - Moving 4.4 in / 111.5 mm
Jaw Opening 18 in / 458 mm
Jaw Depth 16.3 in / 415 mm
Throat Force 441 ton-f / 3920 kN
Apex Force 201 ton-f / 1787 kN
Tip Force 110 ton-f / 980 kN
Cutting Circuit - Maximum Relief Pressure 5075 psi / 35000 kPa
Cutting Circuit - Maximum Flow 46 gpm / 175 L/min
Rotation Circuit - Maximum Relief Pressure 2030 psi / 14000 kPa
Rotation Circuit - Maximum Flow 11 gpm / 40 L/min
Stick Mounted - Maximum 25 tons
Stick Mounted - Minimum 20 tons
Boom Mounted - Maximum 15 tons
Boom Mounted - Minimum 11 tons
Cycle Time - Close 2.6 Seconds

Demolition Excavators

Cat® demolition excavators deliver the high reach, exceptional stability, and precision customers require with the comfort and control operators expect. Engineered for demanding teardowns, they feature powerful hydraulics, reinforced structures, and advanced technology for safe, efficient operation. Spacious cabs, intuitive controls, and versatile attachments keep operators productive on jobs of any scale, anywhere in the world.

Model Operating Weight Maximum Pin Height at Stick Nose Maximum Weight at Stick Nose
330 UHD 101400 lb / 46000 kg 66.8 ft / 20350 mm 7300 lb / 3300 kg

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum Maximum Travel Speed
M320 174 hp / 129 kW 46740 lb / 21200 kg 21.7 mile/h / 35 km/h

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
323 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
326 201 hp / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 273 hp / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
335 273 hp / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
320 GC 146 hp / 109 kW 48500 lb / 22000 kg 22 ft / 6720 mm
330 GC 201 hp / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
325 172 hp / 128.5 kW 62600 lb / 28400 kg 22 ft / 6700 mm
