330 UHD

Operating Weight: 101400 lb / 46000 kg
Maximum Pin Height at Stick Nose: 66.8 ft / 20350 mm
Maximum Weight at Stick Nose: 7300 lb / 3300 kg

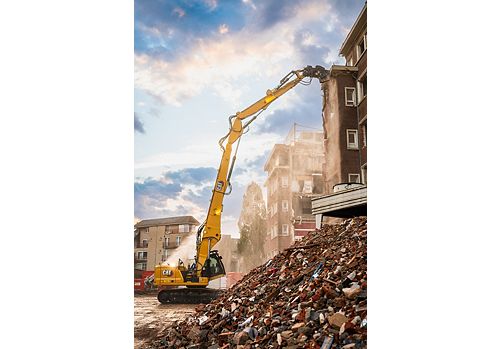

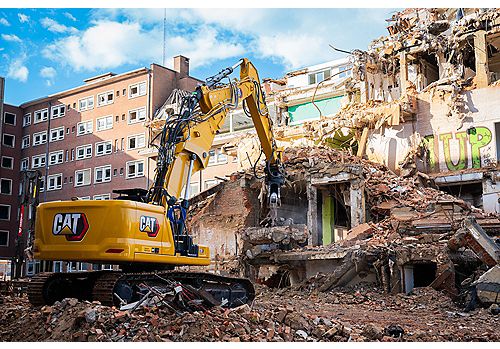

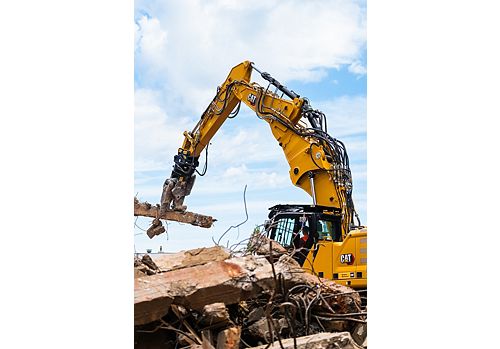

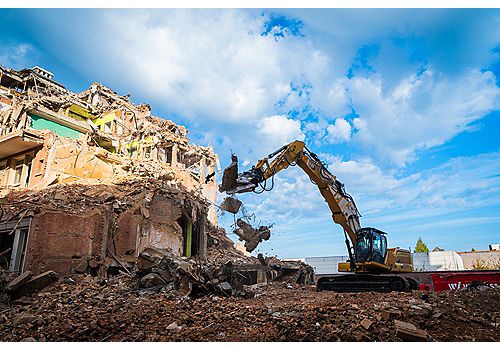

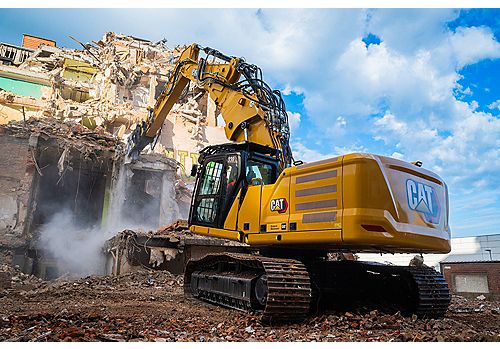

The Cat® 330 UHD is a versatile urban demolition machine with large attachment capability for 5-6 story work. Equipped with the latest technology and stability monitoring system for ultra-high demolition work, this 46-ton working machine maintains efficiency with the retrofit boom, using Cat Payload measurement and Cat 2D Grade. Combined with the 15-minute boom swap, the hydraulic variable undercarriage makes the setup fast and gives operators more uptime.

Loan Calculator Credit Application

Build & Quote

Demolition Excavators (08D) Family Brochure (Europe, N Am, Japan) 330 UHD (07A) Excavator - Technical Specifications (Europe, Japan) Cat Technologies for Excavators

Specifications
Equipment
Related Products

Engine
Engine Model	Cat C7.1
Net Power - ISO 9249	273 hp / 203.7 kW
Net Power - ISO 9249 (DIN)	277 hp (metric)
Engine Power - ISO 14396	275 hp / 205 kW
Engine Power - ISO 14396 (DIN)	279 hp (metric)
Bore	4 in / 105 mm
Stroke	5 in / 135 mm
Displacement	428 in³ / 7.01 l
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System
Main System - Maximum Flow	560 l/min (148 gal/min)
Maximum Pressure - Equipment	5076 psi / 35000 kPa
Maximum Pressure - Equipment - Lift Mode	5511 psi / 38000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa
Maximum Pressure - Swing	4322 psi / 29800 kPa

Swing Mechanism - UHD Fronts
Swing Speed	4.09 r/min

Swing Mechanism
Swing Speed	9.63 r/min
Maximum Swing Torque	81130 lbf·ft / 110 kN·m

Weights
Operating Weight	101400 lb / 46000 kg
Note (1)	Hydraulic Variable Gauge undercarriage, 20 m (65'7") UHD C front, 600 mm (24") triple grouser shoes, and 8.8 mt (19,400 lb) counterweight.
Machine Weight - Retrofit Configuration	96800 lb / 43900 kg
Note (2)	Hydraulic Variable Gauge Undercarriage, R3.2CB2 (10'6") retrofit boom front, 1.76 m³ HD (2.30 yd³) bucket, 600 mm (24") triple grouser shoes, and 8.8 mt (19,400 lb) counterweight.
UHD in Cradle	18050 lb / 8190 kg
Retrofit Boom in Cradle - R3.2CB2 Stick	10530 lb / 4780 kg
2-Piece Retrofit Boom In Cradle - R3.2CB2 Stick	14810 lb / 6720 kg

Service Refill Capacities
Fuel Tank Capacity	125.2 gal (US) / 474 l
Cooling System	6.6 gal (US) / 25 l
Engine Oil	25 gal (US) / 6.6 l
Swing Drive	2.8 gal (US) / 11 l
Final Drive - Each	1.7 gal (US) / 7 l
Hydraulic System - Including Tank	81.9 gal (US) / 310 l
Hydraulic Tank	38.8 gal (US) / 147 l
DEF Tank	10.8 gal (US) / 41 l

Dimensions
Note (1)	20 m (65'7") UHD Front
Shipping Height - Top of Cab	10.6 ft / 3230 mm
Cab Height - With OPG	11.3 ft / 3440 mm
Shipping Length	46.2 ft / 14070 mm
Tail Swing Radius	10.3 ft / 3130 mm
Counterweight Clearance	4.2 ft / 1270 mm
Ground Clearance	1.5 ft / 460 mm
Track Length	16.5 ft / 5020 mm
Track Length to Center of Rollers	13.3 ft / 4040 mm
Working Gauge - Extended Position	9.3 ft / 2820 mm
Shipping Gauge - Retracted Position	7.8 ft / 2390 mm
Transport Width	8.2 ft / 2500 mm
Machine Length - without Front, with Counterweight	28.3 ft / 8620 mm
Machine Length - without Front and Counterweight	6.8 ft / 2030 mm
Track Width - Extended	11.3 ft / 3420 mm
Track Width - Retracted	11.7 ft / 3520 mm
Note (2)	600 mm (24") Track Shoes

Working Ranges and Forces
Maximum Pin Height at Stick Nose	66.8 ft / 20350 mm
Maximum Weight at Stick Nose	7300 lb / 3300 kg
Maximum Working Pin Height at Stick Nose - 1/2	57.6 ft / 17560 mm
Maximum Working Reach at Stick Nose - 1/2	35.4 ft / 10800 mm
Maximum Height at Stick Nose in Max Reach Position	38.6 ft / 11750 mm
Maximum Reach at Stick Nose	43.7 ft / 13310 mm
Note (1)	20 m (65'7") UHD Front (Over-the-Front)

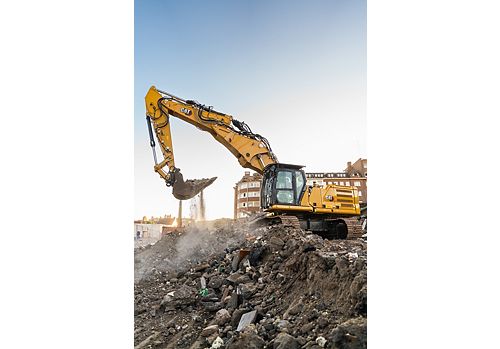

Working Ranges and Forces - Retrofit Boom - Straight
Note 1	6.8 m (22'4") Straight - R3.2CB2 (10'6") Stick (Over-the-Front) - HVG Undercarriage
Bucket	HD 1.76 m³ (2.30 yd³)
Maximum Pin Height at Stick Nose	36 ft / 10970 mm
Maximum Weight at Stick Nose	8400 lb / 3800 kg
Maximum Height at Stick Nose in Max Reach Position	6.7 ft / 2030 mm
Maximum Reach at Stick Nose	32.8 ft / 10020 mm
Maximum Digging Depth	18.5 ft / 5640 mm
Maximum Reach - Ground Level	37.7 ft / 11490 mm
Maximum Loading Height	30.6 ft / 9310 mm
Minimum Loading Height	12.7 ft / 3850 mm
Bucket Digging Force - ISO	40280 lbf / 179.2 kN
Stick Digging Force - ISO	28410 lbf / 126.4 kN

Working Ranges and Forces - Retrofit Boom - Bent
Note 1	Bent - R3.2CB2 (10'6") Stick - HVG Undercarriage
Bucket	HD 1.76 m³ (2.30 yd³)
Maximum Digging Depth	22.1 ft / 6740 mm
Maximum Reach - Ground Level	35.1 ft / 10690 mm
Maximum Cutting Height	32.8 ft / 10010 mm
Maximum Loading Height	23 ft / 7000 mm
Minimum Loading Height	8.5 ft / 2580 mm
Bucket Digging Force - ISO	40280 lbf / 179.2 kN
Stick Digging Force - ISO	28410 lbf / 126.4 kN

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.0 kg (2.2 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.9 kg (1.98 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.0 kg (2.2 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.9 kg (1.98 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.

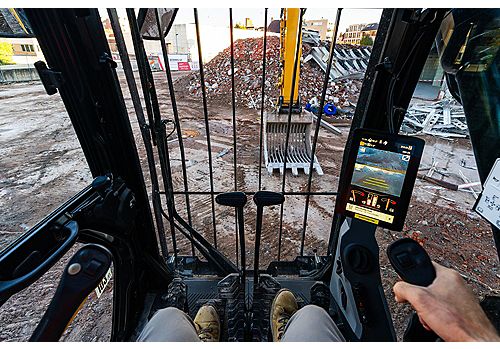

CAB

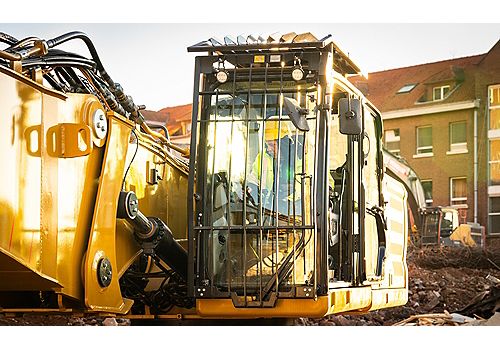

- Tilt-up demolition cab with P5A laminated front and roof glass
- High-resolution 254 mm (10") LCD touchscreen monitor
- Heated and cooled auto adjustable suspension seat
- Bluetooth® integrated radio
- Auto bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console
- Tilt-up left-side console
- Cat Stick Steer
- Auxiliary relay
- Tilt rocker switch
- Sky wiper switch
- LED interior lights
- Roller front sunscreen
- P5A fixed windshield
CAT TECHNOLOGY
- VisionLink™
- Remote Flash
- Remote Troubleshoot
- Stability monitoring system
- Electronic pitch and roll indicator
- Travel direction indicator
- Operator Coaching
- Electronic joystick pattern changer
- Cat Grade with 2D (Retrofit boom only)
- Cat Payload (Retrofit boom only)
ELECTRICAL SYSTEM
- Maintenance-free 1,000 CCA batteries
- Centralized electrical disconnect switch
- LED chassis light - 1,800 lumens
ENGINE
- Three selectable modes: Power, Smart, Eco
- Auto engine speed control
- Up to 4500 m (14,760 ft) altitude capability
- Reversing fan
- 52° C (126° F) high-ambient cooling
- Double element air filter with integrated pre-cleaner
- -18° C (0° F) cold start capability
- 115 Amp alternator
- Double element air filter with integrated pre-cleaner
HYDRAULIC SYSTEM
- Boom lowering check valve
- Stick lower check valve
- Electronic main control valve
- Heavy lift mode
- Auto hydraulic oil warmup
- Auto swing parking brake
- High performance hydraulic return filter
- Two-speed travel
- Bio hydraulic oil capability
SAFETY AND SECURITY
- 2D E-Fence (swing)
- Caterpillar One Key security system
- Lockable external tool/storage box
- Lockable door, fuel, and hydraulic tanks
- Lockable fuel drain compartment
- Lockable disconnect switch
- Service platform with anti-skid plate and countersunk bolts
- Rear and right-hand side cameras
- Operator Protective Guards (OPG)
SERVICE AND MAINTENANCE
- Integrated vehicle health management system
- Grouped location of engine oil and fuel filters
- Scheduled Oil Sampling (S·O·S?) ports
UNDERCARRIAGE AND STRUCTURES
- 8.8 mt (19,400 lb) counterweight
- Full-length track guiding guards
- Travel motor guard
- Bottom guard

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 20 m (65'7") UHD C front
- R3.2CB2 (10'6") Reach stick
- Two-piece retrofit variable adjustment boom
- 6.6 m (21'8") UHD stick
- R3.2CB2 (10'6") reach stick
- Advanced tool control, UHD
- Bucket linkage, Dedicated, B1 family linkage without lifting eye
- Bucket linkage, UHD dedicated, C family with lifting eye

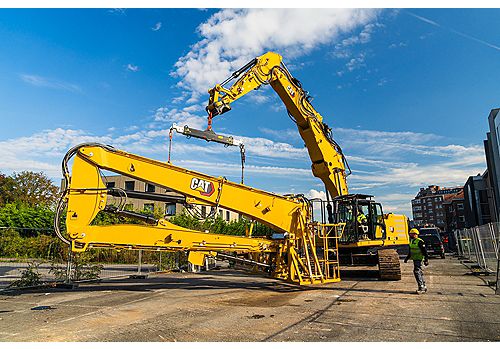

- Transport cradle for front
CAB
- Roller rear sunscreen
ELECTRICAL SYSTEM
- Premium surround lighting package
CAT TECHNOLOGY
- Cat Advanced Payload
ENGINE
- -32° C (-25° F) cold start capability
- Cold start block heaters
- Ether starting aid
HYDRAULIC SYSTEM
- Bio hydraulic oil capability
- SmartBoom™ with BLCV and overload warning device for UHD front
- Combined two-way auxiliary circuits
- High and medium-pressure auxiliary circuits
- Quick coupler circuit
SAFETY AND SECURITY
- Visibility mirror package
- 360° visibility
SERVICE AND MAINTENANCE
- QuickEvac™ maintenance ready
- Electric refueling pump with auto shutoff
UNDERCARRIAGE AND STRUCTURES
- Hydraulic Variable Gauge (HVG) undercarriage
- Long Narrow Fixed Gauge (FG) undercarriage
- 600 mm (24 in) triple grouser track shoes
- 700 mm (28 in) triple grouser track shoes

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™

Payload

Keep production targets on track using Cat® Payload technologies. On-the-go load weighing on excavators, loaders and trucks helps you hit precise load targets every time with reduced loading time. Track production right from the cab or remotely when combined with VisionLink technologies.

Model
Cat Payload for Excavators

GC Hammers

Cat® hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H130 GC S	350 to 700	5503 lb / 2496 kg	42 gpm / 160 L/min
H160 GC S	200 to 450	6688 lb / 3034 kg	50 gpm / 190 L/min

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H130 S	320 to 600	3850 lb / 1750 kg	32 gpm / 120 L/min
H140 S	325 to 540	5302 lb / 2410 kg	42 gpm / 160 L/min
H160 S	400 to 505	7106 lb / 3230 kg	58 gpm / 220 L/min

Secondary Pulverizer

Non-rotating hydraulic pulverizer reduces concrete and separates rebar.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P224 Secondary Pulverizer	1.9 s	1.3 s	409 Sh Ton / 3640 kN

Primary Pulverizers

Productive demolition and maximum up time with one point of support for your entire system.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P318 Primary Pulverizer	1.6 s	1 s	308 Sh Ton / 2740 kN
P324 Primary Pulverizer	1.8 s	1.2 s	446 Sh Ton / 3965 kN
P332 Primary Pulverizer	1.9 s	1.3 s	563 Sh Ton / 5010 kN

Multi-Processor with Demolition Jaws

Used to reduce any strength concrete, with and without rebar.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP318 Demolition Jaw	1.6 s	18 tons	1 s
MP324 Demolition Jaw	1.8 s	24 tons	1.2 s
MP332 Demolition Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Universal Jaws

Used for precision demolition, sectioning concrete and down-sizing concrete for crushers.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP318 Universal Jaw	1.6 s	18 tons	1 s
MP324 Universal Jaw	1.8 s	24 tons	1.2 s
MP332 Universal Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Pulverizer Jaws

Used to completely separate rebar from concrete and reduce concrete to the smallest size; also has great picking capability.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP318 Pulverizer Jaw	1.6 s	18 tons	1 s
MP324 Pulverizer Jaw	1.8 s	24 tons	1.2 s
MP332 Pulverizer Jaw	1.9 s	32 tons	1.3 s

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
Operator Coaching for Excavators

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Cycles/Minimum	Base Plate Width
CVP110	24669 lb / 110 kN	2200	34 in / 864 mm

Multi-Processor with Concrete Cutter Jaws

For demolition and cutting of concrete structures.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Concrete Cutter Jaw	1.8 s	24 tons	1.2 s
MP332 Concrete Cutter Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Shear Jaws

Used to reduce angle iron, channel iron, beams, pipe, rebar, cable and tires.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP318 Shear Jaw	1.6 s	18 tons	1 s
MP324 Shear Jaw	1.8 s	24 tons	1.2 s
MP332 Shear Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Tank Shear Jaws

Used to cut storage tanks and plate steel producing straight, smooth cuts.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Tank Shear	1.8 s	24 tons	1.2 s
