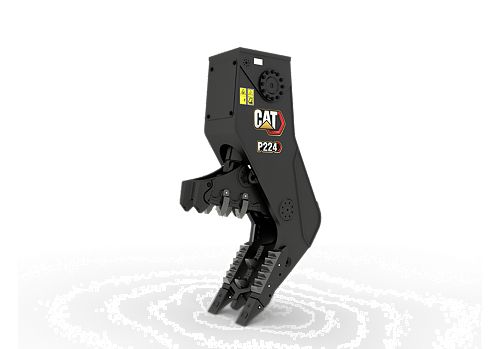

P224 Secondary Pulverizer

Cycle Time - Open
1.9 s
Cycle Time - Close
1.3 s
Crushing Force - Primary Cutter
409 Sh Ton / 3640 kN

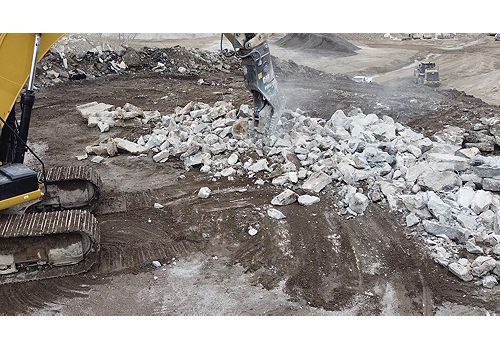

Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat Pulverizers - Product Brochure (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Cat Pulverizers - Key Features and Benefits (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Cat Pulverizers - Technical Specifications (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am)
Performance
Cycle Time - Open 1.9 s
Cycle Time - Close 1.3 s
Crushing Force - Primary Cutter 409 Sh Ton / 3640 kN
Crushing Force - Tip 129 Sh Ton / 1145 kN
Crushing Force - Primary Tooth 224 Sh Ton / 1990 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 4786 psi / 33000 kPa
Jaw Circuit - Max. Oil Flow 74 gal/min / 280 l/min
Dimensions - Jaw
Jaw Depth 33.3 in / 845 mm
Cutter Length 7.9 in / 200 mm
Jaw Opening - Maximum 46.3 in / 1175 mm
Jaw Width - Fixed 26 in / 660 mm
Jaw Width - Moveable 15 in / 380 mm
Dimensions - Housing + Jaw
Length 107.3 in / 2725 mm
Height 62.4 in / 1585 mm
Width 26 in / 660 mm
Weight
Weight - Housing, Jaw and Bracket 5952 lb / 2700 kg
Recommended Carrier Weight
Excavator Minimum 24000 kg (52900 lb)
Excavator Maximum 35000 kg (77200 lb)

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
336 - Tier 4 300 HP / 223.5 kW 81100 lb / 36800 kg 26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
323 - Tier 4 / Stage V 172 HP / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
326 - Tier 4 / Stage V 201 HP / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V 201 HP / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
330 - Tier 4 / Stage V 273 HP / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
335 - Tier 4 / Stage V 273 HP / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
