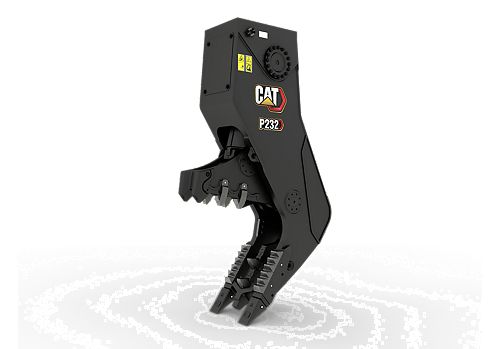

P232 Secondary Pulverizer

Cycle Time - Open
1.9 s
Cycle Time - Close
1.4 s
Crushing Force - Primary Cutter
479 Sh Ton / 4265 kN

Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat Pulverizers - Product Brochure (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Cat Pulverizers - Key Features and Benefits (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Cat Pulverizers - Technical Specifications (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am)
Performance
Cycle Time - Open 1.9 s
Cycle Time - Close 1.4 s
Crushing Force - Primary Cutter 479 Sh Ton / 4265 kN
Crushing Force - Tip 153 Sh Ton / 1360 kN
Crushing Force - Primary Tooth 252 Sh Ton / 2240 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 4786 psi / 33000 kPa
Jaw Circuit - Max. Oil Flow 95 gal/min / 360 l/min
Dimensions - Jaw
Jaw Depth 36.6 in / 930 mm
Cutter Length 7.9 in / 200 mm
Jaw Opening - Maximum 50.4 in / 1280 mm
Jaw Width - Fixed 26.4 in / 670 mm
Jaw Width - Moveable 15 in / 380 mm
Dimensions - Housing + Jaw
Length 117.9 in / 2995 mm
Height 69.1 in / 1755 mm
Width 26.4 in / 670 mm
Weight
Weight - Housing, Jaw and Bracket 7628 lb / 3460 kg
Recommended Carrier Weight
Excavator Minimum 32000 kg (70500 lb)
Excavator Maximum 50000 kg (110200 lb)

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
336 - Tier 4 300 HP / 223.5 kW 81100 lb / 36800 kg 26.11 ft / 8210 mm
340 - Tier 4 346 HP / 258.3 kW 83100 lb / 37700 kg 26.9 ft / 8210 mm
350 413 HP / 308 kW 105100 lb / 46000 kg 26.11 ft / 8210 mm
352 443 HP / 330 kW 107800 lb / 48900 kg 26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
330 GC - Tier 4 / Stage V 201 HP / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
330 - Tier 4 / Stage V 273 HP / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
