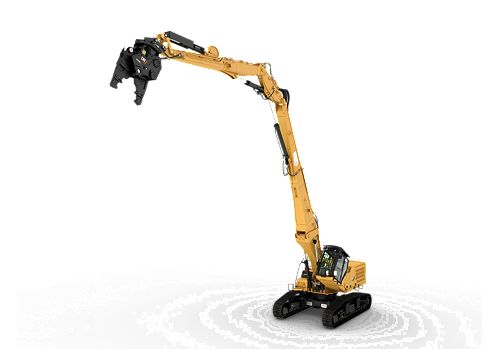

340 UHD

Operating Weight: 122600 lb / 55600 kg
Maximum Pin Height at Stick Nose: 72.2 ft / 22 m
Maximum Weight at Stick Nose: 8160 lb / 3700 kg

The Cat® 340 UHD provides optimum machine solutions for building demolition up to 8 stories. With its unique coupling system, you can switch between two lengths of Ultra High Demolition fronts and two types of Retrofit booms and sticks with no special tools in 15 minutes. You simply won’t find a better 50-ton class choice for demolition.

Loan Calculator Credit Application

Build & Quote

Demolition Excavators (08D) Family Brochure (Europe, N Am, Japan) 340 (08D) UHD Excavator - Technical Specifications (Europe, N Am, Japan) 340 HD (08D) High Wide Hydraulic Excavator - Technical Specifications (Europe) Cat Technologies for Excavators

Specifications
Equipment
Related Products

Engine
Engine Model	Cat C9.3B
Net Power - ISO 9249	346 hp / 258.3 kW
Net Power - ISO 9249 (DIN)	351 hp (metric)
Engine Power - ISO 14396	347 hp / 259 kW
Engine Power - ISO 14396 (DIN)	352 hp (metric)
Bore	5 in / 115 mm
Stroke	6 in / 149 mm
Displacement	568 in³ / 9.3 l
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System
Main System - Maximum Flow	560 l/min (148 gal/min)
Maximum Pressure - Equipment	5076 psi / 35000 kPa
Maximum Pressure - Equipment - Lift Mode	5511 psi / 38000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa
Maximum Pressure - Swing	4264 psi / 29400 kPa

Swing Mechanism - UHD Fronts
Swing Speed	4.09 r/min

Swing Mechanism
Swing Speed	8 r/min
Maximum Swing Torque	105000 lbf·ft / 143 kN·m

Weights
Operating Weight	122600 lb / 55600 kg
Note (1)	Hydraulic Variable Gauge undercarriage, 25 m (72'2") UHD front, 600 mm (24") Heavy Duty (HD) triple grouser shoes and 9.0 mt (19,842 lb) counterweight. No work tool.
Machine Weight - Retrofit Configuration	118600 lb / 53800 kg
Note (2)	Hydraulic Variable Gauge undercarriage, Retrofit boom, R3.2DB (10'6") stick, General Duty (GD) 2.27 m³ (2.97 yd³) bucket, 600 mm (24") HD triple grouser shoes and 9.0 mt (19,842 lb) counterweight.
UHD in Cradle	18700 lb / 8480 kg
Retrofit Boom in Cradle - R3.9 DB Stick	13710 lb / 6220 kg
Retrofit Boom in Cradle - R3.2 DB Stick	13340 lb / 6050 kg
Retrofit Boom in Cradle - R2.8 DB Stick	13120 lb / 5950 kg
2-Piece Retrofit Boom in Cradle - R3.2 DB Stick	17440 lb / 7910 kg

Service Refill Capacities
Fuel Tank Capacity	158.5 gal (US) / 600 l
Cooling System	10.5 gal (US) / 40 l
Engine Oil	8.5 gal (US) / 32 l
Swing Drive	4.8 gal (US) / 18 l
Final Drive - Each	2.1 gal (US) / 8 l
Hydraulic System - Including Tank	145.3 gal (US) / 550 l
Hydraulic Tank	42.5 gal (US) / 161 l
DEF Tank	21.1 gal (US) / 80 l

Dimensions
Note (1)	22 m (72'2") UHD Front
Shipping Height - Top of Cab	11.1 ft / 3383 mm
Cab Height - With OPG	11.8 ft / 3585 mm
Shipping Length	49.8 ft / 15160 mm
Tail Swing Radius	11.6 ft / 3521 mm
Counterweight Clearance	4.6 ft / 1397 mm
Ground Clearance	1.7 ft / 510 mm
Track Length	18.9 ft / 5770 mm
Track Length to Center of Rollers	15.7 ft / 4770 mm
Working Gauge - Extended Position	11.2 ft / 3400 mm
Shipping Gauge - Retracted Position	7.8 ft / 2400 mm
Transport Width	10.7 ft / 3255 mm
Machine Length - without Front, with Counterweight	23.3 ft / 7077 mm
Machine Length - without Front and Counterweight	22.8 ft / 6954 mm
Track Width - Extended	13.1 ft / 4000 mm
Track Width - Retracted	9.8 ft / 3000 mm
Note (2)	600 mm (24") Track Shoes

Working Ranges and Forces
Maximum Pin Height at Stick Nose	72.2 ft / 22 m
Maximum Weight at Stick Nose	8160 lb / 3700 kg
Maximum Working Pin Height at Stick Nose - 1/2	61 ft / 18590 mm
Maximum Working Reach at Stick Nose - 1/2	38.4 ft / 11680 mm
Maximum Height at Stick Nose in Max Reach Position	41.5 ft / 12640 mm
Maximum Reach at Stick Nose	44.4 ft / 13550 mm
Note (1)	22 m (72' 2") UHD Front (Over-the-Front)

Working Ranges and Forces - Retrofit Boom - Straight
Note 1	Straight - R3.2DB m (10' 6") Stick (Over-the-Front) - HVG Undercarriage
Bucket	GD 2.27 m³ (2.97 yd³)
Maximum Pin Height at Stick Nose	39.8 ft / 12.13 m
Maximum Weight at Stick Nose	9260 lb / 4200 kg
Maximum Height at Stick Nose in Max Reach Position	7.6 ft / 2310 mm
Maximum Reach at Stick Nose	34.8 ft / 10620 mm
Maximum Digging Depth	16.1 ft / 4910 mm
Maximum Reach - Ground Level	39.9 ft / 12160 mm
Maximum Loading Height	34 ft / 10370 mm
Minimum Loading Height	15.8 ft / 4790 mm
Bucket Digging Force - ISO	47160 lbf / 210 kN
Stick Digging Force - ISO	37300 lbf / 166 kN

Working Ranges and Forces - Retrofit Boom - Bent
Note 1	Bent - R3.2DB (10'6") Stick - HVG Undercarriage
Bucket	GD 2.27 m³ (2.97 yd³)
Maximum Digging Depth	21.4 ft / 6520 mm
Maximum Reach - Ground Level	36.7 ft / 11180 mm
Maximum Cutting Height	35.4 ft / 10790 mm
Maximum Loading Height	24.9 ft / 7600 mm
Minimum Loading Height	10.4 ft / 3180 mm
Bucket Digging Force - ISO	47160 lbf / 210 kN
Stick Digging Force - ISO	37300 lbf / 166 kN

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivale of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivale of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Tilt-up demolition cab with P5A laminated front and roof glass
- High-resolution 254 mm (10") LCD touchscreen monitor
- Heated and cooled seat with automatic adjustable suspension
- Bluetooth® integrated radio
- Auto bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console
- Tilt-up left-side console
- Cat Stick Steer
- Auxiliary relay
- Tilt rocker switch
- Sky wiper switch
- LED interior lights
- Roller front sunscreen
- P5A fixed windshield
CAT TECHNOLOGY
- VisionLink™
- Remote Flash
- Cat Grade with 2D
- Cat Payload
ELECTRICAL SYSTEM
- Maintenance-free 1,000 CCA batteries (x 4)
- Centralized electrical disconnect switch
- LED lights - 1,800 lumens
ENGINE
- Three selectable modes: Power, Smart, ECO
- Auto engine speed control
- Up to 4500 m (14,760 ft) altitude capability
- Reversing fan
- 52° C (126° F) high-ambient cooling
- -18° C (0° F) cold start capability
- Double element air filter with integrated pre-cleaner
HYDRAULIC SYSTEM
- Boom lowering check valve
- Stick lower check valve
- Electronic main control valve
- Heavy lift mode
- Auto hydraulic oil warmup
- Auto swing parking brake
- High performance hydraulic return filter
- Two-speed travel
SAFETY AND SECURITY
- 2D E-Fence (swing)
- Caterpillar One Key security system
- Lockable external tool/storage box
- Lockable door, fuel, and hydraulic tanks
- Lockable fuel drain compartment
- Lockable disconnect switch
- Service platform with anti-skid plate
- Rear and right-hand side cameras
- Operator Protective Guards (OPG)
SERVICE AND MAINTENANCE
- Integrated vehicle health management system
- Grouped location of engine oil and fuel filters
- Scheduled Oil Sampling (S·O·S?) ports
- Electric refueling pump with auto shutoff
UNDERCARRIAGE AND STRUCTURES
- 9.0 mt (19,842 lb) counterweight
- Full-length track guiding guards
- Travel motor guard
- Bottom guard

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS AND STICKS
- 22 m (72'2") UHD front
- 25 m (82'0") UHD front
- Two-piece Retrofit Variable Adjustment boom
- 7.4 m (24'3") Retrofit boom
- 3.9 m (12'10") Retrofit stick (Europe, North America only)
- 3.2 m (10'6") Retrofit stick
- 2.8 m (9'2") Retrofit stick (Europe, North America only)
- Advanced tool control, UHD
- Bucket linkage, DB family
- Bucket linkage, Dedicated, C family
CAB
- Roller rear sunscreen
CAT TECHNOLOGY
- Operator Coaching (VisionLink subscription required)
- Cat Advanced Payload
ENGINE
- -32° C (-25° F) cold start capability
- Cold start block heaters
- Ether starting aid
HYDRAULIC SYSTEM
- SmartBoom™ with BLCV and Overload Warning Device for UHD front (Europe only)
- Bio hydraulic oil capability
- Combined two-way auxiliary circuits
- High and medium-pressure auxiliary circuits
- Quick coupler circuit
SAFETY AND SECURITY
- 360° visibility
SERVICE AND MAINTENANCE
- QuickEvac™ maintenance ready
UNDERCARRIAGE AND STRUCTURES
- Hydraulic Variable Gauge undercarriage
- Fixed Gauge undercarriage
- 600 mm (24 in) double grouser track shoes
- 600 mm (24 in) HD triple grouser track shoes
- 700 mm (28 in) triple grouser track shoes
- 700 mm (28") HD triple grouser track shoes
