CB2.5 GC

Standard Operating Weight with ROPS
5546 lb / 2521 kg
Compaction Width
39.4 in / 1000 mm
Engine Power (1)
24.7 hp / 18.4 kW

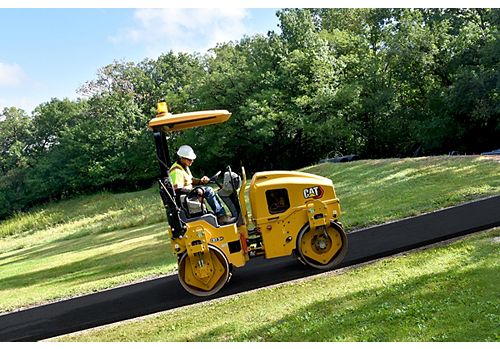

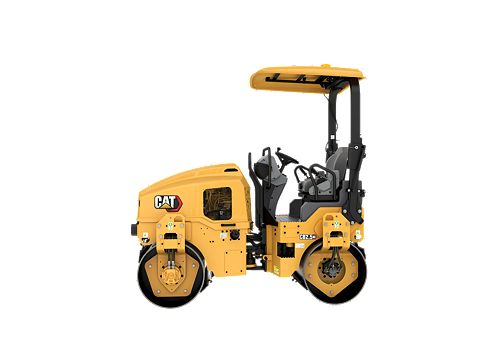

The Cat® CB2.5 GC Utility Compactora 2.5 metric ton machine with 1000 mm (39 in) drums. It is well suited for a variety of applications from asphalt to granular base applications. Simplicity, durability, and easy access to routine service points make these compactors an asset to contractors and rental houses.

Weights
Standard Operating Weight with ROPS 5546 lb / 2521 kg
Maximum Operating Weight with ROPS 2607 lb / 1185 kg
Maximum Weight at Front Drum 2607 lb / 1185 kg
Maximum Weight at Rear Drum 2939 lb / 1336 kg
Dimensions
Compaction Width 39.4 in / 1000 mm
Wheel Base 70.9 in / 1800 mm
Overall Width 43.8 in / 1112 mm
Drum Width 39.4 in / 1000 mm
Height - ROPS 102.2 in / 2595 mm
Overall Length 102.2 in / 2596 mm
Drum Diameter 28.3 in / 720 mm
Operating Specifications
Travel Speed - Maximum 5.8 mile/h / 9.4 km/h
Static Linear Load 66.2 lb/in / 11.85 kg/cm
Turning Radius - Outside Drum Edge 143.3 in / 3640 mm
Drum Offset 2 in / 50 mm
Curb Clearance 17.8 in / 453 mm
Ground Clearance 11.2 in / 285 mm
Turning Radius - Inside Drum Edge 103.9 in / 2640 mm
Engine
Engine Power (1) 24.7 hp / 18.4 kW
Engine Model C1.7T
Vibratory System
Nominal Amplitude - High 0.02 in / 0.51 mm
Centrifugal Force - Maximum 5885.3 lb / 26.2 kN
Frequency 62 Hz / 3720 VPM
Service Refill Capacities
Water Spray Tank Capacity 52.8 gal (US) / 200 l
Fuel Tank Capacity 14.37 gal (US) / 55 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Adjustable Suspension Seat with Operator Presense Switch
    • ROPS Folding
    • Seat Belt - 75 mm (3 in) high visibility orange
    • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • COMPACTON SYSTEM
    • Folding Scrapers
    • Vibe Selection - front, rear, or both
    • Pressurized, Triple-Filtration Spray System with Test Mode
  • POWERTRAIN
    • Auto Engine Off and Auto Warmup
    • Air Cleaner, Dual Element
    • Engine Belt Guard
  • TECHNOLOGY
    • Telematics
  • ELECTRICAL
    • LED Working Lights
  • OTHER
    • Vandal Protection - lockable hood, fuel fill, and controls cover
    • Machine Life and Tiedowns
    • Offsets Hitch

Optional Equipment

  • OPERATOR ENVIRONMENT
    • ROPS Fixed
    • Sun Canopy
    • Seat - Side Shift
    • Dual Propel Levers
  • COMPACTON SYSTEM
    • Fixed Scrapers
    • Cocoa Mats
    • Edge Cutter Ready
    • Water Sprayer Antifreeze Kit
    • Ballast Kit - 200 kg (440 lb)
    • Ballast Kit - 400 kg (880 lb)
  • POWERTRAIN
    • Traction Control
  • TECHNOLOGY
    • Remote Flash / Troubleshoot
    • CMV - Compaction Measurement Value
  • ELECTRICAL
    • Battery Disconnect
    • LED Roading Lights
    • Rotating Amber Beacon
  • OTHER
    • Biodegradeable Hydraulic Oil
    • Bumpers
    • Single Point Lift
    • Custom Paint
