CB2.7 GC

Standard Operating Weight with ROPS
5936 lb / 2698 kg
Compaction Width
47.2 in / 1200 mm
Engine Power (1)
24.7 hp / 18.4 kW

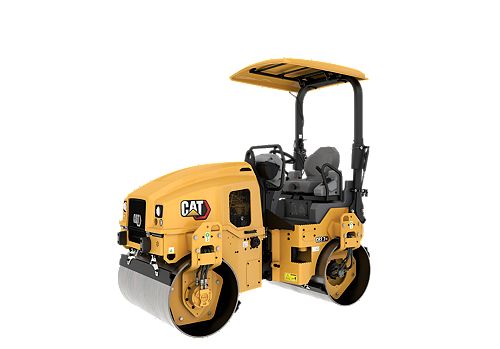

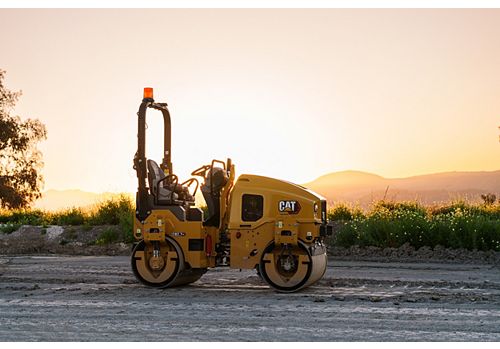

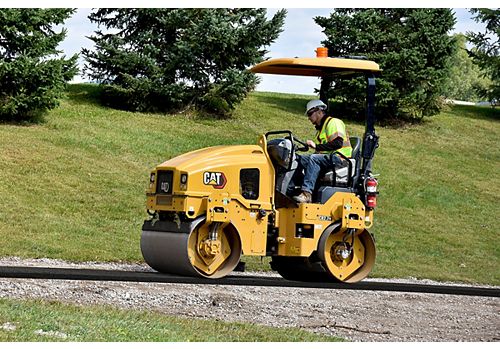

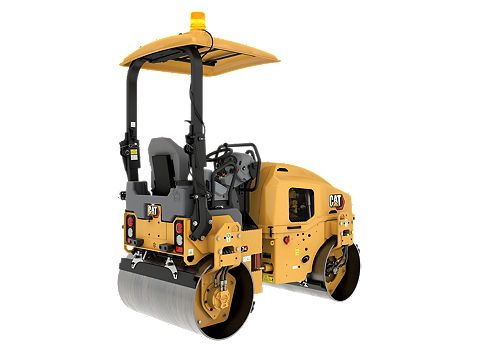

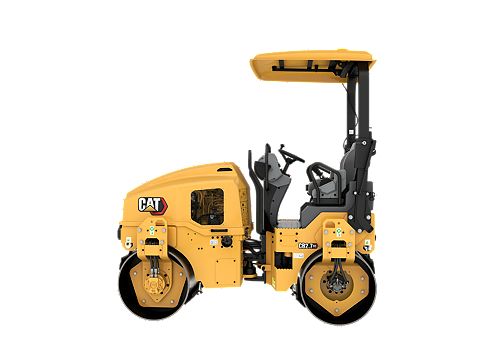

The Cat®CB2.7 GC is a 2.7 metric ton machine with 1200 mm (47 in) drums. It is well suited for a variety of applications from asphalt to granular base applications. Simplicity, durability, and easy access to routine service points make these compactors an asset to contractors and rental houses.

Weights
Standard Operating Weight with ROPS 5936 lb / 2698 kg
Maximum Operating Weight with ROPS 7036 lb / 3198 kg
Maximum Weight at Rear Drum 3075 lb / 1398 kg
Maximum Weight at Front Drum 2861 lb / 1301 kg
Dimensions
Compaction Width 47.2 in / 1200 mm
Drum Diameter 28.3 in / 720 mm
Drum Width 47.2 in / 1200 mm
Height - ROPS 102.2 in / 2595 mm
Overall Length 102.2 in / 2596 mm
Overall Width 51.7 in / 1312 mm
Wheel Base 70.9 in / 1800 mm
Operating Specifications
Curb Clearance 17.8 in / 453 mm
Drum Offset 2 in / 50 mm
Ground Clearance 11.2 in / 285 mm
Static Linear Load 66.2 lb/in / 11.85 kg/cm
Travel Speed - Maximum 5.8 mile/h / 9.4 km/h
Turning Radius - Inside Drum Edge 100 in / 2540 mm
Turning Radius - Outside Drum Edge 147.2 in / 3740 mm
Engine
Engine Power (1) 24.7 hp / 18.4 kW
Engine Model C1.7T
Vibratory System
Centrifugal Force - Maximum 6968.8 lb / 31 kN
Nominal Amplitude - High 0.02 in / 0.52 mm
Service Refill Capacities
Water Spray Tank Capacity 52.8 gal (US) / 200 l
Fuel Tank Capacity 14.37 gal (US) / 55 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Adjustable Suspension Seat with Operator Presense Switch
    • ROPS Folding
    • Seat Belt - 75 mm (3 in) high visibility orange
    • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • COMPACTON SYSTEM
    • Folding Scrapers
    • Vibe Selection - front, rear, or both
    • Pressurized, Triple-Filtration Spray System with Test Mode
  • POWERTRAIN
    • Auto Engine Off and Auto Warmup
    • Air Cleaner, Dual Element
    • Engine Belt Guard
  • TECHNOLOGY
    • Telematics
  • ELECTRICAL
    • LED Working Lights
  • OTHER
    • Vandal Protection - lockable hood, fuel fill, and controls cover
    • Machine Life and Tiedowns
    • Offsets Hitch

Optional Equipment

  • OPERATOR ENVIRONMENT
    • ROPS Fixed
    • Sun Canopy
    • Seat - Side Shift
    • Dual Propel Levers
  • COMPACTON SYSTEM
    • Fixed Scrapers
    • Cocoa Mats
    • Edge Cutter Ready
    • Water Sprayer Antifreeze Kit
    • Ballast Kit - 200 kg (440 lb)
    • Ballast Kit - 400 kg (880 lb)
  • POWERTRAIN
    • Traction Control
  • TECHNOLOGY
    • Remote Flash / Troubleshoot
    • CMV - Compaction Measurement Value
  • ELECTRICAL
    • Battery Disconnect
    • LED Roading Lights
    • Rotating Amber Beacon
  • OTHER
    • Biodegradeable Hydraulic Oil
    • Bumpers
    • Single Point Lift
    • Custom Paint
