2697 mm (106 in), Fusion™ Coupler
- Width
- 106.2 in / 2697 mm
- Weight
- 2963 lb / 1344 kg
- Overall Height
- 65.1 in / 1653 mm

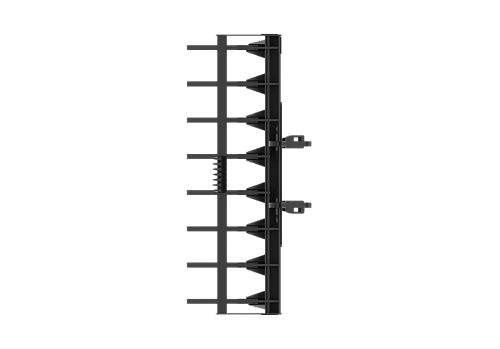

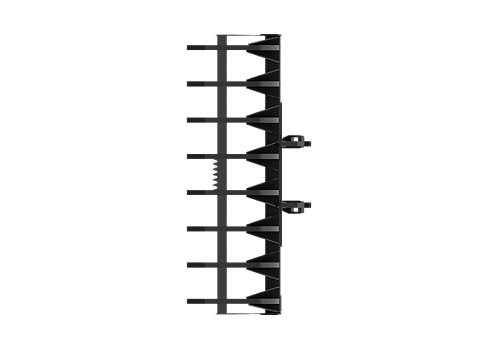

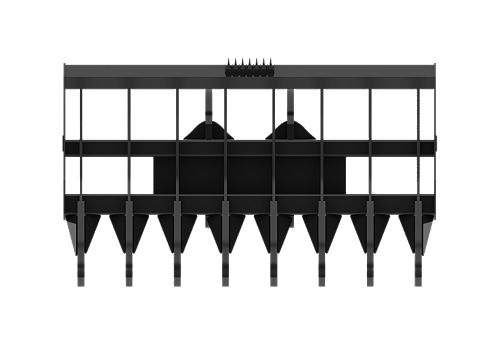

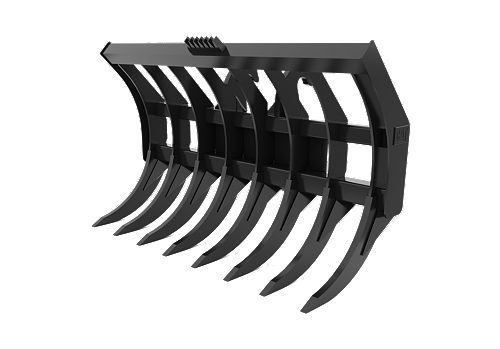

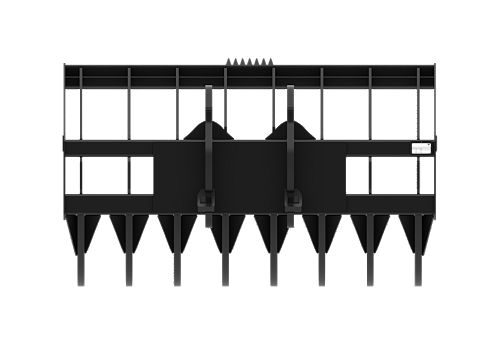

Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.
| Product Specifications | |
|---|---|
| Width | 106.2 in / 2697 mm |
| Weight | 2963 lb / 1344 kg |
| Overall Height | 65.1 in / 1653 mm |
| Overall Length | 47.3 in / 1202 mm |
| Tine Spacing | 13.8 in / 350 mm |
| Tine Thickness | 0.8 in / 20 mm |
| Number of Tines | 8 |
| Interface Type | Fusion™ |
Compact Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 914 | 110 hp / 82 kW | 19103 lb / 8668 kg | 1.3-3.5 m3 (1.7-4.6 yd3) |
| 920 | 121 hp / 90 kW | 21742 lb / 9865 kg | 1.3-3.5 m3 (1.7-4.6 yd3) |
Small Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 926M | 168 hp / 125 kW | 28193 lb / 12789 kg | 1.9-5.0 m3 (2.5-6.5 yd3) |
| 926M Aggregate Handler | 168 hp / 125 kW | 28577 lb / 12963 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m3 (2.7-6.5 yd3) |
| 930M Ag Handler | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m³ (2.7-6.5 yd³) |
| 930M Aggregate Handler | 168 hp / 125 kW | 31848 lb / 14446 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M Waste Handler | 168 hp / 125 kW | 37713 lb / 17107 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
| 938M | 188 hp / 140 kW | 35778 lb / 16229 kg | 2.5-5.0 m3 (3.2-6.5 yd3) |
| 938M Aggregate Handler | 188 hp / 140 kW | 36839 lb / 16710 kg | 2.9-5.0 m3 (3.8-6.5 yd3) |
| 938M Waste Handler | 188 hp / 140 kW | 41794 lb / 18958 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
