920

Maximum Gross Power: 121 hp / 90 kW
Operating Weight: 21742 lb / 9865 kg
Rated Net Power - Rated Engine Speed: 2200 r/min

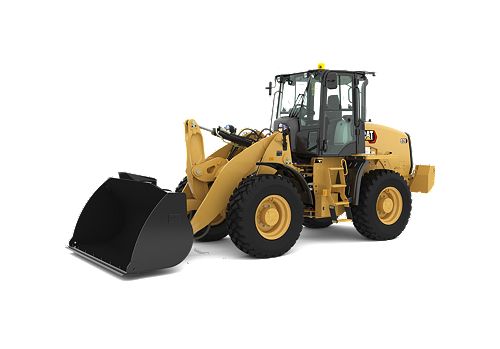

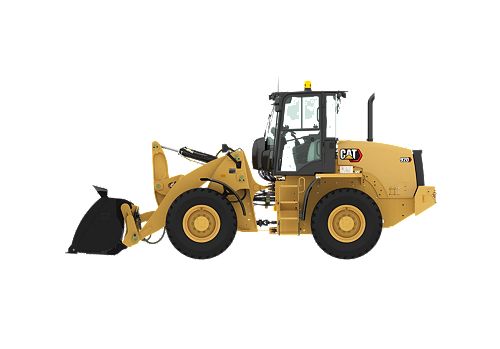

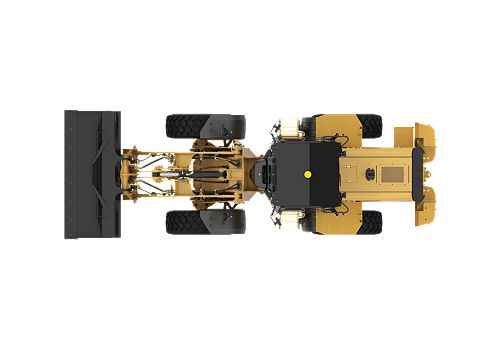

The Cat® 920 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

Loan Calculator Credit Application

Build & Quote

920 Product Brochure 910, 914, 920 Product Brochure Attachments for Compact Wheel Loaders Brochure Retrofit Options and Accessories for Compact Wheel Loaders

Specifications
Related Products

Engine
Rated Net Power - Rated Engine Speed	2200 r/min
Maximum Gross Power - Rated Engine Speed	2200 r/min
Rated Net Power - SAE J1349	120 hp / 90 kW
Maximum Gross Power - ISO 14396 (metric)	122 hp
Rated Net Power - ISO 9249	118 hp / 88 kW
Maximum Gross Torque - SAE J1995	372 ft·lbf / 505 N·m
Maximum Gross Torque - ISO 14396	369 ft·lbf / 500 N·m
Maximum Net Torque - SAE J1349	366 ft·lbf / 496 N·m
Maximum Net Torque - ISO 9249	363 ft·lbf / 493 N·m
Displacement	220 in³ / 3.6 l
Bore	3.85 in / 98 mm
Stroke	4.72 in / 120 mm
Engine Model	Cat C3.6
Emissions	Engine meets Tier 4 Final/Stage V emission standards.
Note	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power - ISO 14396	121 hp / 90 kW
Maximum Gross Power	121 hp / 90 kW

Buckets
Bucket Capacities	1.3-3.5 m3 (1.7-4.6 yd3)
Bucket Capacities - General Purpose	1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities - Light Material	2.5-3.5 m³ (3.3-4.6 yd³)

Weights
Operating Weight	21742 lb / 9865 kg

Steering
Maximum Working Pressure - Steering Pump	3190 psi / 22000 kPa
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed	2.3 s
Steering Articulation Angle - Each Direction	40 °
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.4 turns
Maximum Flow - Steering Pump	21.7 gal/min / 82 l/min

Loader Hydraulic System
Relief Pressure - Tilt Cylinder	4641 psi / 32000 kPa
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard	25 gal/min / 95 l/min
Maximum Flow - Implement Pump	43.6 gal/min / 165 l/min
Relief Pressure - Tilt Cylinder - 4th Function Relief Pressure	4641 psi / 32000 kPa
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.7 s
Note	All cycle times listed are with cylinder snubbing turned off.
Maximum Working Pressure - Implement Pump	4061 psi / 28000 kPa
Hydraulic Cycle Time - Total Cycle Time	11.5 s
Hydraulic Cycle Time - Rackback	2.2 s
Maximum Flow - Implement Pump - 4rd Function, Maximum Flow	25 gal/min / 95 l/min
Hydraulic Cycle Time - Dump, at Maximum Reach	1.8 s
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	4.8 s
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High	40 gal/min / 150 l/min

Service Refill Capacities
Transmission	0.8 gal (US) / 3.2 l
Engine Crankcase	2.6 gal (US) / 10 l
Diesel Exhaust Fluid (DEF) Tank	4.8 gal (US) / 18 l
Axles - Rear	4.5 gal (US) / 17 l
Cooling System	5.7 gal (US) / 21.5 l
Hydraulic System - Including Tank	25.9 gal (US) / 98 l
Axles - Front	4.5 gal (US) / 17 l
Fuel Tank	43.6 gal (US) / 165 l
Hydraulic Tank	14.5 gal (US) / 55 l
Note	DEF used in Cat Selective Catalyst Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Transmission
Note	*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Speed Range 3	25 mile/h / 40 km/h
Forward and Reverse - Speed Range 2*	12.5 mile/h / 20 km/h
Forward and Reverse - Speed Range 1*	6.3 mile/h / 10 km/h

Axles
Rear	Oscillating ±11 degrees; Locking differential (standard)
Front	Fixed; Locking differential (standard)

Cab
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005
Note (3)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4)	*The measurements were conducted with the cab doors and windows closed.

Tires
Other Choices Include	17.5 R25 L3 XHA2; 20.5 R25 L3 XHA3; 17.5-25 L2/L3 SGL; 20.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 20.5 R25 L2 Snow; 17.5 R25 Solid
Standard Size	17.5 R25 L2 XTLA
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Sustainability
Recyclability	95%

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1550 mm (61 in)	36.8 in / 935.09 mm	61 in / 1550 mm	539 lb / 244.5 kg
1566 mm (62 in)	39.6 in / 1006 mm	62 in / 1566 mm	1569.9 lb / 712.1 kg

General Purpose Buckets - Performance Series

General Purpose Performance buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Model	Width	Weight	Height
1.2 m3 (1.6 yd3), IT Coupler, Bolt-On Teeth	95.6 in / 2429 mm	1129 lb / 512.09 kg	43 in / 1093 mm
1.2 m3 (1.6 yd3), ISO Coupler, Bolt-On Teeth	95.6 in / 2429 mm	1168.9 lb / 530.2 kg	43 in / 1093 mm
1.3 m3 (1.7 yd3), IT Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1220.9 lb / 553.79 kg	42.5 in / 1080 mm
1.3 m3 (1.7 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1261 lb / 572 kg	42.5 in / 1080 mm
1.3 m3 (1.7 yd3), Pin On, Bolt-On Teeth	95.6 in / 2429 mm	1184.1 lb / 537.09 kg	43 in / 1093 mm
1.4 m3 (1.8 yd3), Pin On, Bolt-On Cutting Edge	94.5 in / 2401 mm	1276 lb / 578.79 kg	42.5 in / 1080 mm
1.4 m3 (1.8 yd3), IT Coupler, Bolt-On Teeth	95.6 in / 2429 mm	1173.1 lb / 532.09 kg	43 in / 1093 mm
1.4 m3 (1.8 yd3), ISO Coupler, Bolt-On Teeth	95.6 in / 2429 mm	1213 lb / 550.2 kg	43 in / 1093 mm
1.5 m3 (2.0 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1304.9 lb / 591.9 kg	42.5 in / 1080 mm
1.5 m3 (2.0 yd3), IT Coupler, Bolt-On Teeth	95.6 in / 2429 mm	1250 lb / 567 kg	43 in / 1093 mm
1.5 m3 (2.0 yd3), Pin On, Bolt-On Teeth	95.6 in / 2429 mm	1270.1 lb / 576.09 kg	43 in / 1093 mm
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1362 lb / 617.79 kg	42.5 in / 1080 mm
1.6 m3 (2.1 yd3), Pin On, Bolt-On Cutting Edge	94.5 in / 2401 mm	1342 lb / 608.7 kg	42.5 in / 1080 mm
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Teeth	95.6 in / 2428 mm	1300.9 lb / 590.09 kg	45.8 in / 1163 mm
1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Teeth	95.6 in / 2428 mm	1341 lb / 608.29 kg	46.1 in / 1171 mm
1.7 m3 (2.2 yd3), IT Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1393.1 lb / 631.9 kg	45.6 in / 1159 mm
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1433 lb / 650 kg	45.6 in / 1159 mm
1.7 m3 (2.2 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1519 lb / 689 kg	49.2 in / 1250 mm
1.6 m3 (2.1 yd3), Fusion™ Coupler, Bolt-On Teeth	95.9 in / 2435 mm	1426.4 lb / 647 kg	50.3 in / 1277 mm
1.9 m3 (2.5 yd3), IT Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1470 lb / 666.79 kg	45.6 in / 1159 mm
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1470 lb / 666.79 kg	45.6 in / 1159 mm
2.0 m3 (2.6 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1618.2 lb / 734 kg	51.3 in / 1304 mm
1.9 m3 (2.5 yd3), Fusion™ Coupler, Bolt-On Teeth	95.9 in / 2435 mm	1618.2 lb / 734 kg	52.4 in / 1331 mm
1.2 m3 (1.6 yd3), IT Coupler	94 in / 2388 mm	1033.7 lb / 468.89 kg	42.1 in / 1070 mm
1.2 m3 (1.6 yd3), ISO Coupler	94 in / 2388 mm	1074.1 lb / 487.2 kg	42.1 in / 1070 mm
1.3 m3 (1.7 yd3), Pin On	94 in / 2388 mm	1088.4 lb / 493.7 kg	42.1 in / 1070 mm
1.4 m3 (1.8 yd3), IT Coupler	94 in / 2388 mm	1118.8 lb / 507.5 kg	42.1 in / 1070 mm
1.4 m3 (1.8 yd3), ISO Coupler	94 in / 2388 mm	1118 lb / 507.1 kg	42.1 in / 1070 mm
1.5 m3 (2.0 yd3), IT Coupler	94 in / 2388 mm	1154.6 lb / 523.7 kg	42.1 in / 1070 mm
1.5 m3 (2.0 yd3), Pin On	94 in / 2388 mm	1175.1 lb / 533 kg	42.1 in / 1070 mm
1.6 m3 (2.1 yd3), IT Coupler	94 in / 2388 mm	1205.9 lb / 547 kg	45.2 in / 1149 mm
1.6 m3 (2.1 yd3), ISO Coupler	94 in / 2388 mm	1246.1 lb / 565.2 kg	45.2 in / 1149 mm
1.7 m3 (2.2 yd3), Pin On	94 in / 2388 mm	1263 lb / 572.9 kg	45.2 in / 1149 mm
1.8 m3 (2.4 yd3), IT Coupler	94 in / 2388 mm	1265 lb / 573.79 kg	45.2 in / 1149 mm
1.8 m3 (2.4 yd3), Pin On	94 in / 2388 mm	1302.9 lb / 591 kg	45.2 in / 1149 mm
1.8 m3 (2.4 yd3), ISO Coupler	94 in / 2388 mm	1321.9 lb / 599.59 kg	45.2 in / 1149 mm

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Flat Floor Buckets - Performance Series

Performance Series Flat Floor, General Purpose Buckets utilize a long flat floor that delivers improved results when back dragging and grading.

Model	Width	Weight	Height
1.5 m3 (2.0 yd3), ISO Coupler, Weld-On Teeth	95.8 in / 2434 mm	1490.1 lb / 675.9 kg	42.2 in / 1073 mm
1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1492.1 lb / 676.79 kg	42.5 in / 1080 mm
1.6 m3 (2.1 yd3), ISO Coupler, Weld-On Teeth	95.8 in / 2434 mm	1377.9 lb / 625 kg	40.3 in / 1023 mm
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1524.9 lb / 691.7 kg	42.5 in / 1080 mm
1.8 m3 (2.4 yd3), ISO Coupler, Weld-On Teeth	95.8 in / 2434 mm	1490.1 lb / 675.9 kg	45.4 in / 1152 mm
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge	94.5 in / 2401 mm	1436.1 lb / 651.4 kg	45.6 in / 1159 mm

Light Material Buckets - Performance Series

Model	Width	Weight	Height
2.5 m3 (3.3 yd3), Pin On, Bolt-On Cutting Edge	100.4 in / 2549 mm	1799 lb / 816 kg	49.9 in / 1267 mm
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1799 lb / 816 kg	49.9 in / 1267 mm
2.5 m3 (3.3 yd3), IT Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1748.3 lb / 793 kg	49.9 in / 1267 mm
2.5 m3 (3.3 yd3), ISO Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1772.5 lb / 804 kg	49.9 in / 1267 mm
3.0 m3 (3.9 yd3), ISO Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1909.2 lb / 866 kg	55.3 in / 1404 mm
3.0 m3 (3.9 yd3), Pin On, Bolt-On Cutting Edge	100.4 in / 2549 mm	1935.7 lb / 878 kg	55.3 in / 1404 mm
3.0 m3 (3.9 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1948.9 lb / 884 kg	55.2 in / 1402 mm
3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	1882.7 lb / 854 kg	55.3 in / 1404 mm
3.5 m3 (4.6 yd3), IT Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	2017.2 lb / 915 lb	58.5 in / 1486 kg
3.5 m3 (4.6 yd3), ISO Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	2041.5 lb / 926 kg	58.5 in / 1486 mm
3.5 m3 (4.6 yd3), Pin On, Bolt-On Cutting Edge	100.4 in / 2549 mm	2067.9 lb / 938 kg	58.5 in / 1486 mm
3.5 m3 (4.6 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	2081.2 lb / 944 kg	58.4 in / 1483 mm

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Hydraulic, 12V	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm
BA25 Hydraulic, 24V	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm
BA25 Manual	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm

Loader Rakes

Loader Rakes are designed to remove roots from the ground and are also used to pile up branches, logs or roots during a land cleaning application.

Model	Width	Weight	Overall Height
2697 mm (106 in), Fusion™ Coupler	106.2 in / 2697 mm	2963 lb / 1344 kg	65.1 in / 1653 mm

High Dump Buckets

Increased dump height equals better performance in loading applications.

Model	Width	Height	Weight
2.1 m3 ( 2.7 yd3), ISO Coupler, Bolt-On Cutting Edge	93.1 in / 2366 mm	58 in / 1472 mm	3161.4 lb / 1434 kg
2.5 m3 ( 3.3 yd3), ISO Coupler, Bolt-On Cutting Edge	93.1 in / 2366 mm	62.3 in / 1583 mm	3245.2 lb / 1472 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25	78.3 in / 2700 mm	60 in / 2500 mm	26 in / 700 mm
