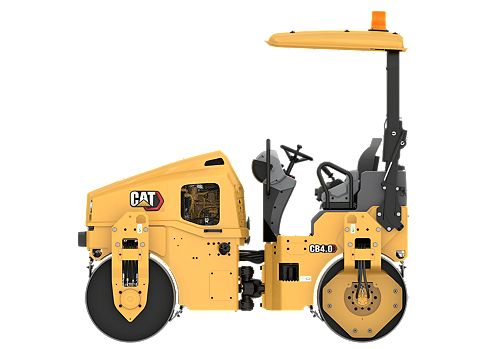

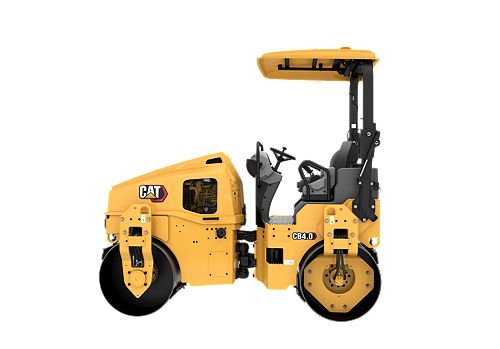

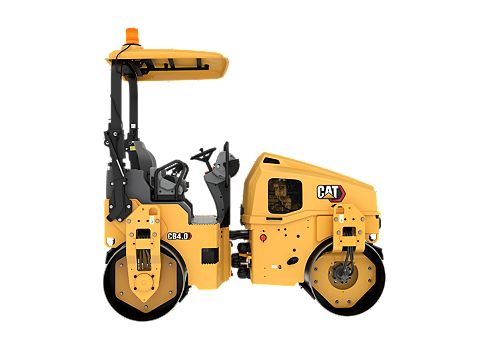

CB4.0
- Standard Operating Weight with ROPS
- 7971 lb / 3623 kg
- Compaction Width
- 51.2 in / 1300 mm
- Gross Power
- 48.2 hp / 36 kW

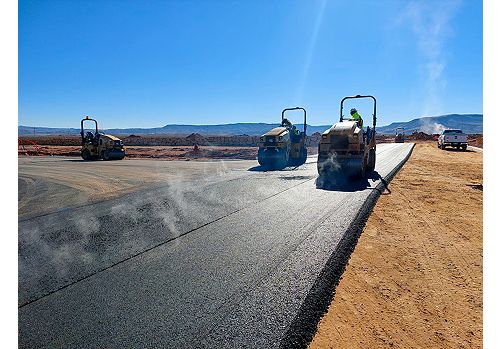

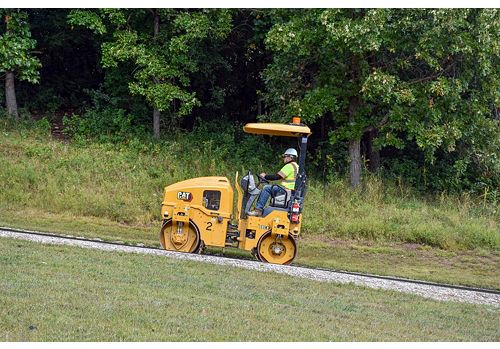

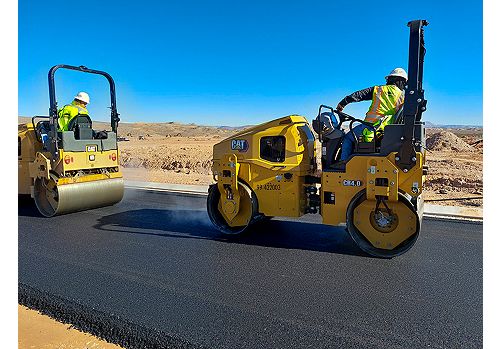

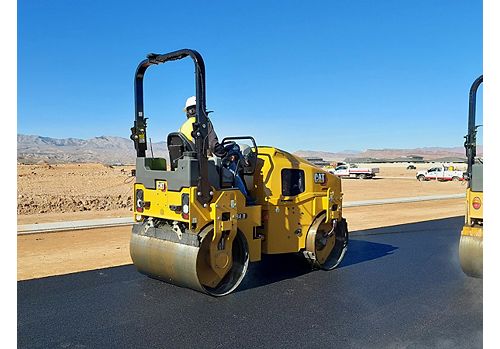

The CB4.0 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
| Weights | |
|---|---|
| Standard Operating Weight with ROPS | 7971 lb / 3623 kg |
| Maximum Operating Weight with ROPS | 9493 lb / 4315 kg |
| Static Linear Load | 59.8 lb/in / 13.9 kg/cm |
| Operating Weight - At Front Drum with ROPS/FOPS | 3837 lb / 1744 kg |
| Operating Weight - At Rear Drum with ROPS/FOPS | 4134 lb / 1879 kg |
| Dimensions | |
|---|---|
| Compaction Width | 51.2 in / 1300 mm |
| Overall Length | 112.3 kg/cm / 2853 mm |
| Overall Width | 55.1 in / 1400 mm |
| Drum Width | 51.2 in / 1300 mm |
| Drum Diameter | 31.5 in / 800 mm |
| Wheel Base | 80.7 in / 2050 mm |
| Height - ROPS | 104.7 in / 2660 mm |
| Operating Specifications | |
|---|---|
| Drum Offset | 2 in / 50 mm |
| Curb Clearance | 19.6 in / 499 mm |
| Ground Clearance | 11.2 in / 284 mm |
| Travel Speed - Maximum | 8.1 mile/h / 13 km/h |
| Turning Radius - Inside Drum Edge | 115.2 in / 2926 mm |
| Turning Radius - Outside Drum Edge | 166.4 in / 4226 mm |
| Engine | |
|---|---|
| Gross Power | 48.2 hp / 36 kW |
| Engine Model | C1.7T |
| Net Power - ISO 9249 | 47.6 hp / 35.5 kW |
| Vibratory System | |
|---|---|
| Frequency | 55/45 Hz (3300/2700 vpm) |
| Nominal Amplitude - High | 0.02 in / 0.5 mm |
| Centrifugal Force - Maximum | 7524 lb/ft / 33.47 kN |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 21.43 gal (US) / 81 l |
| Water Spray Tank Capacity | 79 gal (US) / 300 l |
