H215 S

Minimum Operating Weight: 16280 lb / 7400 kg
Rated Flow - Minimum: 95 gal/min / 360 l/min
Rated Flow - Maximum: 119 gal/min / 450 l/min

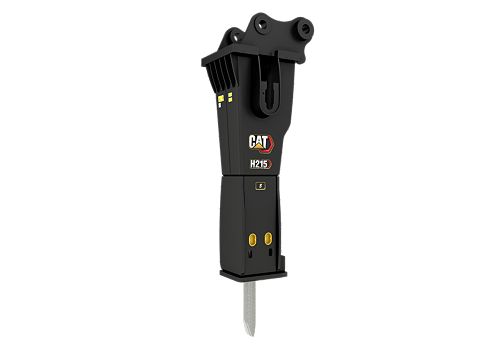

Cat® H215 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H215 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H215 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	290 to 510
Minimum Operating Weight	16280 lb / 7400 kg
Rated Flow - Minimum	95 gal/min / 360 l/min
Rated Flow - Maximum	119 gal/min / 450 l/min
Minimum Operating Pressure	2465 psi / 17000 kPa
Maximum Operating Pressure	2610 psi / 18000 kPa
Tool Shaft Diameter	8.5 in / 215 mm
Minimum Carrier Weight	143299 lb / 65 t
Maximum Carrier Weight	264552 lb / 120 t

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
374 - Tier 4 / Stage V	484 hp / 361 kW	162900 lb / 73890 kg	28.1 ft / 8570 mm
395 - Tier 4 / Stage V	542 hp / 404 kW	207400 lb / 94000 kg	31.9 ft / 9670 mm
