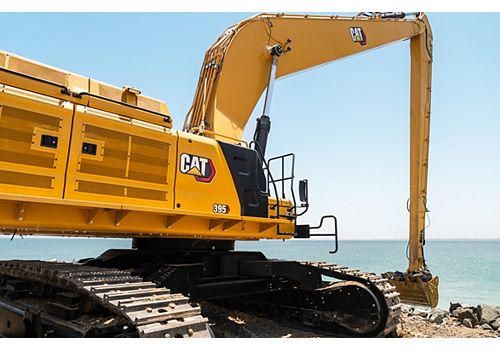

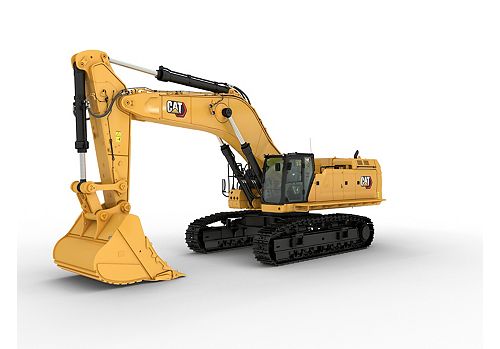

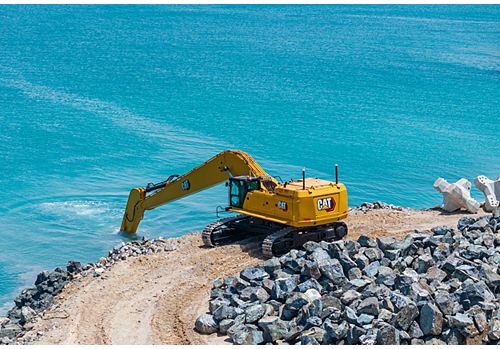

395

Net Power - ISO 9249: 542 hp / 404 kW
Operating Weight: 207400 lb / 94000 kg
Maximum Digging Depth: 31.9 ft / 9670 mm

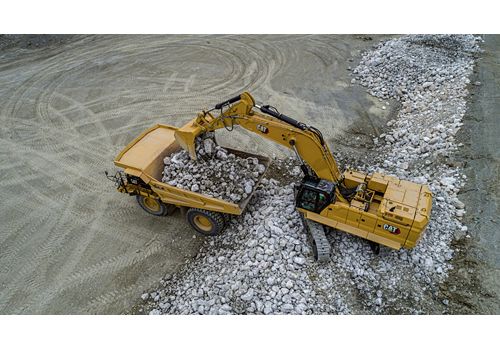

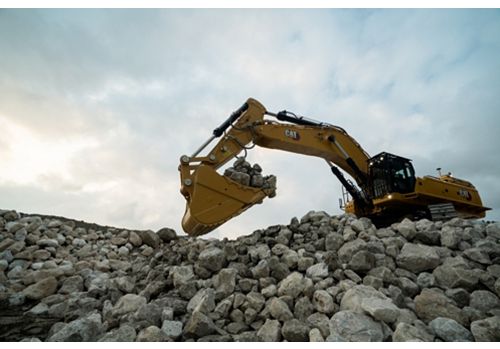

The Cat® 395 Excavator is a powerhouse that gets the job done every time. Built with the 540 horsepower Cat C18 engine, this machine is a groundbreaking rockstar with fast cycle times and a powerful digging force that eases bucket penetration and digs down deep with maximum digging depths from 7.2 m (23.7 ft) up to 11.7m (38.5 ft). Equipped with the latest Cat technology, the 395 helps you make informed and smart decisions to help improve jobsite efficiency, increase productivity, and return safely home every day. If you want to generate big-time results for your business, put the 395 next generation excavator to work. It is the top choice in its size class.

Loan Calculator Credit Application

Build & Quote

395 (07H) Hydraulic Excavator - Product Brochure (Aus-NZ, Chile, Colombia, Europe, N Am, S Korea, Türkiye) Super Long Reach and Long Reach Excavation - Family Brochure 395 (07H) Hydraulic Excavator - Technical Specifications (Japan) 395 (07H) Hydraulic Excavator - Technical Specifications (Aus-NZ, Chile, Europe, N Am, S Korea, Türkiye) 395 (07H) Long Reach Hydraulic Excavator - Technical Specifications (Japan) 395 (07H) Long Reach Hydraulic Excavator - Technical Specifications (Aus-NZ, Chile, Europe, N Am, S Korea, Türkiye) Payload Technologies for Excavators Cat Technologies for Excavators 395 (07H) Hydaulic Excavator - Key Features (Japan)

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249	542 hp / 404 kW
Net Power - ISO 9249 (DIN)	550 hp (metric)
Engine Model	Cat C18
Engine Power - ISO 14396	543 hp / 405 kW
Engine Power - ISO 14396 (DIN)	551 hp (metric)
Bore	6 in / 145 mm
Stroke	7 in / 183 mm
Displacement	1105 in³ / 18.1 l
Biodiesel Capability	B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System
Main System - Maximum Flow - Implement	281 gpm / 1064 L/min
Maximum Pressure - Equipment	5366 psi / 37000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa
Maximum Pressure - Swing	4496 psi / 31000 kPa

Swing Mechanism
Maximum Swing Torque	267333 lbf·ft / 362 kN·m
Note (1)	*For CE-marked machine default value may be set lower

Weights
Operating Weight	207400 lb / 94000 kg
Note (1)	Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.

Service Refill Capacities
Fuel Tank Capacity	322 gal (US) / 1220 l
Cooling System	19 gal (US) / 71 l
Engine Oil	18 gal (US) / 67 l
Swing Drive	6 gal (US) / 24 l
Final Drive - Each	5 gal (US) / 20 l
Hydraulic System - Including Tank	196 gal (US) / 740 l
Hydraulic Tank	98 gal (US) / 372 l
DEF Tank	21 gal (US) / 80 l

Dimensions
Boom	GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³)
Shipping Height - Top of Cab	12 ft / 3670 mm
Handrail Height	12.4 ft / 3750 mm
Shipping Length	49.6 ft / 15090 mm
Tail Swing Radius	15.11 ft / 4840 mm
Counterweight Clearance	5.5 ft / 1640 mm
Ground Clearance	2.9 ft / 830 mm
Track Length	20.1 ft / 6350 mm
Track Length to Center of Rollers	16.1 ft / 5120 mm
Track Gauge	11.6 ft / 3510 mm
Transport Width	12.9 ft / 3880 mm
Note	Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps

Working Ranges and Forces
Maximum Digging Depth	31.9 ft / 9670 mm
Boom	GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³)
Maximum Reach at Ground Level	48.3 ft / 14710 mm
Maximum Cutting Height	44.5 ft / 13540 mm
Maximum Loading Height	30.4 ft / 9250 mm
Minimum Loading Height	9.11 ft / 3030 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	31.4 ft / 9560 mm
Maximum Vertical Wall Digging Depth	22.3 ft / 6770 mm
Bucket Digging Force - ISO	86100 lbf·ft / 383 kN
Stick Digging Force - ISO	68540 lbf·ft / 305 kN

Sustainability
Recyclability	98%

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.

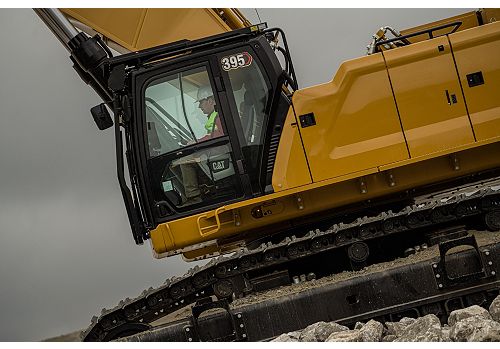

CAB
- High-resolution 254 mm (10") LCD touch screen monitor
- Heated seat with air-adjustable suspension (Deluxe only)
- Heated and cooled seat with auto adjustable suspension (Premium only)
- Sound suppressed cab with viscous mounts
- Automatic bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console, infinite with no tool
- Tilt-up left-side console
- 51 mm (2") orange seat belt
- Bluetooth integrated radio (including USB, aux port and microphone)
- 2 x 12V DC outlets
- Cup and storage compartments
- Openable two-piece front window (Premium optional)
- Upper radial wiper with washer (Deluxe only)
- Parallel wiper with washer (Premium only)
- Openable polycarbonate skylight hatch (Premium optional)
- LED dome light
- Floor welcome light
- Roller front sunscreen
- Roller rear sunscreen (Deluxe optional)
- Rear window emergency exit
- Washable floor mat
- Beacon Ready
CAT TECHNOLOGY
- VisionLink™
- Remote Flash
- Remote Troubleshoot
- Work tool recognition and tracking (PL161)
- Cat Grade with 2D
- Cat Assist
- Cat Payload
ELECTRICAL SYSTEM
- Maintenance-free 1,400 CCA batteries (x2)
- Centralized electrical disconnect switch
- Chassis light
ENGINE
- Three selectable modes: Power, Smart, and Eco
- Auto engine speed control
- Up to 4500m (14,760 ft) altitude capability
- 52°C (126°F) high-ambient cooling capacity
- -18°C (-0.4°F) cold start capability
- Hydraulic reverse fan
- Double element air filter with integrated pre-cleaner
- 3 vertical side-by-side cooling system
- Remote disable
- 95 Amp alternator
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Dedicated closed loop swing circuit
- Anti-reaction valve
- Auto hydraulic oil warmup
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
- Bio hydraulic oil capability
SAFETY AND SECURITY
- Caterpillar One Key security system
- 2D E-Fence
- Lockable fuel drain compartment
- Lockable external tool / storage box
- Lockable door, fuel, and hydraulic tank locks
- Lockable disconnect switch
- Service platform with anti-skid plate & recessed bolts
- Full handrail mount on platform
- Mirror package
- Signaling/warning horn
- Travel alarm
- Ground-level secondary engine shutoff switch
- Rearview and right-hand-sideview cameras
- Walkway
SERVICE AND MAINTENANCE
- Integrated vehicle health management system
- Auto lube ready
- Reversing cooling fan
- Grouped location of engine oil & fuel filters
- Scheduled Oil Sampling (S·O·S) ports
- QuickEvac maintenance ready
UNDERCARRIAGE AND STRUCTURES
- Long variable gauge undercarriage
- Grease lubricated track
- Swivel guard
- HD bottom guard
- HD travel motor guard
- Standard counterweight
- Towing eye on base frame

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat® dealer for details.
BOOMS AND STICKS
- 7.25 m (23'9") Mass boom
- 8.4 m (27'7") GP boom
- 10 m (32'10") Reach boom
- 2.92 m (9'7") GP stick
- 2.92 m (9'7") Mass stick
- 3.4 m (11'2") Mass stick
- 3.4 m (11'2") GP stick
- 3.7 m (12'2") GP stick
- 4.4 m (14'5") HD Reach stick
- 5.5 m (18'1") HD Reach stick
- Bucket linkage, HB2 type without lifting eye, Autolube ready
- Bucket linkage, HB2 type without lifting eye, Autolube ready
- Bucket linkage, JC type with lifting eye, Autolube ready
- Bucket linkage, JC type without lifting eye, Autolube ready
CAB
- Operator Protective Guards (OPG)
- Additional high-resolution LCD touch screen monitor for Cat® Grade Advanced 2D and 3D
- Cat® Stick Steer
- Auxiliary relay
CAT TECHNOLOGY
- Operator Coaching
- Cat Grade with 2D with Attachment Ready Option (ARO)
- Cat Grade with 3D (single or dual GNSS)
- Cat Grade 3D Ready
- Cat Grade Connectivity
- Cat Advanced Payload
- Cat Tiltrotator (TRS) integration
ELECTRICAL SYSTEM

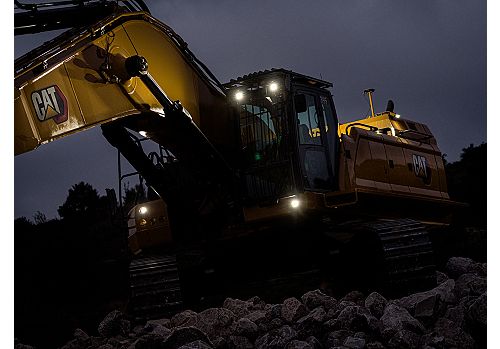

- LED boom and cab lights
- 1,800 lumen LED premium surround lights
ENGINE
- Cold start block heaters
- -32°C (-25°F) cold start capability
HYDRAULIC SYSTEM
- SmartBoom™
- Advanced tool control
- Medium-pressure auxiliary circuit
- Quick coupler circuit
- Hydraulic efficiency monitoring
SAFETY AND SECURITY
- Swing alarm
- 360° visibility
- Boom lowering check valve
- Stick lowering check valve
- Tilt-up walkway
- Inspection lighting
- Cat Command (remote control)
SERVICE AND MAINTENANCE
- Fast-fill fuel system
- QuickEvac maintenance ready
- Electric refueling pump with auto shutoff
UNDERCARRIAGE AND STRUCTURES
- 650mm (26") HD double grouser track shoes
- 750mm (30") HD double grouser track shoes
- 900mm (35") HD double grouser track shoes
- Three-piece segmented track guiding guards
- Two-piece segmented track guiding guards
- Counterweight with removal device
OTHER OPTIONAL CONFIGURATION

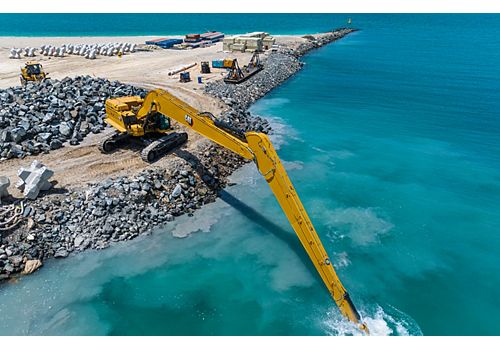

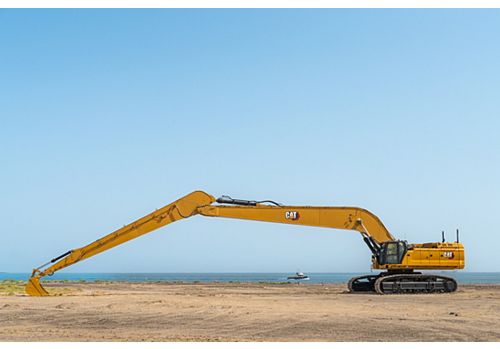

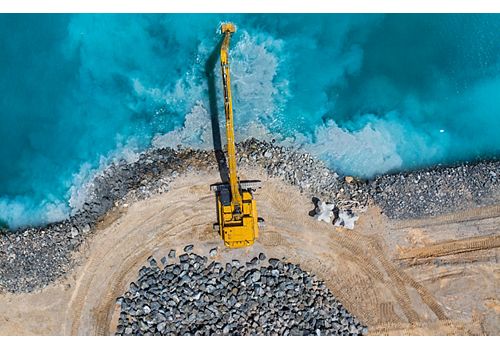

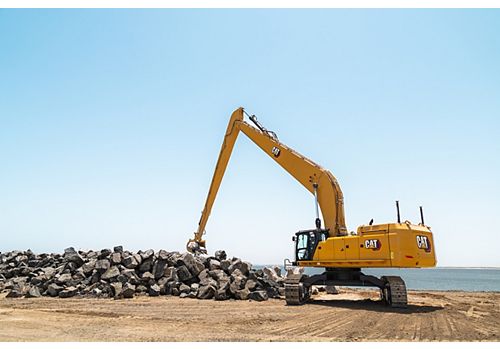

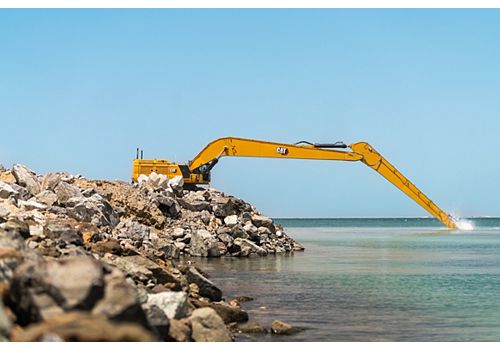

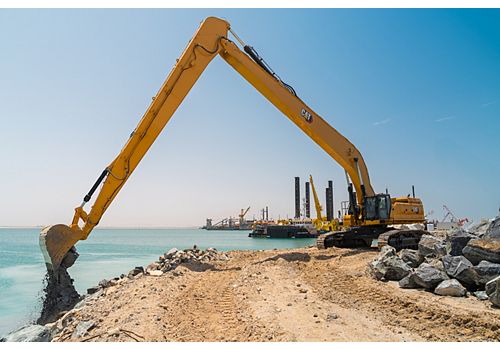

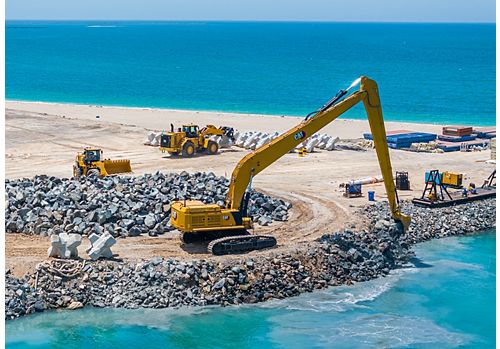

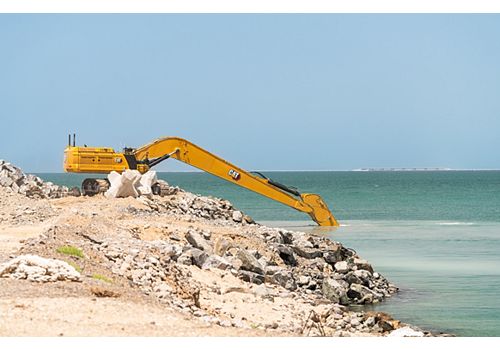

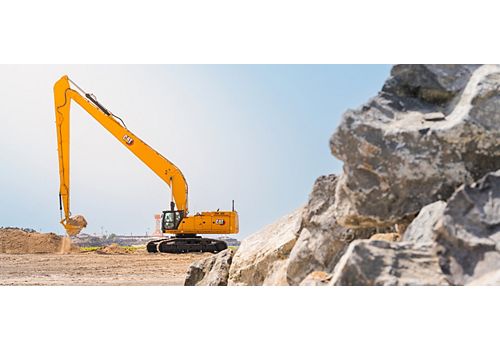

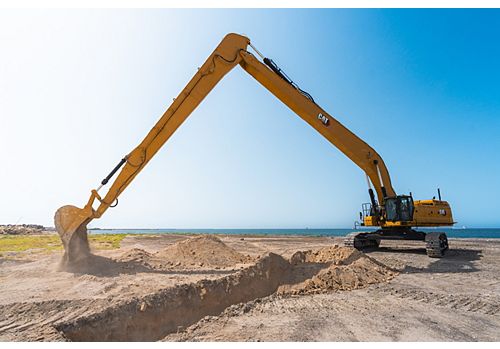

- Long Reach (LRE)

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade for Excavators (2D & 3D)

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Cat 2D E-fence for Excavators

Command

Cat® Command helps keep operators out of harm’s way while maintaining the control, precision, and productivity today’s jobs demand. From line-of-sight remote control to remote stations, semi-autonomous processes, and fully autonomous solutions, Command lets you choose the right level of capability and scale as your operation evolves.

Model
Cat Command Remote Control for Construction

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting

Payload

Keep production targets on track using Cat® Payload technologies. On-the-go load weighing on excavators, loaders and trucks helps you hit precise load targets every time with reduced loading time. Track production right from the cab or remotely when combined with VisionLink technologies.

Model
Cat Payload for Excavators

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H215 S	290 to 510	16280 lb / 7400 kg	95 gpm / 360 L/min

Multi-Processor with Demolition Jaws

Used to reduce any strength concrete, with and without rebar.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP365 Demolition Jaw	2.1 s	65 tons	1.6 s

Multi-Processor with Pulverizer Jaws

Used to completely separate rebar from concrete and reduce concrete to the smallest size; also has great picking capability.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP365 Pulverizer Jaw	2.1 s	65 tons	1.6 s

Assist

Cat® Assist technologies are advanced onboard systems designed to enhance operators' confidence, speed, and accuracy, regardless of their experience level. By integrating automation and user-friendly interfaces, Cat Assist helps reduce operator fatigue and the risk of errors, allowing operators to efficiently perform tasks such as loading, digging, and grading.

Model
Cat Lift Assist for Excavators

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
Operator Coaching for Excavators

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Weight - Boom Mount	Weight - Stick Mount
S3070 Rotating Scrap & Demolition Shear	15578 lb / 7065 kg	15259 lb / 6920 kg
S3090 Rotating Scrap & Demolition Shear	19889 lb / 9020 kg	19316 lb / 8760 kg

Multi-Processor with Concrete Cutter Jaws

For demolition and cutting of concrete structures.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP365 Concrete Cutter Jaw	2.1 s	65 tons	1.6 s

Multi-Processor with Shear Jaws

Used to reduce angle iron, channel iron, beams, pipe, rebar, cable and tires.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP365 Shear Jaw	2.1 s	65 tons	1.6 s
