AP400
- Operating weight with SE47 FM
- 30000 lb / 13618 kg
- Maximum Throughput Capacity
- 853 ton(US)/h / 774 tonnes/hr
- Fuel Tank
- 53 gal (US) / 200 l

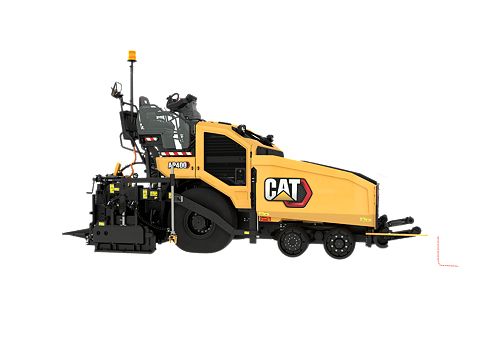

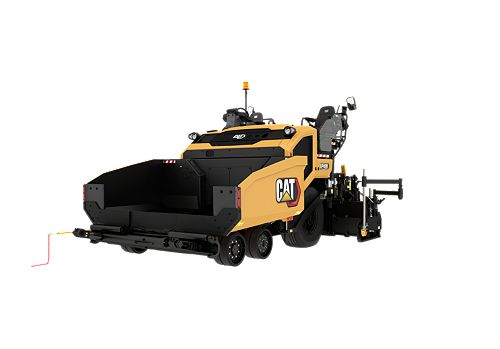

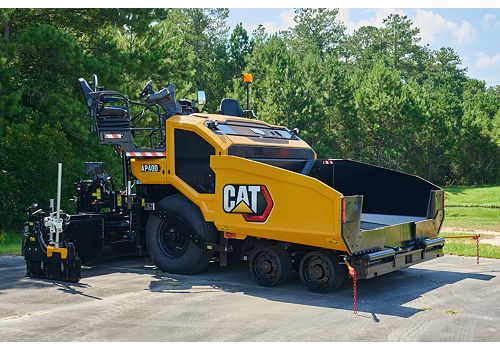

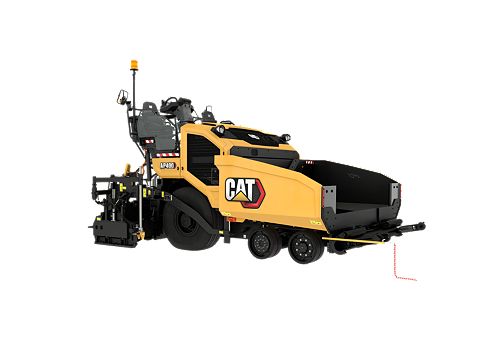

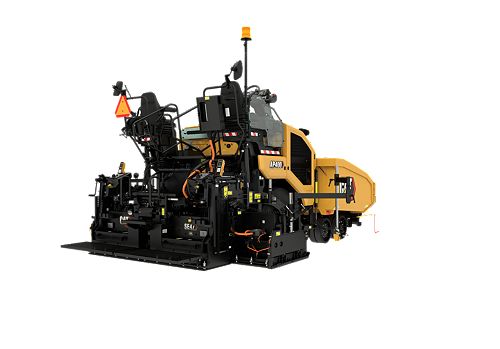

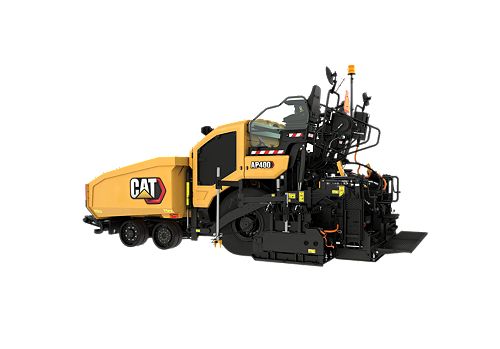

The AP400 is a wheel-type asphalt paver that provides easy transport, application versatility, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
| Dimensions | |
|---|---|
| Paving Range with SE47 FM | 2.4 m - 5.9 m (8' - 19' 6") |
| Paving Range with SE47 V | 2.4 m - 6.1 m (8' - 20') |
| Truck Entry Height | 21 in / 544 mm |
| Operating Length | 19 ft / 5.8 m |
| Operating Width | 10.75 ft / 3.3 m |
| Overall Height | 11 ft / 3.2 m |
| Transport Length | 18.1 ft / 5.5 m |
| Transport Width | 8.5 ft / 2.5 m |
| Transport Height | 8.6 ft / 2.5 m |
| Engine | |
|---|---|
| Gross Power | 120 hp / 90 kW |
| Engine Model | Cat C3.6 |
| Operating Specifications | |
|---|---|
| Maximum Paving Speed | 200 ft/min / 61 m/min |
| Maximum Travel Speed | 10 mile/h / 16 km/h |
| Maximum Throughput Capacity | 853 ton(US)/h / 774 tonnes/hr |
| Weights | |
|---|---|
| Operating weight with SE47 FM | 30000 lb / 13618 kg |
| Operating weight with SE47 V | 29800 lb / 13510 kg |
| Shipping Weight - Paver Only | 23327 lb / 10581 kg |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 53 gal (US) / 200 l |
| DEF Tank | 5 gal (US) / 19 l |
| Cooling System - Total | 6.3 gal (US) / 24 l |
| Hydraulic Oil Tank | 32 gal (US) / 121 l |
| Washdown Spray Tank | 8.5 gal (US) / 32 l |
