Off-Highway Trucks Bare Chassis

Cat® bare chassis off-highway trucks provide the custom solution for specialized applications such as water trucks using the proven components of Cat off-highway trucks and the support of Caterpillar and your Cat dealer.

Model	LRC Bare Chassis Weight without Hoist	Tractor ROPS	Nominal Water Tank Capacity
770 Bare Chassis	54357 lb / 24656 kg	77430 lb / 35122 kg	9000 gal (US) / 34000 l

Demolition Excavators

Cat® demolition excavators deliver the high reach, exceptional stability, and precision customers require with the comfort and control operators expect. Engineered for demanding teardowns, they feature powerful hydraulics, reinforced structures, and advanced technology for safe, efficient operation. Spacious cabs, intuitive controls, and versatile attachments keep operators productive on jobs of any scale, anywhere in the world.

Model	Operating Weight	Maximum Pin Height at Stick Nose	Maximum Weight at Stick Nose
340 UHD	122600 lb / 55600 kg	72.2 ft / 22 m	8160 lb / 3700 kg

Long Reach Excavation

Cat® long reach excavators are built for specialized jobs that require extended reach and stability, including dredging waterways, finishing slopes, deep trenching, port maintenance, coastal protection, mining reclamation and wetland restoration. Available worldwide, they combine fuel efficiency, durable components and advanced hydraulics for precise, productive performance in demanding environments.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
340 Long Reach	346 hp / 258.3 kW	96500 lb / 43800 kg	42.8 ft / 13050 mm

Track Asphalt Pavers

Track-equipped asphalt pavers offer superior traction for jobs that require wide pulls or large mix-delivery vehicles.

Model	Paving Range with SE60 V	Operating weight with SE60 V	Maximum Throughput Capacity
AP1055	3.0 m - 7.65 m (9' 10" - 25')	45087 lb / 20451 kg	1602 ton(US)/h / 1766 tonnes/hr

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model	Maximum Gross Power	Operating Weight	Bucket Capacities
903D	42 hp / 31 kW	9414 lb / 4270 kg	0.6-1.0 m3 (0.8-1.3 yd3)
906	74.7 hp / 55.7 kW	12628 lb / 5730 kg	0.75-1.55 m³ (1.0-2.0 yd³)
908	74.7 hp / 55.7 kW	14617 lb / 6632 kg	0.75-1.55 m³ (1.0-2.0 yd³)
906M	73.2 hp / 54.6 kW	12346 lb / 5600 kg	0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler	73.2 hp / 54.6 kW	12758 lb / 5789 kg	0.75-1.5 m³ (1.0-2.0 yd³)
907M	73.2 hp / 54.6 kW	12677 lb / 5750 kg	0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler	73.2 hp / 54.6 kW	12958 lb / 5880 kg	0.75-1.5 m³ (1.0-2.0 yd³)
908M	73.2 hp / 54.6 kW	14032 lb / 6365 kg	0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler	73.2 hp / 54.6 kW	14402 lb / 6535 kg	0.9-1.5 m³ (1.2-2.0 yd³)

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model	Engine Power - ISO 14396	Operating Weight Maximum	Maximum Travel Speed
M314	134 hp / 100 kW	39680 lb / 18000 kg	23 mile/h / 37 km/h
M319	174 hp / 129 kW	46410 lb / 21050 kg	21.7 mile/h / 35 km/h
M316	148 hp / 110 kW	36990 lb / 16780 kg	21.7 mile/h / 35 km/h
M318	174 hp / 129 kW	43980 lb / 19950 kg	21.7 mile/h / 35 km/h
M320	174 hp / 129 kW	46740 lb / 21200 kg	21.7 mile/h / 35 km/h
M322	174 hp / 129 kW	54770 lb / 24845 kg	18.6 mile/h / 30 km/h

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model	Net Power	Operating Weight	Dig Depth
305 CR - Tier 4 / Stage V	45 hp / 33.6 kW	12688 lb / 5754 kg	144.5 in / 3670 mm
306 CR	55.9 hp / 41.7 kW	15766 lb / 7150 kg	162 in / 4110 mm

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacity	Operating Weight
226D3	67.1 hp / 50.1 kW	1550 lb / 705 kg	5849 lb / 2653 kg
232D3	67.1 hp / 50.1 kW	1900 lb / 865 kg	6514 lb / 2955 kg
236D3	67.2 hp / 50.1 kW	1800 lb / 820 kg	6567 lb / 2979 kg
242D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7138 lb / 3238 kg
246D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7478 lb / 3392 kg
262D3	74.3 hp / 55.4 kW	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3 XE	110 hp / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacities - 35% Tipping Load	Operating Weight
239D3	67.1 hp / 50.1 kW	1530 lb / 695 kg	7434 lb / 3372 kg
249D3	67.1 hp / 50.1 kW	1740 lb / 790 kg	7831 lb / 3552 kg
259D3	74.3 hp / 55.4 kW	2010 lb / 915 kg	8987 lb / 4076 kg
299D3	98 hp / 73 kW	3480 lb / 1580 kg	11464 lb / 5200 kg
299D3 XE	110 hp / 82 kW	3560 lb / 1620 kg	11756 lb / 5333 kg
299D3 XE Land Management	110 hp / 82 kW	4340 lb / 1975 kg	12764 lb / 5790 kg

Small Dozers

Under 105 hp (78 kW), Cat® small dozers are designed to optimize speed, transportability, maneuverability, versatility and finish grading accuracy. These crawler dozers are ideal for residential construction performing such tasks as clearing and grading lots, sloping the sides of roads, back-filling and final grade work for landscaping and driveway construction. Cat's compact dozers are available in various weights for whatever small job is needed.

Model	Engine Model	Power - Net
D1	Cat C3.6	80 hp / 59.7 kW
D2	Cat® C3.6	92 hp / 68.8 kW
D3	Cat® C3.6	104 hp / 77.6 kW

Small Wheel Loaders

Cat® small wheel loaders deliver superior performance, fast cycle times and versatility to help you move more material. The optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. Dedicated configurations for applications such as waste handling, aggregate handling and more, make the Cat small wheel loader ideal for specific jobsite demands. Enjoy all day comfort in the spacious cab which features ergonomic controls and a rear view camera.

Model	Maximum Gross Power	Operating Weight	Bucket Capacities
910	110 hp / 82 kW	18102 lb / 8109 kg	1.3-3.5 m3 (1.7-4.6 yd3)
914	110 hp / 82 kW	19103 lb / 8668 kg	1.3-3.5 m3 (1.7-4.6 yd3)
920	121 hp / 90 kW	21742 lb / 9865 kg	1.3-3.5 m3 (1.7-4.6 yd3)

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
313F L	92 hp / 68 kW	33080 lb / 15000 kg	19.8 ft / 6040 mm
315F L	97 hp / 72 kW	37794 lb / 17140 kg	19.5 ft / 5950 mm
313 GC	73 hp / 54.3 kW	30400 lb / 13800 kg	19.8 ft / 6040 mm
313	108 hp / 80.9 kW	30400 lb / 13800 kg	19.2 ft / 5840 mm
315 GC	98 hp / 73.3 kW	34000 lb / 15400 kg	19.7 ft / 5990 mm
315	108 hp / 80.9 kW	34000 lb / 15400 kg	19.7 ft / 5990 mm
317 GC	119 hp / 89 kW	38000 lb / 17200 kg	21 ft / 6400 mm
317	133 hp / 98.9 kW	40200 lb / 18200 kg	21 ft / 6400 mm

Center-Pivot Backhoe Loaders

Cat® center-pivot backhoe loaders set the industry standard for operator comfort, exceptional performance and heavy lifting capability. These versatile machines are ideal for digging, excavating, trenching and more. Pair them up with our wide range of backhoe attachments to do even more with one machine.

Model	Maximum Gross Power – SAE J1995: 2014	Dig Depth - Standard	Operating Weight - Maximum
416	75 hp (56 kW) / 96 hp (71 kW)	14 ft / 4277 mm	24251 lb / 11000 kg
420	102 hp (76 kW) / 112 hp (84 kW)	14 ft / 4278 mm	24251 lb / 11000 kg
420 XE	102 hp (76 kW) / 112 hp (84 kW)	14 ft / 4278 mm	24251 lb / 11000 kg
430	118 hp (88 kW)	15.1 ft / 4612 mm	24251 lb / 11000 kg
440	130 hp (97 kW)	15.5 ft / 4718 mm	29321 lb / 13300 kg
450	145 hp (108 kW)	17 ft / 5185 mm	29321 lb / 13300 kg

Three Axle Articulated Trucks

Cat® articulated trucks haul a wide spectrum of material in a variety of applications and ground conditions. Simple operation and automotive style comfort along with combined service points and extended service intervals mean these dump trucks let you focus on your work spending less time and money on servicing.

Model	Engine Model	Rated Payload	Heaped (SAE 2:1)
745	Cat® C18	45.2 t / 41 t	33.4 yd³ / 26 m³

Cold Planer

Cat cold planers remove worn or deteriorated pavement to a specified grade and slope and leave a textured surface that can be immediately opened to traffic or overlayed with new asphalt.

Model	Milling Width	Operating Weight
PM310	39.4 in / 1000 mm	46770 lb / 21215 kg
PM312	48.2 in / 1225 mm	47407 lb / 21503 kg
PM313	51.2 in / 1300 mm	47522 lb / 21556 kg
PM620	79.1 in / 2010 mm	69575 lb / 31559 kg
PM820	79.1 in / 2010 mm	75152 lb / 34088 kg
PM822	88 in / 2235 mm	76202 lb / 34565 kg

Soil Compactors

The purpose built Cat® four wheel drive soil compactors maximize soil density through a tamping wheel tip design, machine weight impact and higher speeds for greater penetration.

Model	Engine Model	Net Power	Operating Weight
825K	C15 Cat	405 hp / 302 kW	78326 lb / 35528 kg

Tandem Vibratory Rollers

Cat Tandem Vibratory Rollers are available in a range of sizes and configurations to meet any application. Large double-drums are simple to set up for maximum compaction efficiency on any type of mix.

Model	Standard Compaction Width
CB1.7	35 in / 900 mm
CB1.8	39 in / 1000 mm
CB13	79 in / 2000 mm
CB15	84 in / 2130 mm
CB16	84 in / 2130 mm
CB8	67 in / 1700 mm

Pneumatic Rollers

Cat Pneumatic Rollers are ideal for applications like wear courses and binder courses as well as compaction of natural soils and materials with lime or cement.

Model	Operating Weight - Standard Machine Empty	Operating Weight - Maximum Ballast	Compaction Width
CW34	22050 lb / 10000 kg	59525 lb / 27000 kg	82 in / 2090 mm

Vibratory Soil Compactors

Cat Vibratory Soil Compactors are durable and reliable. They offer high compaction performance, speed and gradeability to maximize productivity on a wide range of applications.

Model	Operating Weight - With Cab	Compaction Width
CP12	26266 lb / 11914 kg	84 in / 2134 mm
CS12	25353 lb / 11500 kg	84 in / 2134 mm
CP14	32203 lb / 14607 kg	84 in / 2134 mm
CS14	31405 lb / 14245 kg	84 in / 2134 mm
CP16	36390 lb / 16506 kg	84 in / 2134 mm
CS16	35589 lb / 16143 kg	84 in / 2134 mm
CS19	41641 lb / 18888 kg	84 in / 2134 mm

Large Excavators

Cat® large excavators combine the performance and reliability customers demand with the comfort and control operators need. Advanced hydraulics, powerful yet fuel-efficient engines, and factory-integrated technology help you move more material and finish jobs on time. Spacious cabs, intuitive controls, and proven durability keep operators productive and comfortable from the first cut to the last load, anywhere in the world.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
395	542 hp / 404 kW	207400 lb / 94000 kg	31.9 ft / 9670 mm

Wheel Asphalt Pavers

Wheel-equipped asphalt pavers offer superior jobsite mobility for applications that require a lot of paver movement and relocation.

Model	Paving Range with SE60 FM	Operating weight with SE60 FM	Maximum Throughput Capacity
AP1000	3.0 m - 7.8 m (10' - 25' 6")	42620 lb / 19332 kg	1766 ton(US)/h / 1602 tonnes/hr

Motor Graders

Cat® Motor Graders are built to deliver precision and performance on road construction, road maintenance, site preparation, and material moving projects. Backed by decades of Caterpillar design expertise, these machines offer exceptional grading accuracy and durability in a range of applications—from highway building and urban infrastructure to large-scale mining and heavy-duty earthmoving. Available in multiple sizes to match your specific jobsite needs, Cat Motor Graders feature advanced technology to boost operator productivity and grading efficiency. Enhance machine performance with Cat® Motor Grader attachments designed to dig, spread, plow, and precisely meet grade specifications across varying terrain and material types.

Model	Operating Weight - Typically Equipped	Blade Width
140 / 140 AWD LVR	44613 lb / 20236 kg	12 ft / 3.7 m
14	57250 lb / 25968 kg	14 ft / 4.3 m
16	71454 lb / 32411 kg	16 ft / 4.9 m
18	74324 lb / 33713 kg	18 ft / 5.5 m
24	165314 lb / 74985 kg	24 ft / 7.3 m
140 GC / 140 GC AWD - Tier 4 / Stage 5	38912 lb / 17650 kg	12 ft / 3.7 m
140 / 140 AWD JOY	42647 lb / 19344 kg	12 ft / 3.7 m
150 / 150 AWD JOY	43950 lb / 19935 kg	12 ft / 3.7 m
140 Next Gen	42543 lb / 19531 kg	12 ft / 4267 mm
160 Next Gen	43767 lb / 19853 kg	14 ft / 4267 mm
120	37106 lb / 16831 kg	12 ft / 3.7 m

Coal Bowl Scrapers

Cat® coal bowl scrapers use a high volume bowl designed to help the power generation industry move low density loose coal within the power generation facility.

Model	Flywheel Power - Tractor/Scraper	Scraper Capacity - Heaped	Top Speed - Loaded
637K	425 kW (570 hp)/216 kW (290 hp)	50 yd³ / 38 m³	34.7 mile/h / 55.8 km/h

Elevating Scrapers

Cat® elevating scrapers are a self-loading hauling system with the added ability to mix and homogenize material. Elevator scrapers also excel at fine finish grading work.

Model	Flywheel Power - Tractor/Scraper	Scraper Capacity - Heaped	Top Speed - Loaded
623K	304 kW (407 hp)	23 yd³ / 17.6 m³	33.5 mile/h / 53.9 km/h

Track Loaders

Save time and money with one machine for land clearing, digging, grading, truck loading, slope work and more. Crawler loaders have less ground pressure and better traction letting you start jobs earlier and work longer regardless of ground conditions. Waste Handler, Ship Hold and Partial Steel Mill configurations are available.

Model	Flywheel Power	Operating Weight	Capacity - General Purpose
973K	275 hp / 205 kW	63900 lb / 28985 kg	4.2 yd³ / 3.2 m³

Medium Dozers

For over 100 years, Caterpillar has made track-type tractors known for quality, durability, and innovation. Our unique elevated sprocket design makes Cat® dozers versatile and agile machines. They can handle the precise work of finish grading, a day of heavy-duty pushing, and everything in between. Pair any model with the machine technology features to reduce operator input, improve safety, and let the bulldozer do the heavy work.

Model	Engine Model	Operating Weight
D5	Cat C7.1	42263 lb / 19170 kg
D6	Cat C9.3B	50733 lb / 23012 kg
D6 XE	Cat C9.3B	51333 lb / 23285 kg
D7	Cat C9.3B	65644 lb / 29776 kg
D4	Cat C4.4	29259 lb / 13272 kg
D8	Cat® C15	87083 lb / 39500 kg
D6K2	Cat C4.4	29258 lb / 13271 kg

Medium Wheel Loaders

Cat® medium wheel loaders are an essential tool for any construction, quarry, aggregate, industrial or waste jobsite. For more than 60 years, they've been built to withstand tough conditions and tasks like bank loading, material handling, truck loading, hopper feeding, and stockpiling. Medium wheel loaders are compatible with Caterpillar work tools like the Cat Performance Series Buckets. Together these can improve material retention, reduce dig times, and enhance fill factors. Additionally, advanced technologies such as Cat Payload, Cat Detect, and Cat Command drive to improve site safety, manage payload, and operate machines remotely in hazardous environments.

Model	Net Power - ISO 9249	Operating Weight	Bucket Capacities
950 GC	225 hp / 168 kW	41554 lb / 18849 kg	2.9-4.4 m³ (3.75-5.75 yd³)

Wheel Dozers

Cat® wheel dozers offer high production capabilities, along with mobility and versatility. These utility machines are designed for demanding work and are a great choice for applications including surface mining, cleanup, stock piles, road maintenance, reclamation and jobs where travel is required between multiple sites.

Model	Engine Model	Operating Weight – Straight Blade (Tier 4 Final/Stage V)	Net Power - SAE J1349:2011
824	Cat® C15	74966 lb / 34004 kg	405 hp / 302 kW

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
320	172 hp / 128.5 kW	49800 lb / 22600 kg	22 ft / 6720 mm
323	172 hp / 128.5 kW	55100 lb / 25000 kg	22.1 ft / 6730 mm
326	201 hp / 149.8 kW	56400 lb / 25600 kg	22.4 ft / 6820 mm
330	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm

Open Bowl Scrapers

Cat® open bowl wheel-tractor scrapers are a high production hauling solution with a broad material appetite. Open bowl scrapers are available as a self-loading, push-loaded or push-pull hauling system.

Model	Scraper Capacity - Heaped	Top Speed - Loaded
621K	24 yd³ / 18.4 m³	33.5 mile/h / 53.9 km/h
627K	24 yd³ / 18.4 m³	33.5 mile/h / 53.9 km/h
631K	34 yd³ / 26 m³	34.7 mile/h / 55.8 km/h
637K	34 yd³ / 26 m³	34.7 mile/h / 55.8 km/h

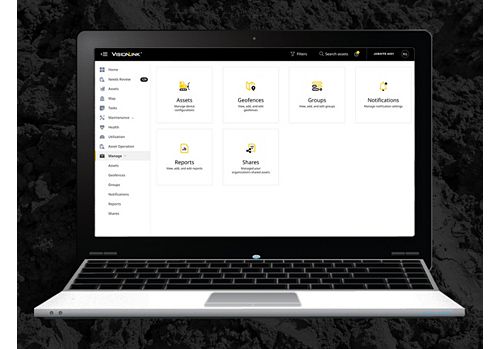

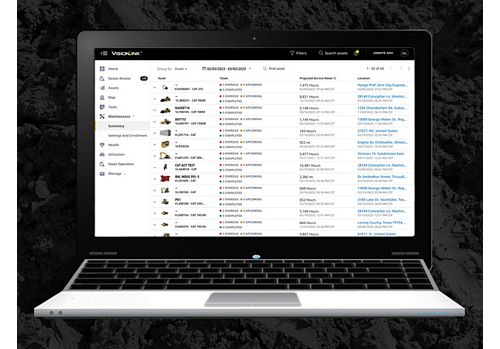

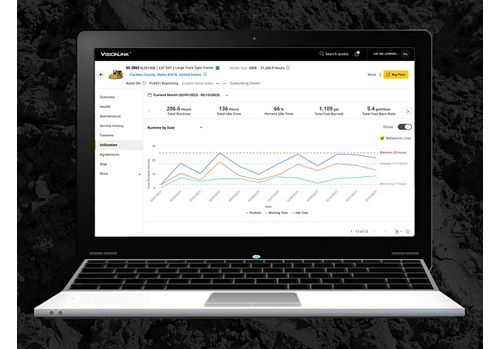

VisionLink™
