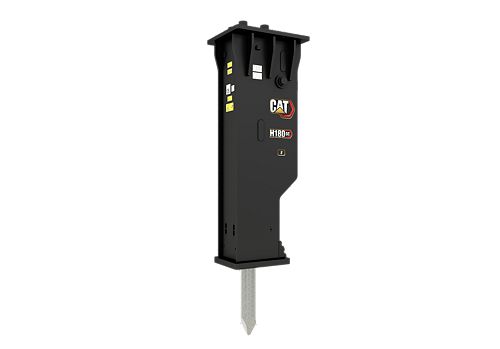

H180 GC S

Minimum Operating Weight: 8616 lb / 3908 kg
Rated Flow - Minimum: 66 gal/min / 250 l/min
Rated Flow - Maximum: 79 gal/min / 300 l/min

Cat® H180 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H180 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H180 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat GC S Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye) Cat GC S Hammer - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye)

Specifications
Related Products

Product Specifications
Blows per Minute	200 to 400
Minimum Operating Weight	8616 lb / 3908 kg
Rated Flow - Minimum	66 gal/min / 250 l/min
Rated Flow - Maximum	79 gal/min / 300 l/min
Minimum Operating Pressure	2030 psi / 14000 kPa
Maximum Operating Pressure	2320 psi / 16000 kPa
Tool Shaft Diameter	7.1 in / 180 mm
Minimum Carrier Weight	88100 lb / 40 t
Maximum Carrier Weight	121200 lb / 55 t

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm
340 - Tier 4 / Stage V	346 hp / 258.3 kW	83100 lb / 37700 kg	26.9 ft / 8210 mm
350 - Tier 4 / Stage V	413 hp / 308 kW	105100 lb / 46000 kg	26.11 ft / 8210 mm
352	443 hp / 330 kW	107800 lb / 48900 kg	26.11 ft / 8210 mm
