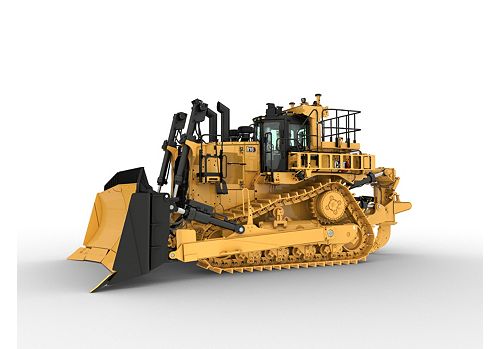

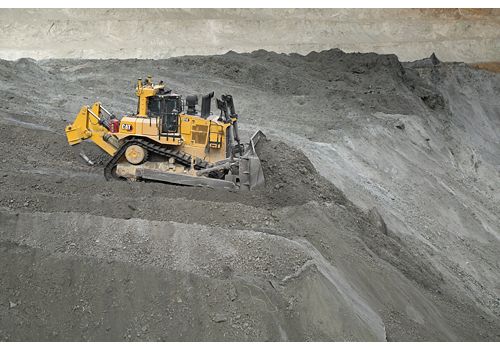

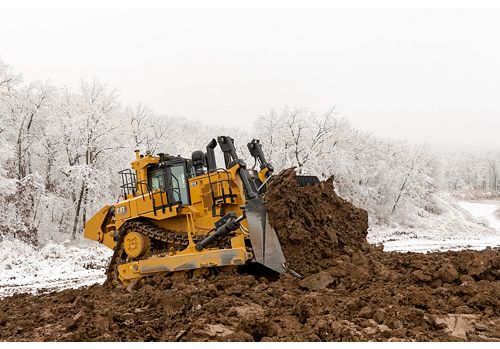

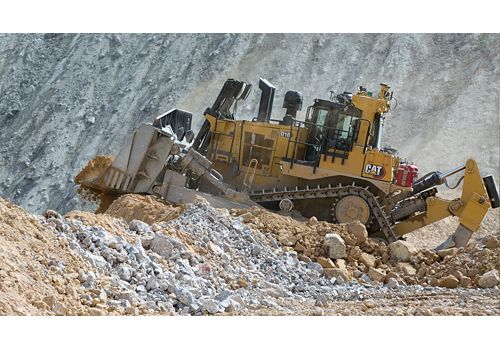

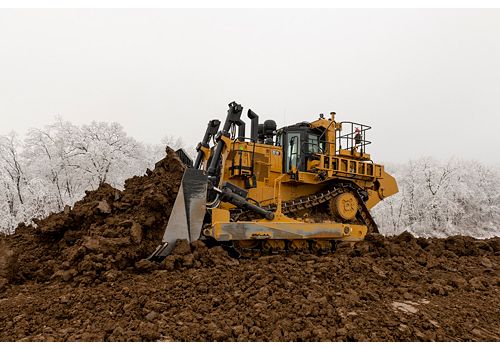

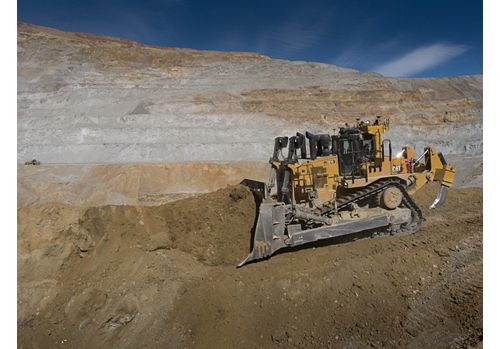

D10

Engine Power - Net SAE J1349/ISO 9249** - Forward
602 HP / 449 kW
Operating Weight
154888 lb / 70256 kg
Width - Shoe
24 in / 610 mm

The Cat® D10 Dozer is innovative by design — developed by a team of experts who follow a design approach that incorporates feedback from the field with industry-leading technologies to deliver a dozer that continues to advance with every model. The new D10 is no exception. It’s more efficient, so it burns less fuel. It’s more serviceable, so you’ll experience less downtime. It’s more durable, so you’ll spend less over its lifetime. And it’s more productive — so you’ll spend less time putting more profitability to your bottom line.

Loan Calculator Credit Application
Build & Quote
alt 1
D10 Key Features D10 Technical Specifications D10 Brochure D10 Poster Article in October 2023 issue of World Coal: "Continuing the Legacy"
Engine - U.S. EPA Tier 4 Final/EU Stage V
Engine Model Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward 602 HP / 449 kW
Engine Power - Gross SAE J1995* - Forward 631 HP / 471 kW
Engine Power - Gross SAE J1995* - Reverse 766 HP / 571 kW
Engine Power - ISO 14396* - Forward 620 HP / 462 kW
Engine Power - ISO 14396* - Reverse 754 HP / 563 kW
Engine Power - Net SAE J1349/ISO 9249** - Reverse 722 HP / 538 kW
Displacement 1648 in³ / 27 l
Stroke 6 in / 152 mm
Bore 5.4 in / 137 mm
Emissions U.S. EPA Tier 4 Final/EU Stage V
Note (1) *Excludes all fan losses.
Note (2) All Engine ratings apply at 1,800 rpm.
Note (3) Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4) Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5) **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.
Engine - U.S. EPA Tier 2 Equivalent
Engine Model Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward 603 HP / 450 kW
Engine Power - Net SAE J1349/ISO 9249** - Reverse 722 HP / 538 kW
Engine Power - Gross SAE J1995* - Forward 631 HP / 471 kW
Engine Power - Gross SAE J1995* - Reverse 766 HP / 571 kW
Engine Power - ISO 14396* - Forward 622 HP / 464 kW
Engine Power - ISO 14396* - Reverse 756 HP / 564 kW
Displacement 1648 in³ / 27 l
Bore 5.4 in / 137 mm
Stroke 6 in / 152 mm
Emissions U.S. EPA Tier 2 Equivalent
Note (1) *Excludes all fan losses.
Note (2) All Engine ratings apply at 1,800 rpm.
Note (3) Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4) Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5) **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.
Fuel Tank Capacities
Fuel Tank - Usable Volume 323.3 gal (US) / 1224 l
Fuel Tank - Total Volume 335.2 gal (US) / 1269 l
FLUID CAPACITIES
Cooling System Refill – Tier 4 Final Engine 46.2 gal (US) / 175 l
Engine Crankcase Sump 27.2 gal (US) / 103 l
Power Train - Total Volume 81.4 gal (US) / 308 l
Power Train - Refill Volume 74.8 gal (US) / 283 l
Final Drives (each) 12.2 gal (US) / 46 l
Track Roller Frames (each) 16.9 gal (US) / 64 l
Pivot Shaft Oil 9.5 gal (US) / 36 l
Hydraulic System Tank 32.2 gal (US) / 122 l
Weights
Operating Weight 154888 lb / 70256 kg
Shipping Weight 111739 lb / 50684 kg
Note (1) D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Note (2) D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes.
Hydraulic Controls
Pump Type Variable displacement piston
Pump Output - Implement 112 gal/min / 424 l/min
Note (1) Implement Pump output measured are 2,010 engine rpm and 7000 kPa (1,015 psi).
Fan Pump 21.7 gal/min / 82 l/min
Note (2) Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi).
Tilt Cylinder Flow - Rod End Flow 112 gal/min / 424 l/min
Tilt Cylinder Flow - Head End Flow 63.4 gal/min / 240 l/min
Lift Cylinder Relief Valve Setting 4061.1 psi / 28000 kPa
Tilt Cylinder Relief Valve Setting 3872.5 psi / 26700 kPa
Ripper - Lift - Relief Valve Setting 4061.1 psi / 28000 kPa
Ripper - Pitch - Relief Valve Setting 4061.1 psi / 28000 kPa
Tank Capacity 32.2 gal (US) / 122 l
Cylinder Sizing - Blade Lift - Bore 5.5 in / 140 mm
Cylinder Sizing - Blade Tilt - Bore 8.3 in / 210 mm
Cylinder Sizing - Ripper Shank Lift - Bore 8.3 in / 209.6 mm
Cylinder Sizing - Ripper Shank Angle - Bore 7.1 in / 180 mm
Cylinder Sizing - Blade Lift - Stroke 65.1 in / 1653 mm
Cylinder Sizing - Blade Tilt - Stroke 9.5 in / 241 mm
Cylinder Sizing - Ripper Shank Lift - Stroke 21.1 in / 535 mm
Cylinder Sizing - Ripper Shank Angle - Stroke 26 in / 660 mm
Note (3) Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Undercarriage
Shoe Type Extreme Service (ES)
Width - Shoe 24 in / 610 mm
Shoes/Side 44
Grouser Height 3.7 in / 93 mm
Pitch 10.2 in / 260 mm
Ground Clearance 28.5 in / 725 mm
Track Gauge 100.4 in / 2550 mm
Length - Track on Ground 152.8 in / 3880 mm
Ground Contact Area 7347 in² / 4.74 m²
Track Rollers/Side 8
Number of Carrier Rollers 1 per side (optional)
Steering and Brakes
Steering Type Hydraulically Applied Multiple-Disc Steering Clutch
Brake Type Spring Applied Multiple- Disc Brake
Brake Diameter 15.4 in / 392 mm
Brake Count 10
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes.
Standards
ROPS Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
FOPS Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
Sound Operator Sound Pressure Level (ISO 6396:2008): 78 db(A)
Note The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Sound (1) Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A)
Note (1) The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (2) The sound levels listed above include both measurement uncertainty and uncertainty due to production variation.
Note (3) The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A).
Transmission
1.0 Forward 2.5 mile/h / 4 km/h
1.5 Forward 3.4 mile/h / 5.4 km/h
2.0 Forward 4.5 mile/h / 7.2 km/h
2.5 Forward 6 mile/h / 9.6 km/h
3.0 Forward 7.8 mile/h / 12.5 km/h
1.0 Reverse 3.2 mile/h / 5.2 km/h
1.5 Reverse 4.2 mile/h / 6.7 km/h
2.0 Reverse 5.6 mile/h / 9 km/h
2.5 Reverse 7.5 mile/h / 12.1 km/h
3.0 Reverse 9.8 mile/h / 15.7 km/h
Transmission Clutch Diameter 17 in / 431.8 mm
Type Planetary powershift
Dimensions (Approximate)
Ground Clearance* 28.5 in / 725 mm
Track Gauge 100.4 in / 2550 mm
Width - Without Trunnions - 610 mm/24 in ES 130.4 in / 3311 mm
Width - Over Trunnions 148 in / 3759 mm
Height - FOPS Cab* 162.8 in / 4134 mm
Height - Top of Stack* 171.5 in / 4356 mm
Height - ROPS/Canopy* 173.5 in / 4406 mm
Note (1) *Includes grouser height for total dimensions on hard surfaces.
Length - Track on Ground 152.8 in / 3880 mm
Overall Length - Basic Tractor 209.6 in / 5324 mm
Length - With SU-Blade 292 in / 7416 mm
Length - With U-Blade 305.1 in / 7750 mm
Length - With Single-Shank Ripper 278.8 in / 7081 mm
Length - With Multi-Shank Ripper 285.1 in / 7241 mm
Overall Length - SU-Blade/SS Ripper 360.6 in / 9158 mm
Blades
10SU ABR - Capacity (SAE J1265) 24.2 yd³ / 18.5 m³
10SU ABR - Width (over end bits) 194.5 in / 4940 mm
10SU ABR - Height 83.5 in / 2120 mm
10SU ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry) 19.98 in / 507.47 mm
10SU ABR - Digging Depth - Blade Pitch: Nominal 25.23 in / 640.87 mm
10SU ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread) 30.08 in³ / 764.12 mm
10SU ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry) 66.14 in / 1680 mm
10SU ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread) 53.86 in / 1368 mm
10SU ABR - Ground Clearance - Maximum Tilt LH 56.3 in / 1430 mm
10SU ABR - Ground Clearance - Maximum Tilt RH 56.3 in / 1430 mm
10U ABR - Capacity (SAE J1265) 28.7 yd³ / 22 m³
10U ABR - Width (over end bits) 207.1 in / 5260 mm
10U ABR - Height 83.5 in / 2120 mm
10U ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry) 19.98 in / 507.5 mm
10U ABR - Digging Depth - Blade Pitch: Nominal 60 in / 640.9 mm
10U ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread) 30.1 in / 764.1 mm
10U ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry) 66.1 in / 1680 mm
10U ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread) 53.9 in / 1368 mm
10U ABR - Ground Clearance - Maximum Tilt LH 60.8 in / 1545 mm
10U ABR - Ground Clearance - Maximum Tilt RH 60.8 in / 1545 mm
10U ABR - Weights - Blade Weight* 23585 lb / 10698 kg
10U ABR - Weights - Total Operating Weight** (with blade and SS ripper) 154888 lb / 70256 kg
Note (1) Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees
Note (2) *Does not include hydraulic controls but includes blade cylinders, pusharms.
Note (3) **D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Ripper - Single Shank
Maximum penetration force * (shank vertical) 49233 lbf / 219 kN
Maximum penetration depth (standard tip) 59.2 in / 1504 mm
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole 36 in / 912 mm
Weight 14209 lb / 6445 kg
Note Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.
Ripper - Single Shank, Deep Ripping
Maximum penetration force * (shank vertical) 53055 lbf / 236 kN
Maximum penetration depth (standard tip) 78.3 in / 1988 mm
Weight 14548 lb / 6599 kg
Note Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Air Conditioner and Heater with Automatic Climate Control
    • Seat — Cloth with Air Suspension
    • Cab Glass — Single-Pane Tinted Safety
    • Rollover Protection System (ROPS)/Falling Object Protection (FOPS), Sound-Suppressed Cab
    • High-Definition Primary Touchscreen Display
    • Cab Access – Blade Push Arm Steps and Grab Handle
    • Visibility – Rearview Mirror
  • TECHNOLOGY
    • VIMS
    • Cat Product Link™ Elite (cellular)
    • Automated Blade Assist (ABA)
  • POWER TRAIN
    • Stator Clutch Torque Divider – Electronic Control
    • Powershift Transmission – Three-Speed Electronic Shift
    • High-Performance Single-Plane Cooling Package with Aluminum Radiator
    • Cat C27 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
  • UNDERCARRIAGE
    • Lifetime-Lubricated Rollers and Idlers
    • Suspension-Type Undercarriage
    • Track Shoe (ES): 610/710/785 mm (24, 28, 31 inch) Width
  • HYDRAULICS
    • Electronically Controlled, Load-Sensing Dozer Lift and Tilt
    • Electronically Enabled Blade – Quick Drop
    • Electronically Controlled, Load-Sensing Ripper Lift and Pitch
    • Dozer Blade – Dual Tilt, Guarded Lines
  • ELECTRICAL
    • 24V Electric Start
    • Batteries – 2× 200-Amp Hour, 12V
    • Battery Isolation - Single Pole
    • Lights – LED – 13 Positions
  • SERVICE AND MAINTENANCE
    • Replaceable Bearings – Push Arm and Ripper
    • Radiator Guard – Swing-Out Access Doors
    • Ground-Level Fast Fuel Fill
    • Ground-Level Electrical Service Station
    • Diagnostic Connector
    • Bottom Guards - Hinged with Release Catch
    • Scheduled Oil Sampling (S·O·S) Fluid Sampling Ports
    • Ecology Fluid Drains – All Compartments

Optional Equipment

  • OPERATOR ENVIRONMENT
    • Cab Glass – Dual-Pane Laminated Impact Safety
    • Visibility – Five Cameras: 360-Degree View and Ripper Camera
    • Cab Glass – High-Pressure Safety (40 psi/275 kPa)
    • MineStar™ Terrain Display
    • Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
    • Visibility – Dual Camera: Backup and Ripper
  • TECHNOLOGY
    • Autocarry™
    • Auto Ripper Control
    • Cat Product Link Elite Dual Mode (cellular + satellite)
    • Cat Grade with 3D Blade Control
    • MineStar Terrain Ready
    • MineStar Terrain with Blade Control
    • MineStar Command Remote Control Ready
  • POWER TRAIN
    • Hydraulic Cooling Fan – Automatic Reversing
  • UNDERCARRIAGE
    • Abrasion Rollers and Idlers
    • Cold Weather Rollers and Idlers
    • Carrier Roller
    • Track Links – Heavy Duty XL – Duralink
    • Track Shoe – Anti-Packing Round Hole
    • Sound-Suppression Undercarriage
    • Track Shoes : 610/710/786 mm (24/28/31 in) Width (various configurations)
  • HYDRAULICS
    • Ripper Pin Puller
  • ELECTRICAL
    • Lights – LED – Premium Package
    • Battery Isolation – Dual Pole
  • SERVICE AND MAINTENANCE
    • Ripper Lubrication – Grouped – Ground-Level Fill
    • Ground-Level – Fluid Fill and Drain Engine, Power Train, Hydraulic and Coolant
    • Sound Reduction Sealed Bottom Guards
    • Ripper Lubrication – Autolube with Ground-Level Fill
  • REAR ATTACHMENTS
    • Counterweight – Rear, 3 Weighted Plates
    • No Rear Attachment for customers who already have a rear attachment
    • Ripper – Single Shank with Pin Puller and Retrieval Hitch
    • Ripper – Single Shank with Pin Puller
    • Ripper – Multi Shank (three shank)
    • Counterweight – Rear, 4 Weighted Plates
    • Ripper – Multi Shank Deep with Pin Puller
  • BLADES
    • Semi-Universal (18.5 m3/24.2 yd3)
    • Universal (22 m3/28.7 yd3)
  • OTHER
    • Fire Suppression Ready
    • Fire Suppression Installed
  • WORKTOOLS BLADES
    • Cushion Dozer Blade
    • Coal Universal (52 m3/68 yd3)
    • Black Blade Paint
    • Abrasion Liners and Guards
    • Woodchip Universal (72.6 m3/95 yd3)
    • Reclaimation Universal (24.5 m3/32 yd3)
    • Coal Universal (46.1 m3/60.3 yd3)

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with 3D for Dozers

Health

Health records information on critical machine parameters fleet-wide. Data is available in real-time or historical database. Linked with on-board monitoring systems, Health provides wireless or wired transfer of this critical data to the service center for processing and review. Health may also be integrated into a production database for expanded analysis.

Model
Cat Health

Fleet

Fleet is a fully integrated mine monitoring and management system that uses technology to improve productivity and maximize commodity value. Real-time interaction with mobile field equipment allows mine management to improve machine utilization, track material movement and monitor daily production against plan. Fleet is fully scalable to accommodate a growing fleet of machines or the need for additional capability and functionality.

Model
Cat Fleet for Surface
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.

This website uses cookies and other tracking technologies to enhance user experience and analyze our site performance and traffic. Further information is available in our Privacy Policy

Close & Accept
