AP555
- Operating weight with SE47 FM
- 33689 lb / 15281 kg
- Maximum Throughput Capacity
- 1100 ton(US)/h / 1000 tonnes/hr
- Fuel Tank
- 53 gal (US) / 200 l

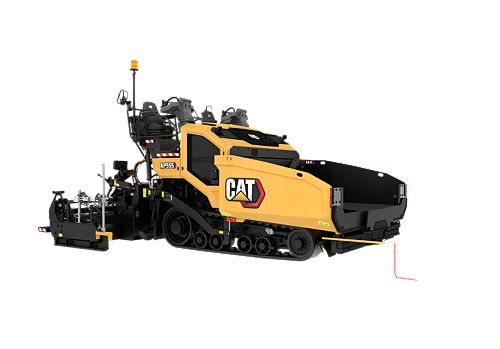

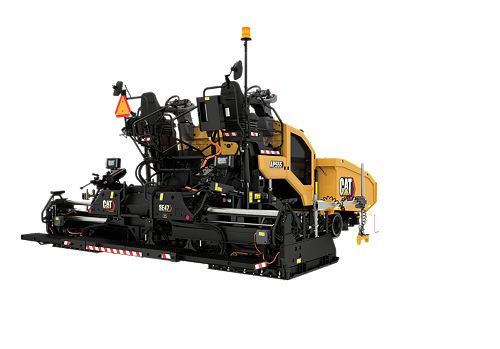

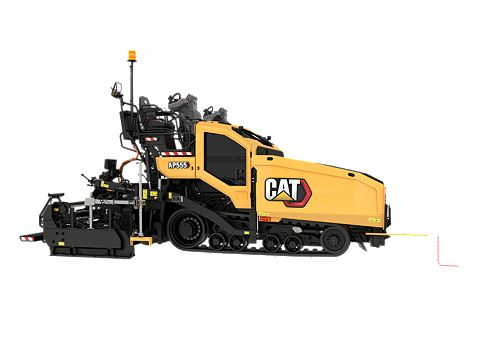

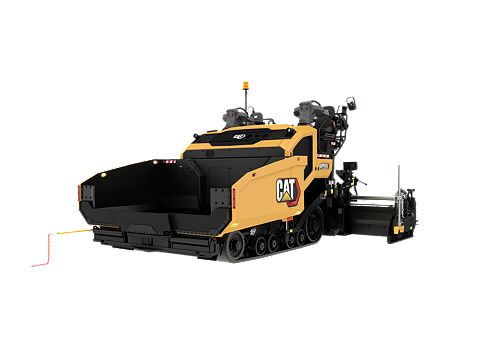

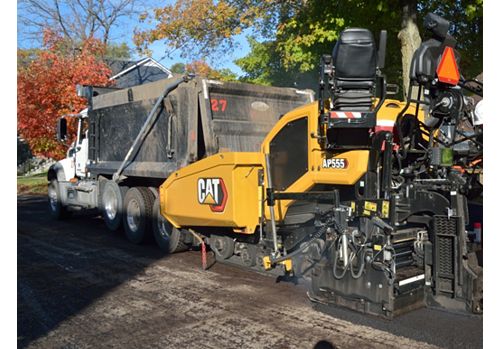

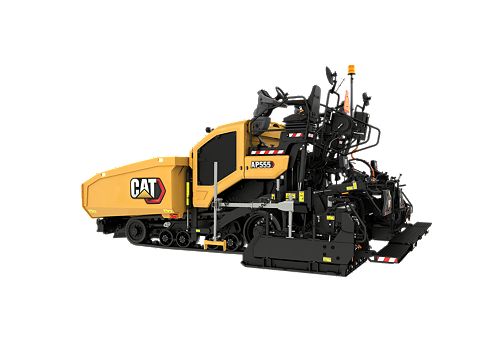

The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
| Dimensions | |
|---|---|
| Paving Range with SE47 FM | 2.4 m - 6.1 m (8' - 20') |
| Paving Range with SE47 V | 2.4 m - 6.2 m (8' - 20' 6") |
| Truck Entry Height | 22 in / 567 mm |
| Operating Length | 19.25 ft / 5.9 m |
| Operating Width | 10.75 ft / 3.3 m |
| Overall Height | 10.75 ft / 3.2 m |
| Transport Length | 18.5 ft / 5.6 m |
| Transport Width | 8.5 ft / 2.5 m |
| Transport Height | 825 ft / 2.5 m |
| Engine | |
|---|---|
| Engine Power (1) | 148 hp / 110 kW |
| Engine Model (1) | Cat C4.4 |
| Operating Specifications | |
|---|---|
| Maximum Paving Speed | 200 ft/min / 61 m/min |
| Maximum Travel Speed | 7 mile/h / 11 km/h |
| Maximum Throughput Capacity | 1100 ton(US)/h / 1000 tonnes/hr |
| Weights | |
|---|---|
| Operating weight with SE47 FM | 33689 lb / 15281 kg |
| Operating weight with SE47 V | 33448 lb / 15172 kg |
| Shipping Weight - Paver Only | 26993 lb / 12244 kg |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 53 gal (US) / 200 l |
| DEF Tank | 5 gal (US) / 19 l |
| Cooling System - Total | 6.3 gal (US) / 24 l |
| Hydraulic Oil Tank | 32 gal (US) / 121 l |
| Washdown Spray Tank | 8.5 gal (US) / 32 l |
