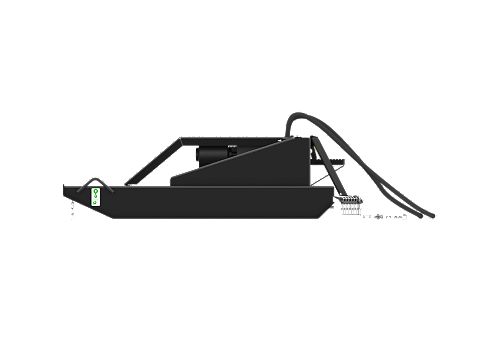

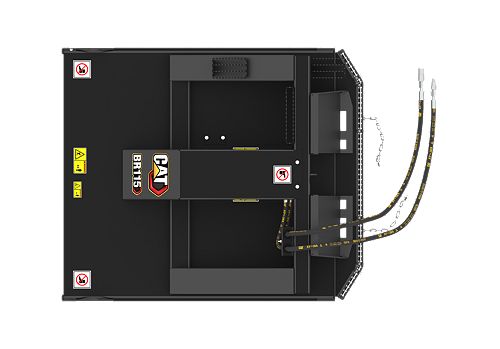

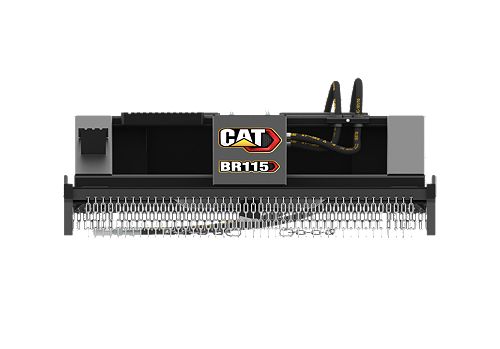

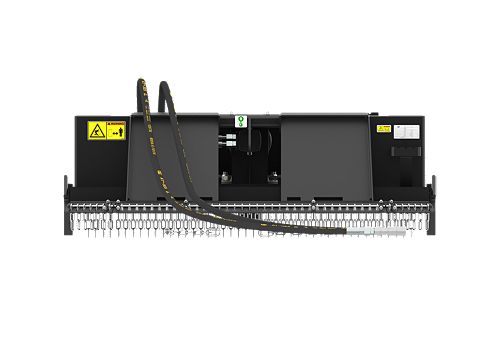

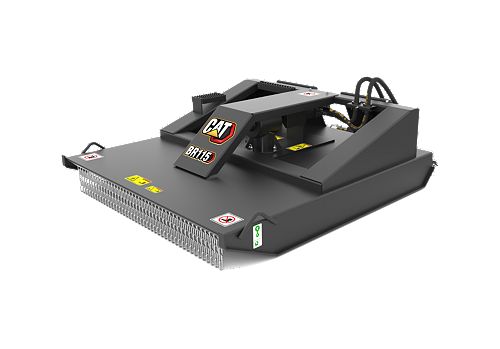

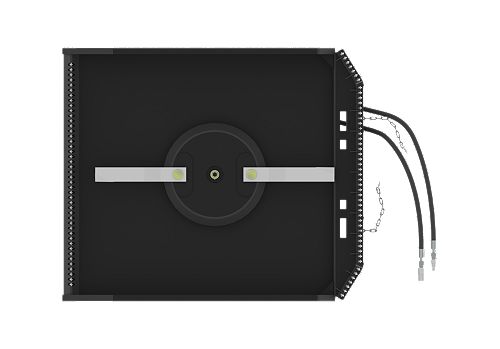

BR115

Overall Width
62 in / 1575 mm
Cutting Width
60 in / 1524 mm
Maximum Cutting Diameter
3 in / 76 mm

Cat® Brushcutters are used to clear land and overgrowth.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Brushcutters Product Brochure
Product Specifications
Overall Width 62 in / 1575 mm
Cutting Width 60 in / 1524 mm
Maximum Cutting Diameter 3 in / 76 mm
Required Hydraulics Standard Flow w/o Electrical
Overall Length 73 in / 1854 mm
Overall Height 21.3 in / 542 mm
Weight 939.2 lb / 426 kg
Optimal Hydraulic Flow 57-69 L/min (15-18 gpm)
Optimal Hydraulic Pressure 150-230 bar (2176-3340 psi)
Tip Speed (Depends On Flow) 3987-4821 mpm (10415-15897 fpm)
Motor Displacement 6.1 in³/rev / 100 cm³/rev
Drive Shaft Torque 152-233 N.m (112-172 lb/ft)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995:2014 Rated Operating Capacities - 35% Tipping Load Operating Weight
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg 7434 lb / 3372 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg 7831 lb / 3552 kg
