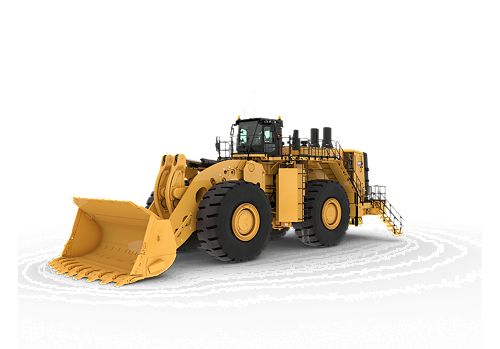

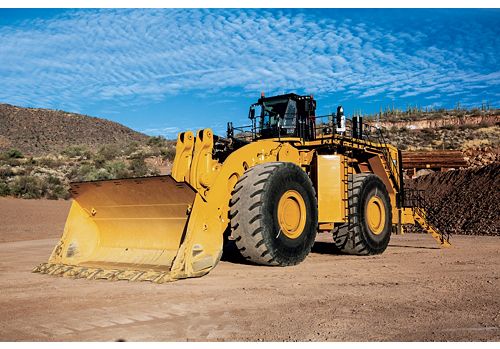

995

Operating Weight - Standard
543772 lb / 246651 kg
Operating Weight - High Lift
547675 lb / 248421 kg
Rack Back
4.9 s

Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.

Engine
Engine Model Cat® 3516E
Emissions U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent
Gross Power - SAE J1995 1870 HP / 1394 kW
Net Power - SAE J1349 - Standard Ambient 1739 HP / 1297 kW
Net Power - SAE J1349 - High Ambient 1696 HP / 1265 kW
Bore 6.7 in / 170 mm
Stroke 8.5 in / 215 mm
Displacement 4766 in³ / 78.1 l
Peak Torque - 1,200 rpm - SAE J1995 8549 lb/ft / 11591 N·m
Torque Rise 39%
Note (1) The power ratings apply when tested under the reference conditions for the specified standard.
Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.
Note (3) The gross power advertised is with the fan at maximum speed.
Operating Specifications
Operating Weight - Standard 543772 lb / 246651 kg
Operating Weight - High Lift 547675 lb / 248421 kg
Rated Payload - Standard Lift (Low to Moderate Digging Resistance) 60 ton (US) / 54.4 t
Rated Payload - Standard Lift (Moderate to High Digging Resistance) 50 ton (US) / 45.3 t
Rated Payload - High Lift (Low to Moderate Digging Resistance) 55 ton (US) / 49.9 t
Rated Payload - High Lift (Moderate to High Digging Resistance) 50 ton (US) / 45.3 t
Note *Please contact your local dealer to determine if your application is suitable for this increased rated payload.

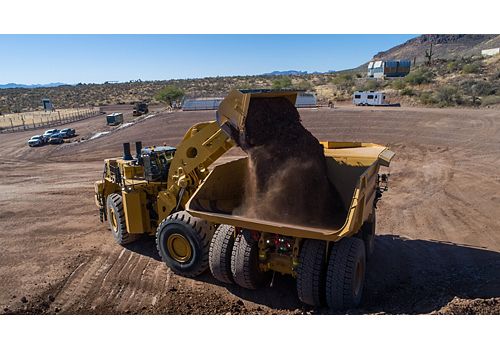

Cat Truck Match - Standard 785/789
Cat Truck Match - High Lift 789/793/794
Bucket Capacity Range 17.2-43.6 m3 (22.3-57 yd3)
Transmission
Transmission Type Cat Planetary Power Shift
Forward - 1 4.6 mile/h / 7.4 km/h
Forward - 2 8 mile/h / 12.9 km/h
Forward - 3 13.6 mile/h / 21.9 km/h
Reverse - 1 5 mile/h / 8.1 km/h
Reverse - 2 8.8 mile/h / 14.1 km/h
Reverse - 3 14.9 mile/h / 24 km/h
Direct Drive - Forward 1 Lock-up disables
Direct Drive - Forward 2 8.7 mile/h / 14 km/h
Direct Drive - Forward 3 15.2 mile/h / 24.5 km/h
Direct Drive - Reverse 1 Lock-up disables
Direct Drive - Reverse 2 9.6 mile/h / 15.5 km/h
Direct Drive - Reverse 3 16.8 mile/h / 27 km/h
Note Travel speeds based on 58/85-57 tires.
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit Positive Flow Control
Lift/Tilt System - Pump Variable Displacement Piston
Maximum Flow at 1,700 rpm Engine Speed 541 gal/min / 2047 l/min
Relief Valve Setting - Lift/Tilt 5004 psi / 34500 kPa
Cylinders, Double Acting - Lift, Bore and Stroke 370 × 1713 mm (14.6 × 67.4 in)
Cylinders, Double Acting - Tilt, Bore and Stroke 310 × 1086 mm (12.2 × 42.8 in)
Pilot System Open Loop and Pressure Reducing
Hydraulic Cycle Times
Rack Back 4.9 s
Raise 12.6 s
Dump 3.1 s
Lower Float Down 4.2 s
Complete System Fill
Fuel Tank - Standard 856 gal (US) / 3240 l
Fuel Tank - With 24 hr Attachment 1414 gal (US) / 5350 l
Cooling System 138 gal (US) / 520 l
Engine Crankcase 76 gal (US) / 288 l
Transmission 110 gal (US) / 416 l
Differential - Final Drives - Front 220 gal (US) / 833 l
Differential - Final Drives - Rear 200 gal (US) / 757 l
Hydraulic Tank - Implement and Hydraulic Fan 270 gal (US) / 1022 l
Hydraulic Tank - Steering and Braking 100 gal (US) / 379 l
Oil Renewal System (ORS)* 20 gal (US) / 75.7 l
Note *Not available on Tier 4 Final/Stage V machines. Not available in all regions.
Axles
Front Fixed
Rear Trunnion
Oscillation Angle
Brakes
Brakes ISO 3450:2011
Cooling System
Ambient Capability Hydraulically Driven Demand Fan - Standard 109.4 °F / 43 °C
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent) 131 °F / 55 °C
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final) 127.4 °F / 53 °C
Sound Performance - Standard
Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent 74 dB(A)
Machine Sound Level (ISO 6395:2008) 119 dB(A)
Note The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Suppression
Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent 73 dB(A)
Machine Sound Level (ISO 6395:2008) 117 dB(A)
Note The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Hydraulic System - Steering
Steering System - Circuit Pilot, Load Sensing
Steering System - Pump Piston, Variable Displacement
Total Steering Angle 80 degrees
Steering Cycle Times - Low Idle 7.6 s
Steering Cycle Times - High Idle 4.3 s
Dimensions - Standard Lift - Approximate
B-Pin Height - Maximum Lift 28.8 ft / 8800 mm
Clearance at Maximum Lift 19.8 ft / 6039 mm
Dump Angle at Maximum Lift –50.0 degrees
Front Axle Centerline to Bucket Tip 21.9 ft / 6688 mm
Ground to Bumper Clearance 4.4 ft / 1355 mm
Ground to Center of Axles 6 ft / 1830 mm
Ground to Lower Hitch Clearance 2.9 ft / 898 mm
Ground to Top of Exhaust Stacks 23.2 ft / 7067 mm
Ground to Top of Hood 18.6 ft / 5682 mm
Ground to Top of ROPS 23.4 ft / 7119 mm
Maximum Overall Height - Bucket Raised 39.3 ft / 11966 mm
Maximum Overall Length 64.6 ft / 19693 mm
Note Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift 59.5 degrees
Rack Back Angle - Carry 47.7 degrees
Rack Back Angle - Ground Level 39.7 degrees
Reach - Maximum Lift 9.6 ft / 2946 mm
Rear Axle - Centerline to Bumper 20.4 ft / 6205 mm
Tread Width 14.1 ft / 4300 mm
Wheel Base 22.3 ft / 6800 mm
Width - Over Tires - With Bulge 18.8 ft / 5758 mm
Dimensions - High Lift - Approximate
B-Pin Height - Maximum Lift 31.6 ft / 9657 mm
Clearance at Maximum Lift 22.6 ft / 6896 mm
Dump Angle at Maximum Lift –50.0 degrees
Front Axle Centerline to Bucket Tip 24.2 ft / 7383 mm
Ground to Bumper Clearance 4.4 ft / 1355 mm
Ground to Center of Axles 6 ft / 1830 mm
Ground to Lower Hitch Clearance 2.9 ft / 898 mm
Ground to Top of Exhaust Stacks 23.2 ft / 7067 mm
Ground to Top of Hood 18.6 ft / 5682 mm
Ground to Top of ROPS 23.4 ft / 7119 mm
Maximum Overall Height - Bucket Raised 42.1 ft / 12823 mm
Maximum Overall Length 66.9 ft / 20388 mm
Note Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift 59.4 degrees
Rack Back Angle - Carry 53.5 degrees
Rack Back Angle - Ground Level 45 degrees
Reach - Maximum Lift 9.4 ft / 2884 mm
Rear Axle - Centerline to Bumper 20.4 ft / 6205 mm
Tread Width 14.1 ft / 4300 mm
Wheel Base 22.3 ft / 6800 mm
Width - Over Tires - With Bulge 18.8 ft / 5760 mm

Standard Equipment

  • POWER TRAIN
    • Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI™-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled
    • Engine prelube
    • Fuel priming pump (electric)
    • Ground-level engine shutoff
    • Engine air intake (above hood) precleaner
    • Aluminum Modular Radiator (AMR)
    • Automatic, ether starting aid
    • Electronic throttle lock
    • Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system
    • Rimpull control system
    • Planetary powershift, 3F/3R electronic control transmission
    • Delayed engine shutdown
    • Oil-cooled, multi-disc, service brakes
    • Electro-hydraulic parking brake
  • LINKAGE
    • Standard lift
  • ELECTRICAL
    • Alternator
    • Batteries, low maintenance
    • 10/15 amp, 24V to 12V converter
    • Disconnect switch to bumper
    • LED warning lights (pattern selectable)
    • LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)
    • Emergency jump-start receptacle
    • Starter and transmission lockout in bumper
    • 24V starting and charging system
    • Electric starters
  • OPERATOR ENVIRONMENT
    • Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
    • Bonded glass, tinted
    • Trainer seat

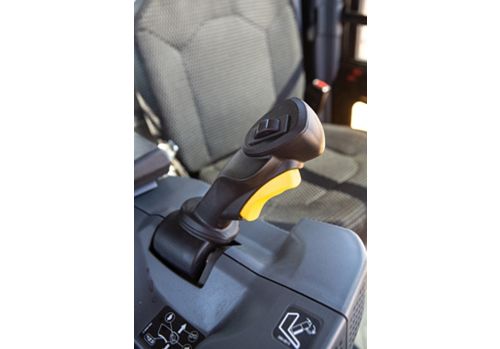

    • Dual-lever lift and tilt function controls
    • Implement kickouts
    • Air conditioner
    • Cab pressure indicator
    • Graphical touchscreen information display conveys real-time operating information
    • Heater, defroster, auto temperature controls
    • Powered cab precleaner
    • Operator presence status
    • Starting/charging system malfunction
    • Electronic OMM
    • Operator controls help
    • Two USB charging ports
    • CB mounting, 12V/24V power and antenna
    • 14-pin service port
    • 12V power
    • Selectable application profiles
    • Entertainment radio mute
    • Push-To-Start (PTS)
    • Warning/indicator instrumentation
    • Keypad control with indicator lights
    • Dome light in cab
    • Lunchbox and beverage holders
    • Electro-hydraulic force feedback steering
    • Vital Information Management System (VIMS™) with information display: external data port, cycle timer
    • Coat hook
    • Gauge instrumentation with configurable widgets:
      – Status indicators

      – Wheel rev counter

      – Simplified payload

      – Tire pressure monitoring system (optional)

      – Bucket angle

      – Coolant temperature

      – Hydraulic oil temperature

      – Fuel level

      – Power train oil temperature

      – Engine speed (tachometer)

      – Transmission gear

      – Ground speed

      – Engine hour meter

  • SAFETY
    • Ground-access ladders
    • Rear-vision camera
    • Front frame access with steps
    • Front walkway around cab
    • Pump bay access ladders with T-handle and platform
    • Tie-offs on ROPS and radiator guards
    • Steering frame lock
    • Stairways on both sides of the machine
    • LED stairway and access lights
    • Toe kicks
    • Electric (field and shop) horns
    • Retractable seatbelt, 76 mm (3 in) wide
    • Trainer seat with lap belt, 76 mm (3 in) wide
    • Back-up alarm
    • Secondary steering
  • MACHINE CONTROL AND GUIDANCE
    • MineStar™ Health ready
    • MineStar GUIDE ready
    • MineStar Edge ready
  • FUEL TANK
    • 12 hour (3240 L/856 gal)
  • COOLING
    • Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

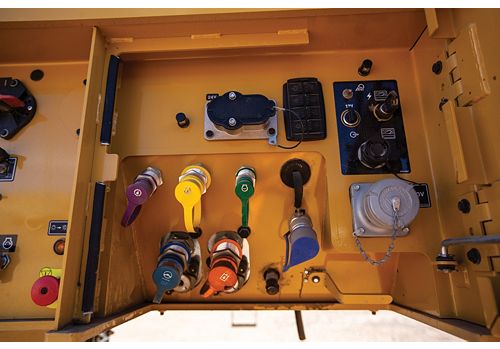

  • GROUND-LEVEL SERVICE CENTER
    • Service center light
    • Implement and cooling fan oil level indicator
    • Steering and brake oil level indicator
    • Window washer solvent level indicator
    • Transmission oil level indicator
    • DEF level indicator (if equipped)
    • Fuel level indicator
    • Engine oil level indicator
    • Engine coolant level indicator
    • Automatic lubrication system grease tank level indicator
    • DEF purge indicator lamp
    • Transmission lockout and LED
    • Starter lockout and LED
    • Heavy-duty battery disconnect switch
    • Stairway light switch
    • Service lighting switch (if equipped)
    • Fuel shutoff engine shutdown switch
    • Engine oil fast-fill port
    • Transmission oil fast-fill port
    • Steering and brake hydraulic oil fast-fill port
    • Steering and brake hydraulic oil drain port
    • Oil renewal system fast-fill port (if equipped)
    • Engine coolant fast-fill port
    • DEF fill port (HRC only)
    • Implement and cooling fan hydraulic oil fast-fill port
    • Implement and cooling hydraulic oil drain port
    • Automatic lubrication system grease tank fill port
    • 24V jump-start receptacle
    • 240V jacket water and engine oil heater plug (if equipped)
    • 12V power port
    • VIMS key switch
    • 14-pin machine data port
  • SERVICE
    • EH steering eliminates need for neutralizer adjustment
    • In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
    • High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
    • Pump efficiency monitoring
    • Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings
    • Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
    • Rock guards on linkage grease lines
    • Cat O-ring face seal couplings
    • Lockable service access doors
    • Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
    • High-speed engine oil change system
    • Ground-level fast-fill fuel system
    • Transmission guard
    • Drawbar hitch with pin
    • Cat XT™ hoses
    • Left-side service center
    • Oil sampling valves
    • Automatic Autolube filling shutoff valve
    • Telematics and Cat Electronic Technician service port in bumper
    • Air filter remaining useful life sensor
    • Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
    • Rear access to cab and service platform
    • Load-sensing steering
    • Supplemental steering system
    • Vandalism protection caplocks
    • Cooling cleanout service package
    • VIMS download and Cat Electronic Technician service port in bumper
    • Service lights (engine bay, service center)
    • EH steering eliminates need for neutralizer adjustment
  • EFFICIENCY
    • On demand throttle, HP Plus, and Enhanced ECO Modes
    • Variable displacement implement pumps
    • Variable displacement load sensing steering
    • Variable displacement cooling fan pump
    • Torque converter lock-up clutch

Optional Equipment

  • POWER TRAIN
    • Oil Renewal System (ORS)* (for increased time between oil changes)
  • LINKAGE
    • High lift
  • OPERATOR ENVIRONMENT
    • Rubber-mounted, high-impact resistant solar control glass
    • Trainer seat with suspension
    • Joystick lift and tilt function controls
    • Bluetooth®-enabled machine security
    • Sun screen, pull down (front and rear)
    • AM/FM/AUX radio
    • AM/FM/AUX/USB/BT/CD/SAT radio
  • SAFETY
    • Powered ground-access stairs
    • Cat Detect (Rear Object Detection)
    • Wheel chocks
  • COLD WEATHER
    • Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])
    • Heavy-duty starter (provides an additional electric starter motor and two additional batteries for a total of three starter motors and six batteries) (recommended for temperatures below 0° C [32° F])
    • 240V engine oil and coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
    • Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
    • Heated mirrors (recommended for below-freezing temperatures)
  • MACHINE CONTROL AND GUIDANCE
    • Cat Payload with Overload Prevention
    • New Autodig Components:
      – Tire slip prevention

      – Lift stall prevention

      – Tire set

    • Operator coaching
  • FUEL TANK
    • 24 hour (5350 L/1414 gal)
  • COOLING
    • High ambient package (recommended for site conditions that do not exceed 53° C [127° F])
  • RIMS AND TIRES
    • Rims – 1194 mm (47") (47 × 57); 152 mm (6") flange; For use with 58/85-57; 84PR L4 tires
    • Rims – 1194 mm (47") (47 × 57);127 mm (5") flange; For use with 60/80 R57; L5R XMine D2 SR tires
    • Tires – 58/85-57 84PR L4 (require 47" rims)
  • SPARE RIMS
    • 1194 mm (47") 152 mm (44 × 57) (6") flange
    • 1194 mm (47") 127 mm (47 × 57) (5") flange
  • SERVICE
    • Product Link™ satellite
    • Product Link cellular
    • Product Link (dual mode – satellite/cellular)
    • Additional service lights (pump bay, front frame and bumper)
  • SOUND
    • Sound-suppression package
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.
