CB10

Operating Weight - With Cab
22255 lb / 10095 kg
Standard Operating Weight with ROPS
21642 lb / 9815 kg
Standard Compaction Width
67 in / 1700 mm

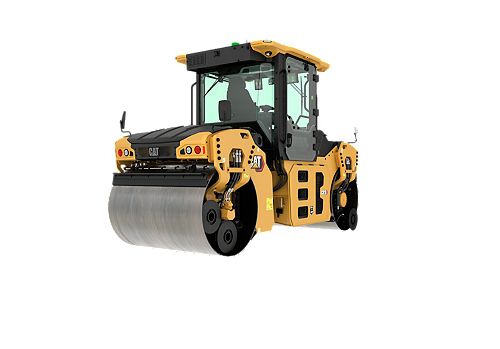

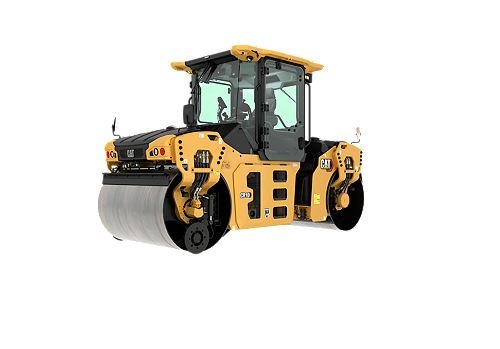

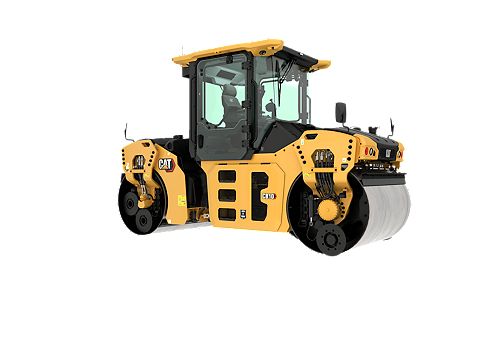

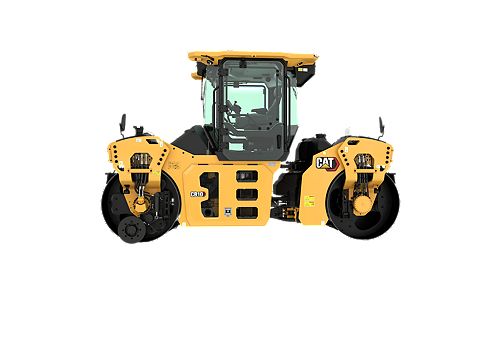

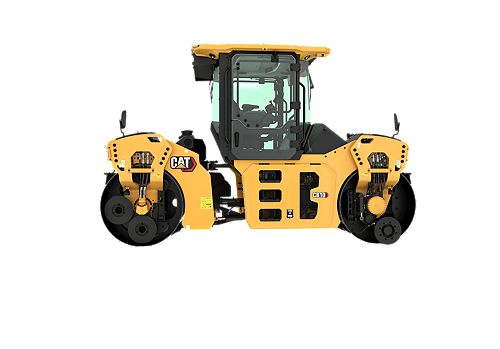

The Cat® CB10 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.

Weights
Operating Weight - With Cab 22255 lb / 10095 kg
Maximum Operating Weight with Cab 23197 lb / 10522 kg
Standard Operating Weight with ROPS 21642 lb / 9815 kg
Maximum Operating Weight with ROPS 22575 lb / 10240 kg
Operating Specifications
Standard Compaction Width 67 in / 1700 mm
Maximum Compaction Width 73 in / 1870 mm
Static Linear Load - With Cab 173 lb/in / 30.9 kg/cm
Static Linear Load - With ROPS/FOPS 168 lb/in / 30.1 kg/cm
Travel Speed - Maximum 7 mile/h / 11 km/h
Dimensions
Overall Length 186 in / 4740 mm
Overall Width 85 in / 2176 mm
Height - With ROPS/FOPS or Cab 118 in / 2984 mm
Wheel Base 139 in / 3540 mm
Drum Diameter 47 in / 1198 mm
Engine
Engine Model Cat® C3.6
Engine Power (1) 120 hp / 90 kW
Vibratory System
Drum Width 67 in / 1700 mm
Centrifugal Force per Drum - Maximum 14185 lb / 63.1 kN
Centrifugal Force per Drum - Minimum 11982 lb / 58.2 kN
Nominal Amplitude - High 0.034 in / 0.86 mm
Nominal Amplitude - Low 0.01 in / 0.26 mm
Vibration Selection Independent per drum, front only, rear only, both
Service Refill Capacities
Fuel Tank Capacity 36.5 gal (US) / 138 l
Water Spray Tank Capacity 225 gal (US) / 855 l

Standard Equipment

  • Operating Environment
    • 180º seat positioning w/ sliding station
    • Adjustable armrests
    • Full-color display with touchscreen operation
    • Platform ROPS/FOPS
    • Propel lever w/ 4-button control
    • Steering wheel - fixed position, left side
    • Suspension seat - no heat
    • Seatbelt - 76 mm (3 in) high visibility
    • Vandalism protection
  • Technology
    • Visionlink®
    • Remote flash
    • Remote troubleshooting
  • Powertrain
    • C3.6 4-cylinder
  • Electrical System
    • 150 amp alternator
    • 12-volt charging system
    • Automotive-type fuse system
    • Batteries - maintenance free
    • Cat® Electronic Technician (Cat ET)
    • Remote start / charge receptacle
  • Vibratory System
    • Two amplitude/two frequency - both drums
  • Service and Maintenance
    • 2 year/2000 hour oscillatory vibration system service interval
    • 3 year/3000 hour conventional vibratory system service interval
    • Grouped filters with ground level access
    • Maintenance-free hitch
    • Remote access drains
    • Sampling ports for Scheduled Oil Sampling (S•O•S?)
    • Sight gauges - engine coolant and hydraulic oil
  • Safety
    • Alarm, back up
    • Horn, warning (front and rear)
    • LED working lights
    • Steps, front drum fuel refill
    • Warning, LED safety beacons

Optional Equipment

  • Operating Environment
    • 360° seat positioning w/sliding station
    • Platform - Cab
    • Steering wheel - elevated position, left side
    • Suspension seat - with heat
    • Seat headrest
  • Technology
    • CMV accelerometer - front drum
    • GNSS Mapping - temperature and passcount
    • Infrared asphalt temperature sensors
  • Powertrain
    • Hitch - offset
    • Hydraulic oil - biodegradeable
  • Vibratory System
    • Edge Management - Cutoff, Bevel
    • Mats - cocoa
    • Mats - water distribution
    • Rear drum oscillation kit - field installed drum
    • Split Drums – front and rear
    • Two amplitude/two frequency w/ oscillation
    • Versa Vibe_both drums (U.S. and Canada)
    • Versa Vibe with Oscillation (U.S. and Canada)
  • Service and Maintenance
    • Freeze protection - water spray system
  • Safety
    • Alarm, back up
    • Cameras – 360º viewing _ROPS mounted
    • Cameras – front and rear bumber mounted
    • LED working lights with turn signals
    • LED auxiliary lighting - 1000/2000 lumin
    • Mirror package
    • Steps, rear drum water spray refill
