2060 mm (81 in)
- Overall Width
- 55.1 in / 1400 mm
- Overall Height
- 34.4 in / 873 mm
- Maximum Opening Width
- 81.1 in / 2060 mm

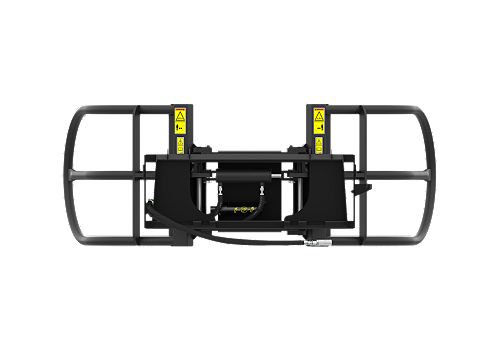

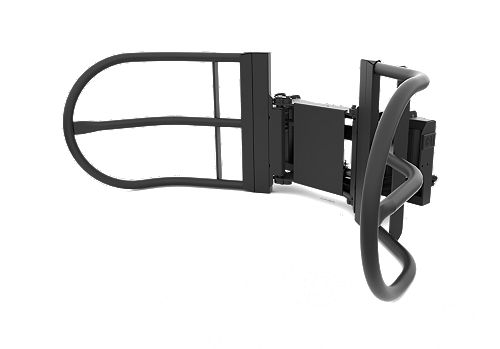

Cat® Bale Grabs safely grab, carry and place square or round baled material.
| Product Specifications | |
|---|---|
| Overall Width | 55.1 in / 1400 mm |
| Overall Height | 34.4 in / 873 mm |
| Maximum Opening Width | 81.1 in / 2060 mm |
| Capacity | 1807.8 lb / 820 kg |
| Overall Depth | 61 in / 1550 mm |
| Weight | 599.7 lb / 272 kg |
| Working Pressure | 3045.8 psi / 21000 kPa |
| Required Hydraulics | Standard Flow |
Skid Steer Loaders
| Model | Gross Power - SAE J1995:2014 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 226D3 | 67.1 hp / 50.1 kW | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 67.1 hp / 50.1 kW | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 67.2 hp / 50.1 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 246D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 272D3 XE | 110 hp / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
