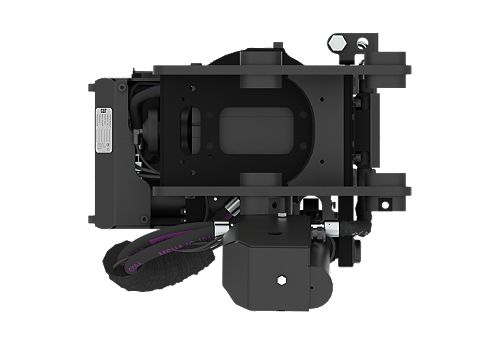

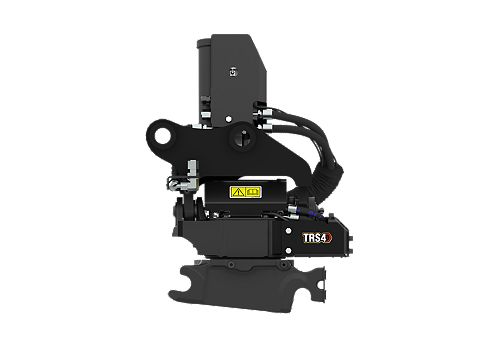

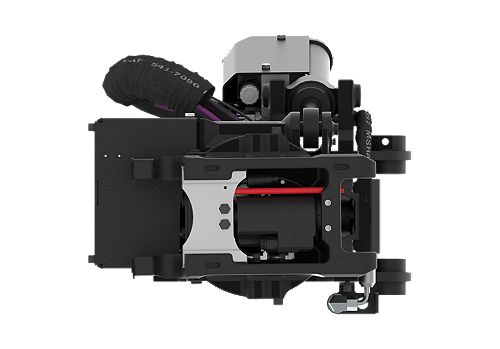

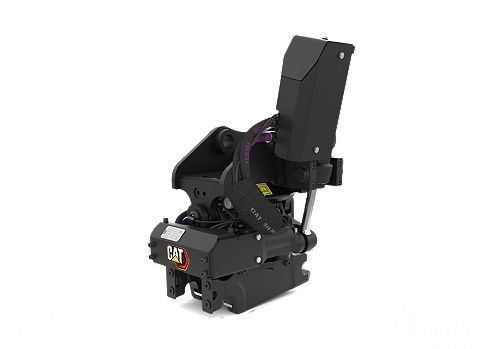

TRS4, Pin On (Pin Grabber)/S40, 3-4 Ton Mini Excavators
- Weight
- 297.6 lb / 135 kg
- Overall Height
- 30.9 in / 784 mm
- Length
- 20.4 in / 519 mm
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
| Product Specifications | |
|---|---|
| Machine Class | 3-4 Ton Mini Excavators |
| Weight | 297.6 lb / 135 kg |
| Interface Options: Top-Bottom | Pin On (Pin Grabber) Coupler / S40 Coupler |
| Overall Height | 30.9 in / 784 mm |
| Length | 20.4 in / 519 mm |
| Overall Width | 17.6 in / 448 mm |
| Rotation Speed | 7 Seconds per 1 full rotation |
| Tilt Angle Range | 40° Left/Right |
| Maximum Bucket Capacity | 3.9 ft³ / 110 l |
| Maximum Bucket Width | 39.4 in / 1000 mm |
| Optimal Hydraulic Flow | 17-25 L/min (4.5-6.7 gpm) |
| Maximum Operating Pressure | 3045.8 psi / 21000 kPa |
| Required Hydraulics | 1st Auxiliary |
| Tilting Torque | 4277.9 lb/ft / 5800 N·m |
| Turning Torque | 1253.9 lb/ft / 1700 N·m |
