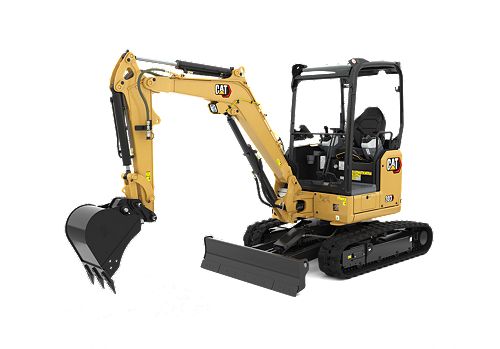

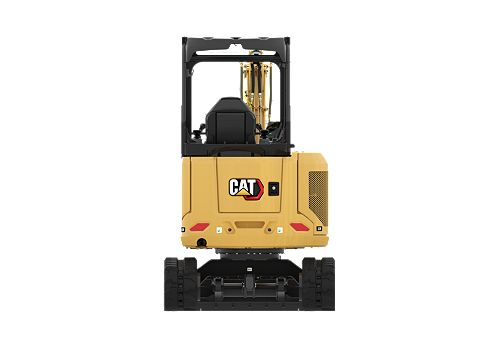

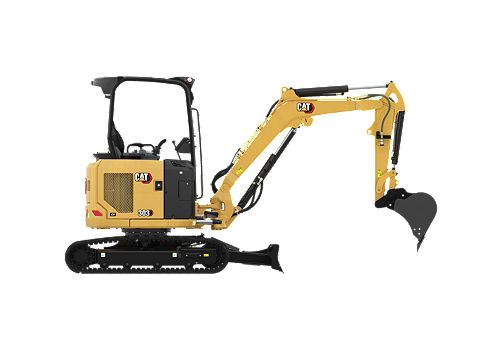

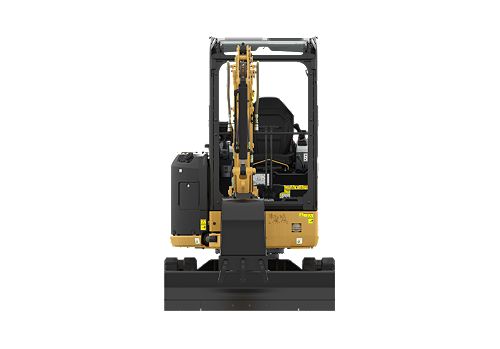

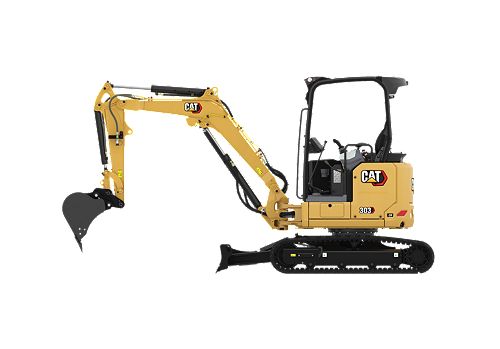

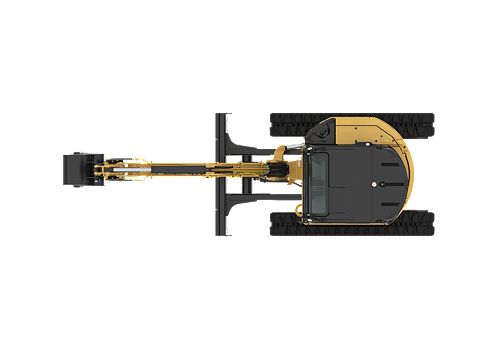

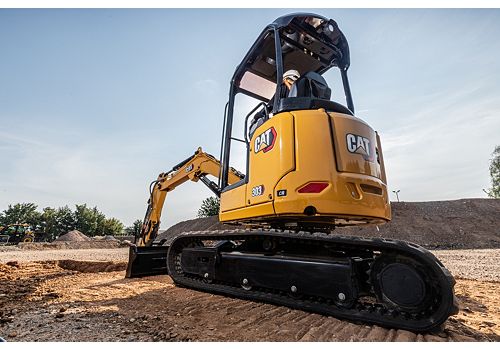

303 CR

Specifications
Equipment
Related Products

Engine
Net Power	23.6 HP / 17.6 kW
Engine Model	C1.1 Turbo
Bore	3 in / 77 mm
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Gross Power - SAE J1995:2014	24.7 HP / 18.4 kW
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	23.6 HP / 17.6 kW
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	3.2 in / 81 mm
Note	Net power is tested per ISO 9249 and 80/1269/EEC.
Displacement	69 in³ / 1.1 l

Weights
Operating Weight	7817 lb / 3545 kg
Note (1)	*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
EU: CE Plate Weight with Canopy***	6791 lb / 3080 kg
Minimum Operating Weight with Canopy*	6670 lb / 3025 kg
Minimum Operating Weight with Cab*	6924 lb / 3140 kg
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Maximum Operating Weight with Canopy**	7552 lb / 3425 kg
EU: CE Plate Weight with Cab***	7012 lb / 3180 kg
Maximum Operating Weight with Cab**	7817 lb / 3545 kg
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.

Dimensions - Long Stick
Dig Depth	116.1 in / 2950 mm
Boom Height - Shipping Position	75.6 in / 1920 mm
Tail Swing with Counterweight	35 in / 890 mm
Track Belt/Shoe Width	11.8 in / 300 mm
Maximum Reach	206.3 in / 5240 mm
Boom In Reach	74.2 in / 1910 mm
Boom Swing - Right	34.3 in / 870 mm
Tail Swing	33.3 in / 845 mm
Maximum Dump Clearance	130.3 in / 3310 mm
Ground Clearance	12.2 in / 310 mm
O/A Undercarriage Length	81.5 in / 2070 mm
O/A Shipping Height	97.6 in / 2480 mm
Track Width - Expanded	61 in / 1550 mm
Maximum Blade Depth	21.1 in / 535 mm
Maximum Reach - Ground Level	201.2 in / 5110 mm
Stick Length	61.4 in / 1560 mm
Overall Shipping Length*	179.5 in / 4560 mm
Maximum Dig Height	183.1 in / 4650 mm
Swing Bearing - Height	22.4 in / 570 mm
Note	*Overall Shipping Length depends on blade position during shipment.
Tail Swing without Counterweight	30.5 in / 775 mm
Maximum Blade Height	15.2 in / 385 mm
Boom Swing - Left	25.2 in / 640 mm
Vertical Wall	81.5 in / 2070 mm

Blade
Height	13.8 in / 350 mm
Width	61 in / 1550 mm

Dimensions - Standard Stick
Maximum Blade Depth	21.1 in / 535 mm
Tail Swing without Counterweight	30.5 in / 775 mm
Maximum Dig Height	177.6 in / 4510 mm
O/A Undercarriage Length	81.5 in / 2070 mm
Boom Height - Shipping Position	63 in / 1600 mm
Vertical Wall	71.7 in / 1820 mm
Overall Shipping Length*	177.6 in / 4510 mm
Boom Swing - Left	25.2 in / 640 mm
O/A Shipping Height	97.6 in / 2480 mm
Track Shoe Width	61 in / 1550 mm
Boom Swing - Right	34.3 in / 870 mm
Tail Swing with Extra Counterweight	35 in / 890 mm
Swing Bearing - Height	22.4 in / 570 mm
Tail Swing	33.3 in / 845 mm
Maximum Blade Height	15.2 in / 385 mm
Dig Depth	104.3 in / 2650 mm
Maximum Dump Clearance	124.8 in / 3170 mm
Maximum Reach - Ground Level	190.2 in / 4830 mm
Maximum Reach	196.1 in / 4980 mm
Ground Clearance	12.2 in / 310 mm
Track Belt/Shoe Width	11.8 in / 300 mm
Boom In Reach	68.9 in / 1750 mm
Stick Length	49.6 in / 1260 mm
Note	*Overall Shipping Length depends on blade position during shipment.

Swing System
Boom Swing - Right	50 °
Machine Swing Speed	9 r/min
Boom Swing - Left	75 °

Sound
Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)
Note	European Union Directive “2000/14/EC”

Hydraulic System
Auxiliary Circuit - Primary - Flow	17 gal/min / 65 l/min
Auxiliary Circuit - Secondary - Pressure	3553 psi / 245 bar
Operating Pressure - Swing	2553 psi / 176 bar
Pump Flow at 2,400 rpm	26 gal/min / 100 l/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Stick - Standard	3732 lbf / 16.6 kN
Operating Pressure - Travel	3553 psi / 245 bar
Digging Force - Bucket	6385 lbf / 28.4 kN
Operating Pressure - Equipment	3553 psi / 245 bar
Auxiliary Circuit - Primary - Pressure	3553 psi / 245 bar
Auxiliary Circuit - Secondary - Flow	7 gal/min / 25 l/min
Digging Force - Stick - Long	3327 lbf / 14.8 kN
Note	* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Travel System
Gradeability - Maximum	30 degrees
Ground Pressure - Maximum Weight	4.7 psi / 32.3 kPa
Ground Pressure - Minimum Weight	4 psi / 27.6 kPa
Travel Speed - High	2.8 mile/h / 4.5 km/h
Maximum Traction Force - Low Speed	7059 lbf / 31.4 kN
Travel Speed - Low	1.6 mile/h / 2.6 km/h
Maximum Traction Force - High Speed	3305 lbf / 14.7 kN

Service Refill Capacities
Cooling System	1.1 gal (US) / 4 l
Hydraulic Tank	4.8 gal (US) / 18 l
Engine Oil	1.1 gal (US) / 4 l
Fuel Tank	11.9 gal (US) / 45 l
Hydraulic System	9.2 gal (US) / 35 l

Weight Increase from Minimum Configuration
Counterweight	221 lb / 100 kg
Cab	254 lb / 115 kg
Steel Tracks	276 lb / 125 kg
Long Stick	55 lb / 25 kg
Extra Counterweight	551 lb / 250 kg

Certification - Cab and Canopy
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997

Sustainability
Recyclability	95%

Standard Equipment

ENGINE
- Cat C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
OPERATOR ENVIRONMENT
- Tilt-up Canopy or Tilt-Up Cab
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Next Generation Advanced Monitor
  – Touch Screen
  – Site Reference System
  – High Definition Camera Capable (IP68 and IP69K)
  – Numeric Security Code
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Machine Security – Standard Key with Pass Code
- Fabric Suspension Seat (Cab only)
- Vinyl Suspension Seat (Canopy only)
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Interior Light (Cab only)
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
  – Fuel Level and Coolant Temperature Gauges
  – Maintenance and Machine Monitoring
  – Performance and Machine Adjustments
  – Numeric Security Code
  – Multiple Languages
  – Hour Meter with Wake Up Switch
  – Jog Dial (cab only)
UNDERCARRIAGE
- Rubber Belt (300 mm/11.8 in wide)
- Dozer Blade
- Dozer Blade Float
- Tie Downs on Track Frame
BOOM, STICK AND LINKAGES
- One Piece Boom (2200 mm/86.6 in)
- Standard Stick (1260 mm/49.6 in)
- Front Shovel Capable – Hydraulic Coupler
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Signaling/Warning Horn
- 12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT
- Cab with Air Conditioning
- Cab with Heater
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Machine Security – Push to Start with Key Fob/Pass Code
- Vinyl Non-Suspension Seat (Canopy only)
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
UNDERCARRIAGE
- Steel Track (300 mm/11.8 in wide)
BOOM, STICK AND LINKAGES
- Long Stick (1560 mm/61.4 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
ELECTRICAL
- Battery Disconnect
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
GUARDING
- Polycarbonate Front Guard (ISO 10262:1998 Level I and EN356 P5A)
- Polycarbonate Half Height Front Guard (Canopy only)
OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater

Heavy Duty Buckets - Mini Excavator

High strength buckets designed for maximum performance and value over a broad range of applications.

Model	Width	Capacity	Weight
305 mm (12 in)	12 in / 305 mm	1.7 ft³ / 48.09 l	143.3 lb / 65 kg
406 mm (16 in)	16 in / 406 cm	2.5 ft³ / 70.8 l	163.1 lb / 74 kg
457 mm (18 in)	18 in / 457 mm	2.9 yd³ / 82.09 m³	180.8 lb / 82 kg
508 mm (20 in)	20 in / 508 mm	3.3 ft³ / 93.4 l	191.8 lb / 87 kg
619 mm (24 in)	24.4 in / 619 mm	4.2 ft³ / 118.9 l	216.1 lb / 98 kg
762 mm (30 in)	30 in / 762 mm	5.6 ft³ / 158.6 l	257.9 lb / 117 kg
914 mm (36 in)	36 in / 914 mm	7.1 ft³ / 199.89 l	293.2 lb / 133 kg

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A23	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	3 Ton Mini Excavator Pin On
A41	3038.8 lb/ft / 4120 N·m	Gerotor Motor - Single Planetary Reduction	3 Ton Mini Excavator Pin On

Ditch Cleaning Buckets - Mini Excavator

Used in ditch cleaning, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1000 mm (39 in)	39.4 in / 1000 mm	4.8 ft³ / 135.89 l	240.1 lb / 108.9 kg
1200 mm (47 in)	47.2 in / 1200 mm	5.9 ft³ / 167.1 l	235.7 lb / 106.9 kg
1400 mm (55 in)	55.1 in / 1400 mm	7 ft³ / 197.1 l	259.2 lb / 117.59 kg

Grading Buckets - Mini Excavator

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in)	47.2 in / 1200 mm	8.2 ft³ / 231.89 l	381 lb / 172.8 kg

Tilting Ditch Cleaning Buckets - Mini Excavator

Used in ditch cleaning, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in)	47.2 in / 1200 mm	5.6 ft³ / 158.6 l	357.8 lb / 162.3 kg

Dual Lock™ Pin Grabber Couplers - Mini Excavator

Increase machine versatility and improve overall production.

Model	Weight	Width	Length
3-4 Ton Mini Excavators Hydraulic	90.4 lb / 41 kg	9.9 in / 252 mm	16.7 in / 423 mm

Rippers

For land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Combine with a coupler for Rip & Load productivity.

Model	Shank Length	Weight	Overall Length
490 mm (19 in)	19.3 in / 490 mm	99.2 lb / 45 kg	25.9 in / 659 mm

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Impact Frequency	Base Plate Width
CVP16	3641.91 lb / 16.2 kN	2200 bpm	12 in / 305 mm
