CW16
- Operating Weight - 9 Wheel Base Machine
- 11466 lb / 5200 kg
- Operating Weight - Maximum Ballast
- 33069 lb / 15000 kg
- Compaction Width
- 69 in / 1754 mm

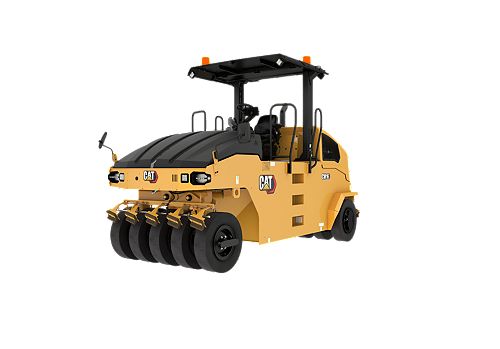

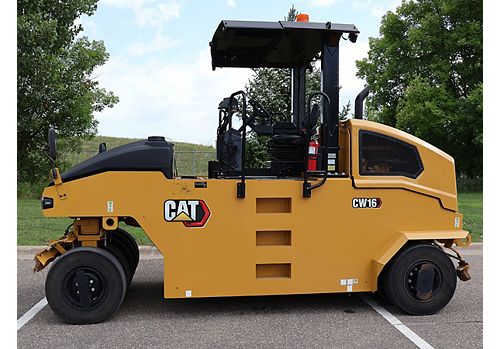

The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.
| Weights | |
|---|---|
| Operating Weight - 9 Wheel Base Machine | 11466 lb / 5200 kg |
| Operating Weight - Maximum Ballast | 33069 lb / 15000 kg |
| Operating Specifications | |
|---|---|
| Compaction Width | 69 in / 1754 mm |
| 9 Wheel Compaction Width - With Radial Tire | 68 in / 1728 mm |
| Travel Speed - Maximum | 12 mile/h / 19 km/h |
| Ground Clearance | 9.5 in / 241 mm |
| Inside Turn Radius - 9 Wheel | 148 in / 3761 mm |
| Turning Radius - Outside | 255 in / 6455 mm |
| Dimensions | |
|---|---|
| Overall Length | 14.1 ft / 4290 mm |
| Height - ROPS | 9.8 ft / 3000 mm |
| Height - Steering Wheel | 91 in / 2320 mm |
| Engine | |
|---|---|
| Engine Model | Cat C3.6 |
| Gross Power | 100.6 hp / 75 kW |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 38 gal (US) / 146 l |
| Water Spray Tank Capacity | 92 gal (US) / 348 l |
