309 CR VAB

Net Power: 69 hp / 51.2 kW
Operating Weight: 22094 lb / 10020 kg
Dig Depth: 150.2 in / 3815 mm

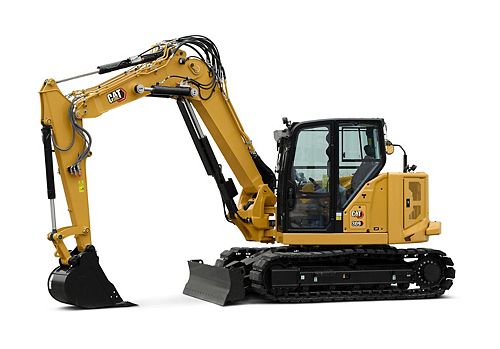

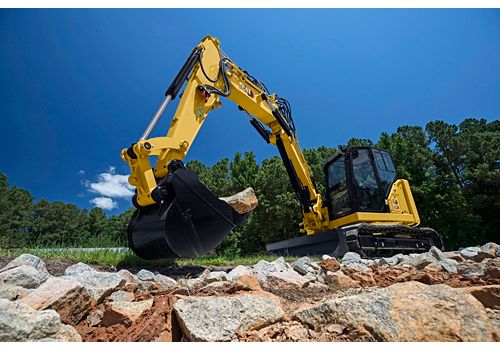

The Cat® 309 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.

Loan Calculator Credit Application

Build & Quote

309 CR VAB Mini Excavator Product Brochure Cat Mini Hydraulic Excavators Product Line Brochure (North America) Cat Mini Hydraulic Excavators Product Line Brochure (Europe) Options And Accessories Kit Guide for Mini Hydraulic Excavators Cat Attachments for Mini Excavators Brochure Attachment Compatibility Guide for Mini Excavators

Specifications
Equipment

Engine
Net Power	69 hp / 51.2 kW
Engine Model	Cat® C2.8 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	69 hp / 51.2 kW
Gross Power - ISO 14396	74.3 hp / 55.4 kW
Bore	3.5 in / 90 mm
Stroke	4.3 in / 110 mm
Displacement	171 in³ / 2.8 l
Note	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
Note (1)	Advertised power is tested per the specified standard in effect at thetime of manufacture.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.

Weights
Operating Weight	22094 lb / 10020 kg
Minimum Operating Weight with Standard Stick*	20264 lb / 9190 kg
Maximum Operating Weight with Standard Stick**	22094 lb / 10020 kg
Note (1)	*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade, and no bucket.
Note (2)	**Maximum Weight is based on steel tracks with rubber pads, (500 kg/1,103 lb) counterweight, operator, full fuel tank, standard stick, blade, and no bucket.

Weight Increase from Minimum Configuration
Counterweight	552 lb / 250 kg
Counterweight (extra)	1103 lb / 500 kg
Standard Stick	77 lb / 35 kg
Steel Tracks with Pads	728 lb / 330 kg

Travel System
Travel Speed - High	2.9 mile/h / 4.7 km/h
Travel Speed - Low	1.6 mile/h / 2.6 km/h
Maximum Traction Force - High Speed	7419 lbf / 33 kN
Maximum Traction Force - Low Speed	19064 lbf / 84.8 kN
Ground Pressure - Minimum Weight	5.2 psi / 35.6 kPa
Ground Pressure - Maximum Weight	5.6 psi / 38.9 kPa
Gradeability - Maximum	30 degrees

Blade
Height	17 in / 431 mm
Width - Standard	97.2 in / 2470 mm
Width - Wide	103.9 in / 2640 mm

Service Refill Capacities
Cooling System	2.6 gal (US) / 10 l
Engine Oil	2.3 gal (US) / 8.8 l
Fuel Tank	39 gal (US) / 147 l
Hydraulic Tank	14 gal (US) / 53 l
Hydraulic System	29 gal (US) / 110 l

Hydraulic System
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm	62 gpm / 233 L/min
Operating Pressure - Equipment	4134 psi / 285 bar
Operating Pressure - Travel	4134 psi / 285 bar
Operating Pressure - Swing	3626 psi / 250 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump	37 gpm / 140 L/min
Maximum Auxiliary Circuit - Primary - Pressure at Pump	4134 psi / 285 bar
Maximum Auxiliary Circuit - Secondary - Flow at Pump	9 gpm / 33 L/min
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	4134 psi / 285 bar
Digging Force - Stick - Standard	9509 lbf / 42.3 kN
Digging Force - Bucket	13946 lbf / 62 kN
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System
Machine Swing Speed	10 r/min
Boom Swing - Left	60 degrees
Boom Swing - Right	50 degrees

Certification - Cab
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)

Dimensions - VAB In
Dig Depth	150.2 in / 3815 mm
Vertical Wall	99.2 in / 2520 mm
Maximum Reach at Ground Level	248 in / 6300 mm
Maximum Reach	256.5 in / 6515 mm
Maximum Dig Height	205.5 in / 5220 mm
Maximum Dump Clearance	135.8 in / 3450 mm
Boom in Reach	122.8 in / 3120 mm
Tail Swing with Counterweight	62.4 in / 1585 mm
Tail Swing without Counterweight	57.1 in / 1450 mm
Maximum Blade Height	16.1 in / 408 mm
Maximum Blade Depth	19.1 in / 484 mm
Cab Height	100 in / 2541 mm
Swing Bearing Height	29.8 in / 756 mm
Overall Undercarriage Length	126 in / 3200 mm
Overall Shipping Length	255.7 in / 6495 mm
Boom Swing Right	37 in / 935 mm
Boom Swing Left	24 in / 605 mm
Track Belt/Shoe Width	17.7 in / 450 mm
Overall Track Width	97.2 in / 2470 mm
Ground Clearance	14 in / 356 mm
Stick Length	71.7 in / 1820 mm

Dimensions - VAB Out
Dig Depth	136.2 in / 3460 mm
Vertical Wall	146.7 in / 3725 mm
Maximum Reach at Ground Level	303.7 in / 7715 mm
Maximum Reach	310.4 in / 7885 mm
Maximum Dig Height	322 in / 8180 mm
Maximum Dump Clearance	247.4 in / 6285 mm
Boom in Reach	106.7 in / 2710 mm
Tail Swing with Counterweight	62.4 in / 1585 mm
Tail Swing without Counterweight	57.1 in / 1450 mm
Maximum Blade Height	16.1 in / 408 mm
Maximum Blade Depth	19.1 in / 484 mm
Cab Height	100 in / 2541 mm
Swing Bearing Height	29.8 in / 756 mm
Overall Undercarriage Length	126 in / 3200 mm
Overall Shipping Length	255.7 in / 6495 mm
Boom Swing Right	37 in / 935 mm
Boom Swing Left	24 in / 605 mm
Track Belt/Shoe Width	17.7 in / 450 mm
Overall Track Width	97.2 in / 2470 mm
Ground Clearance	14 in / 356 mm
Stick Length	71.7 in / 1820 mm

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).

Sound
Operator Sound Pressure (ISO 6396:2008)	72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)
Note	European Union Directive "2000/14/EC"

Sustainability
Recyclability	96%

Specifications
Note	The 309 CR VAB specifications are based on a machine configured with a Long (L) Undercarriage.

Standard Equipment

ENGINE
- Cat C2.8 Turbo Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) - Electronic Engine, Turbo, Fit-For-Life Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC) Aftertreatment System
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Swing Brake
- Automatic Two Speed Travel
- Fuel Water Separator with Indicator
- Radial Seal – Double Element Air Filter
- Extended Life Coolant, –37° C ( –35° F)
HYDRAULICS
- Smart Tech Electronic Pump
- Electronic Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
- Dedicated Auxiliary Hydraulic Pump
- Power On Demand
- Hydraulic Temperature Monitoring
- Certified Accumulator
- HYDO™ Advanced Hydraulic Oil
- Ecology Drain
OPERATOR ENVIRONMENT
- Top Guard ISO 10262:1998 (Level I)
- ROPS ISO 12117-2:2008
- Sealed and Pressurized Cab
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer
- Adjustable Wrist Rests
- Molded Footrests
- Removable, Washable Floor Mat
- Travel Pedals and Hand Levers
- Cat Key with Passcode Option
- HVAC with Automatic Temperature Control
- Hydraulic Lockout Controls
- Integrated Lower Front Window
- Assisted Front Window Overhead Storage
- Rear Window Emergency Exit
- Cab Mirrors (vary by region)
- Fabric, High Back, Suspension Seat
- Retractable Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- LED Interior Light
- Literature Holder
- Mounting Bosses for Top and Front Guards
- 12V Power Socket
- Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
- Skylight
- Signaling/Warning Horn
- Cab and (left side) Boom Work Lights
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
  – Jog Dial Interface
  – Fuel Level and Coolant Temperature Gauges
  – Maintenance and Machine Monitoring
  – Performance and Machine Adjustments
  – Numeric Security Code
  – Multiple Languages
  – Camera Ready (IP68 & IP69K)
  – Hour Meter with Wake Up Switch
UNDERCARRIAGE
- Tie Down Eyes on Track Frame
- Greased and Lubricated Track
- Hydraulic Track Adjusters
- Dozer Blade
- Dozer Float
- Bolt-on, Reversible Wear Edge
BOOM, STICK AND LINKAGES
- Variable Angle Boom
- Standard Stick (1820 mm/71.7 in)
- Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)
- Thumb Ready (not available in all regions)
ELECTRICAL
- 12 Volt Electrical System
- 90 Ampere Alternator
- Circuit Breaker
- 850 CCA Maintenance Free Battery
- Lock Out/Tag Out Battery Disconnect
- Ignition Key Stop Switch
- Rear Camera
GUARDING
- ROPS ISO 12117-2:2008
- Top Guard ISO 10262:1998 (Level I)
OTHER
- Locks on External Enclosure Doors
- Lockable Fuel Cap
- Beacon Socket
- Rear Reflectors

Optional Equipment

HYDRAULICS
- Third Auxiliary
OPERATOR ENVIRONMENT
- Push to Start with Bluetooth® Key
- Air Suspension Heated Seat
- Seat Belt Reminder System
- Rain Visor
- Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
  – Touch Screen
  – Site Reference System
  – High Definition Camera Capable (IP68 & IP69K)
  – Numeric Security Code
TECHNOLOGY
- Ease of Use Indicate
- Ease of Use E-Fence
- Ease of Use Laser Catcher
- Cat Grade Advanced 2D
- Cat Grade 3D
UNDERCARRIAGE
- Wide Dozer Blade
- Steel Tracks (450 mm/17.7 in wide)
- Wide Steel Tracks (600 mm/23.6 in)
- Steel Track with Rubber Pads
- Track Guides
BOOM, STICK AND LINKAGES
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Attachments including Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Control Valve (Standard in Europe)
- Stick Lowering Control Valve (Standard in Europe)
- Certified Lifting Eye
ELECTRICAL
- Travel Alarm
- Rear and Side Camera
- Rotating Beacon
GUARDING
- Top Guard ISO 10262:1998 (Level II)
- Front Guard (Mesh) ISO 10262:1998 (Level I)
- Front Guard (Heavy Duty) ISO 10262:1998 (Level II)
- Track Guards
OTHER
- Counterweight (250 kg/551 lb)
- Counterweight (500 kg/1103 lb)
- Water Jacket Heater
- Refueling Pump
