CS7
- Operating Weight - With Cab
- 16116 lb / 7310 kg
- Compaction Width
- 66 in / 1676 mm
- Gross Power
- 99.8 hp / 74.4 kW

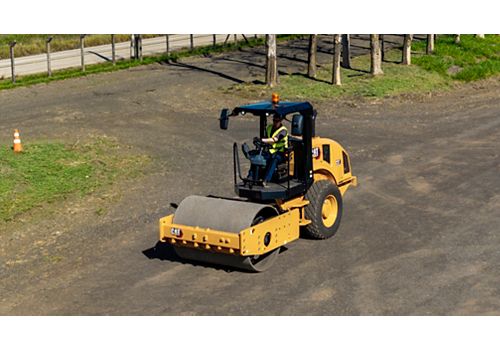

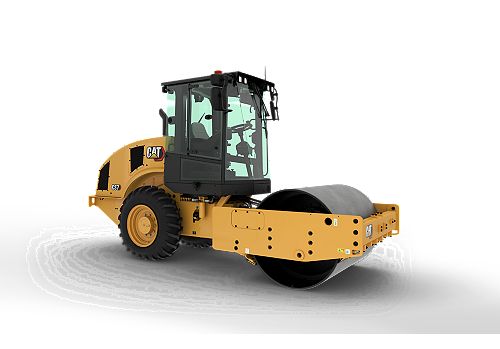

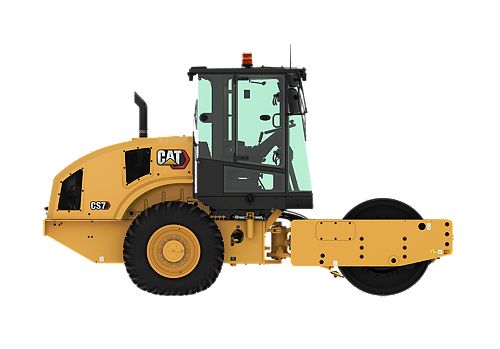

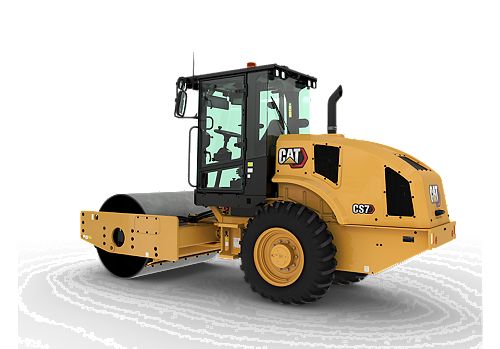

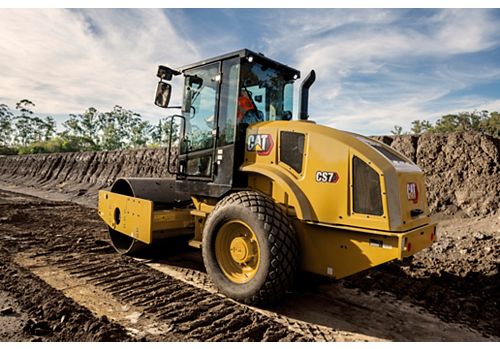

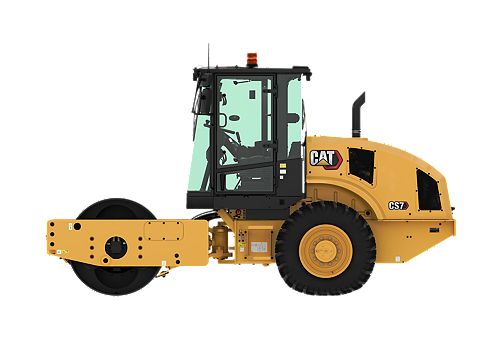

The Cat® CS7 smooth drum vibratory soil compactor continues a legacy of built-in quality and reliability. This 7-metric ton roller is ideal for trenching, utility work and smaller infrastructure projects with granular soils.
| Engine | |
|---|---|
| Gross Power | 99.8 hp / 74.4 kW |
| Engine Power - ISO 14396 | 99.8 hp / 74.4 kW |
| Net Power - ISO 9249 | 94.1 hp / 70.2 kW |
| Net Power - SAE J1349:2011 | 94.1 hp / 70.2 kW |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at the engine flywheel when equipped with a direct drive fan, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat C3.6 |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Stroke | 4.7 in / 120 mm |
| Bore | 3.9 in / 98 mm |
| Build Number | 03B |
| Vibratory System | |
|---|---|
| Vibratory Frequency - Standard | 1915 VPM / 31.9 Hz |
| Variable Frequency Option Range | 23.3-31.9 Hz (1,400-1,915 vpm) |
| Nominal Amplitude - High | 0.066 in / 1.68 mm |
| Nominal Amplitude - Low | 0.033 in / 0.85 mm |
| Centrifugal Force - Maximum | 29991 lb / 133.4 kN |
| Centrifugal Force - Minimum | 15057 lb / 67 kN |
| Static Linear Load - With Cab | 115.9 lb/in / 20.7 kg/cm |
| Static Linear Load - With ROPS/FOPS Canopy | 112.6 lb/in / 20.1 kg/cm |
| Weights | |
|---|---|
| Operating Weight - With Cab | 16116 lb / 7310 kg |
| Operating Weight - With ROPS/FOPS Canopy | 15487 lb / 7025 kg |
| Weight - Drum with Cab | 7628 lb / 3460 kg |
| Weight - Drum with ROPS/FOPS Canopy | 7408 lb / 3360 kg |
| Note (1) | Operating weights are approximate and consider full fluids, standard vibratory system and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. Smooth drum configurations with flotation tires, and padfoot shell kit configurations with lug tread tires. Shell kit weights listed include installed shell kit and scrapers. |
| Dimensions | |
|---|---|
| Compaction Width | 66 in / 1676 mm |
| Overall Length | 16.7 ft / 5091 mm |
| Overall Length - With Blade Option | 18.4 ft / 5609 mm |
| Overall Width | 70.9 in / 1800 mm |
| Overall Width - With Blade Option | 83.5 in / 2121 mm |
| Maximum Height | 9.4 ft / 2852 mm |
| Drum Diameter | 48.1 in / 1221 mm |
| Wheel Base | 8.5 ft / 2601 mm |
| Optional Blade Height | 22.9 in / 582 mm |
| Operating Specifications | |
|---|---|
| Travel Speed - Maximum | 7.1 mile/h / 11.4 km/h |
| Ground Clearance | 15.4 in / 391 mm |
| Curb Clearance | 14.5 in / 369 mm |
| Turning Radius - Inside Drum Edge | 10 ft / 3.05 m |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 37 gal (US) / 140 l |
| DEF Tank | 2.4 gal (US) / 9 l |
| Cooling System | 4.8 gal (US) / 18 l |
| Engine Oil - With Filter | 2.8 gal (US) / 10.6 l |
| Eccentric Weight Housings (combined) | 3.4 gal (US) / 13 l |
| Axle and Final Drives | 3.9 gal (US) / 14.6 l |
| Hydraulic Tank | 6.9 gal (US) / 26 l |
| Sustainability | |
|---|---|
| Recyclability | 96% |
