CP7
- Operating Weight - With Cab
- 16810 lb / 7625 kg
- Compaction Width
- 66 in / 1676 mm
- Gross Power
- 99.8 hp / 74.4 kW

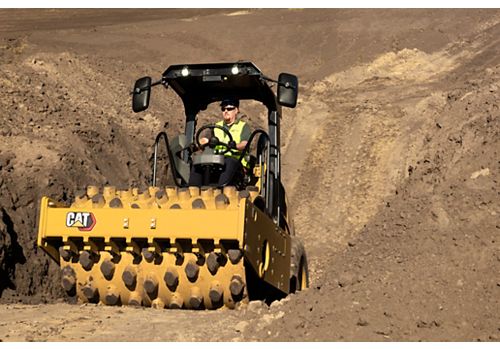

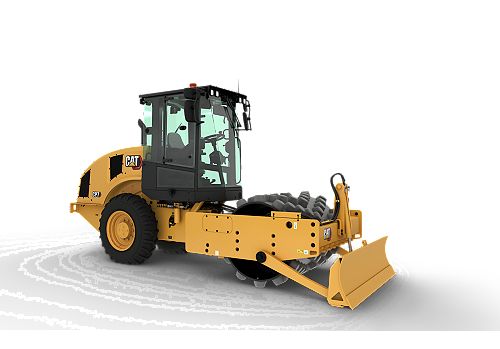

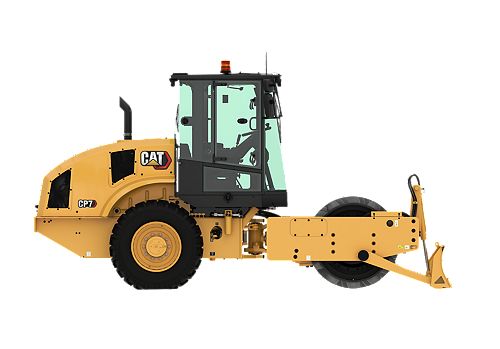

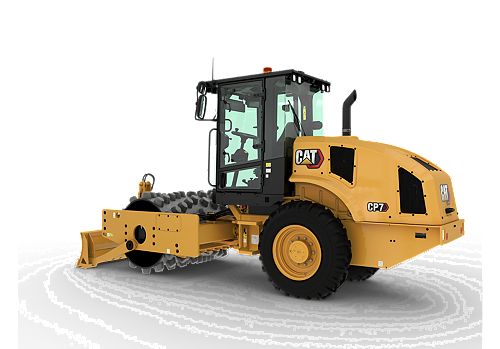

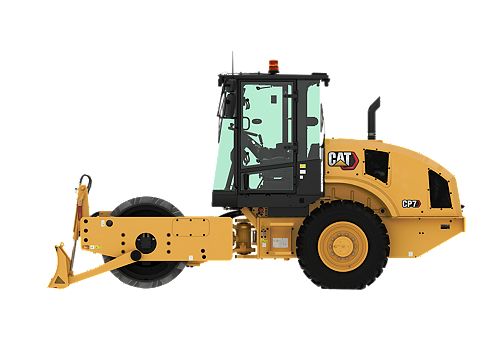

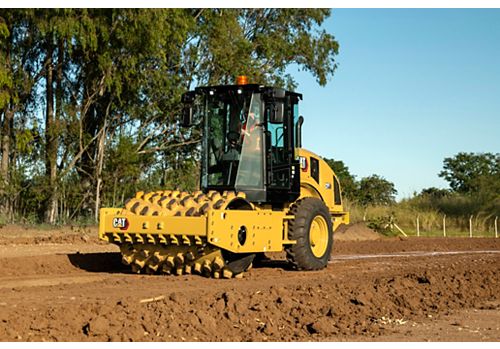

The Cat® CP7 padfoot drum vibratory soil compactor continues a legacy of built-in quality and reliability. This 7-metric ton sheepsfoot roller is ideal for trenching, utility work and smaller infrastructure projects on cohesive and semi-cohesive soils.
| Engine | |
|---|---|
| Gross Power | 99.8 hp / 74.4 kW |
| Engine Power - ISO 14396 | 99.8 hp / 74.4 kW |
| Net Power - ISO 9249 | 94.1 hp / 70.2 kW |
| Net Power - SAE J1349:2011 | 94.1 hp / 70.2 kW |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at the engine flywheel when equipped with a direct drive fan, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat C3.6 |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Stroke | 4.7 in / 120 mm |
| Bore | 3.9 in / 98 mm |
| Build Number | 03B |
| Vibratory System | |
|---|---|
| Vibratory Frequency - Standard | 1915 VPM / 31.9 Hz |
| Variable Frequency Option Range | 23.3-31.9 Hz (1,400-1,915 vpm) |
| Nominal Amplitude - High | 0.061 in / 1.55 mm |
| Nominal Amplitude - Low | 0.031 in / 0.78 mm |
| Centrifugal Force - Maximum | 29991 lb / 133.4 kN |
| Centrifugal Force - Minimum | 15057 lb / 67 kN |
| Weights | |
|---|---|
| Operating Weight - With Cab | 16810 lb / 7625 kg |
| Operating Weight - With ROPS/FOPS Canopy | 16182 lb / 7340 kg |
| Weight - Drum with Cab | 8179 lb / 3710 kg |
| Weight - Drum with ROPS/FOPS Canopy | 7970 lb / 3615 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
| Dimensions | |
|---|---|
| Compaction Width | 66 in / 1676 mm |
| Overall Length | 16.7 ft / 5091 mm |
| Overall Length - With Blade Option | 18.4 ft / 5609 mm |
| Overall Width | 70.9 in / 1800 mm |
| Overall Width - With Blade Option | 83.5 in / 2121 mm |
| Maximum Height | 9.3 ft / 2849 mm |
| Drum Diameter | 48.1 in / 1222 mm |
| Wheel Base | 8.5 ft / 2601 mm |
| Optional Blade Height | 22.9 in / 582 mm |
| Operating Specifications | |
|---|---|
| Travel Speed - Maximum | 7.1 mile/h / 11.4 km/h |
| Ground Clearance | 15.2 in / 387 mm |
| Curb Clearance | 14.6 in / 371 mm |
| Turning Radius - Inside Drum Edge | 10 ft / 3.05 m |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 37 gal (US) / 140 l |
| DEF Tank | 2.4 gal (US) / 9 l |
| Cooling System | 4.8 gal (US) / 18 l |
| Engine Oil - With Filter | 2.8 gal (US) / 10.6 l |
| Eccentric Weight Housings (combined) | 3.4 gal (US) / 13 l |
| Axle and Final Drives | 3.9 gal (US) / 14.6 l |
| Hydraulic Tank | 6.9 gal (US) / 26 l |
| Sustainability | |
|---|---|
| Recyclability | 97% |
