D11 XE
- Engine Power - Net SAE J1349/ISO 9249 - Forward
- 861 hp / 742 kW
- Operating Weight
- 238794 lb / 108314 kg
- Ground Clearance*
- 31.4 in / 798 mm

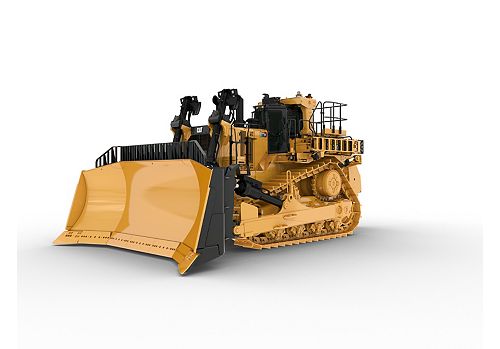

The Cat® D11 XE is the most efficient, highest-producing D11 ever. It's built on a legacy of performance and reliability, with a Caterpillar-designed electric powertrain that improves fuel efficiency and increases productivity.
It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
| Engine - U.S. EPA Tier 4 Final/EU Stage V | |
|---|---|
| Engine Model | Cat® C32B |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 hp / 742 kW |
| Displacement | 1959 in³ / 32.1 l |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 956 hp / 713 kW |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,600 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
| Engine - U.S. EPA Tier 2 Equivalent | |
|---|---|
| Engine Model | Cat® C32B |
| Displacement | 1959 in³ / 32.1 l |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 hp / 742 kW |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 959 hp / 715 kW |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,600 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
| Fuel Tank Capacities | |
|---|---|
| Fuel Tank - Usable Volume | 466 gal (US) / 1763 l |
| Service Refill Capacities | |
|---|---|
| Cooling System | 50.7 gal (US) / 192 l |
| Engine Crankcase | 35.1 gal (US) / 133 l |
| Powertrain | 120 gal (US) / 494 l |
| Power Train - Refill Volume | 109.6 gal (US) / 415 l |
| Final Drive - Each | 10.6 gal (US) / 40 l |
| Roller Frames - Each | 24.8 gal (US) / 94 l |
| Hydraulic Tank | 42.2 gal (US) / 160 l |
| Hydraulic System Tank and Chassis | 64.7 gal (US) / 245 l |
| Hydraulic System Chassis + Blade and Ripper (Standard) | 117.6 gal (US) / 445 l |
| Hydraulic System Chassis + Blade and Ripper (Carrydozer) | 143.4 gal (US) / 540 l |
| Weights | |
|---|---|
| Operating Weight | 238794 lb / 108314 kg |
| Operating Weight - Carrydozer | 257958 lb / 117007 kg |
| Note (1) | Operating weight includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator. |
| Note (2) | CD Operating Weight includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator. |
| Hydraulic Controls | |
|---|---|
| Pump Type | Variable displacement piston pump |
| Combined Pump Output - Implement | 177 gpm / 670 L/min |
| Undercarriage | |
|---|---|
| Width - Shoe | 28 in / 710 mm |
| Width - Shoe - CD | 36 in / 915 mm |
| Shoes/Side | 41 |
| Grouser Height | 4 in / 101 mm |
| Pitch | 12.5 in / 318 mm |
| Ground Clearance* | 30.6 in / 777 mm |
| Track Gauge | 114 in / 2896 mm |
| Length - Track on Ground | 175 in / 4444 mm |
| Ground Contact Area | 9781 in² / 6.3 m² |
| Ground Contact Area - CD | 12605 in² / 8.1 m² |
| Track Rollers/Side | 8 |
| Number of Carrier Rollers | 1 per side (optional) |
| Air Conditioning System | |
|---|---|
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). See the label or instruction manual for identification of the gas. – If equipped with R-1234yf (Global Warming Potential = 0.501), the system contains 1.75 kg of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (2.2 lbs). – If equipped with R-134a (Global Warming Potential = 1430), the system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons). |
| Standards | |
|---|---|
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008 |
| FOPS | Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II |
| Sound (1) | The exterior sound pressure level for the standard machine (ISO 6396:2008) is 113 dB(A) (sound suppressed). |
| Sound (2) | The operator equivalent sound pressure level (ISO 6396:2008) is 76 dB(A) (sound suppressed). |
| Transmission | |
|---|---|
| 1.0 Forward | 2.5 mile/h / 4 km/h |
| 2.0 Forward | 4.4 mile/h / 7.1 km/h |
| 3.0 Forward | 7 mile/h / 11.3 km/h |
| 1.0 Reverse | 3 mile/h / 4.9 km/h |
| 2.0 Reverse | 5.4 mile/h / 8.7 km/h |
| 3.0 Reverse | 7 mile/h / 11.3 km/h |
| Blades | |
|---|---|
| Semi-Universal (SU)* Capacity | 35.6 yd³ / 27.2 m³ |
| Semi-Universal (SU)* Width Over Endbits | 219.8 in / 5584 mm |
| U-Blade Capacity | 45 yd³ / 34.4 m³ |
| U-Blade Width | 249.6 in / 6340 mm |
| Reclamation Universal - Blade capacity (SAE J1265) | 55 yd³ / 42 m³ |
| Reclamation Universal - Width with blade (over end bits) | 251.9 in / 6395 mm |
| Carry Dozer - Blade capacity (SAE J1265) | 57 yd³ / 43.6 m³ |
| Carry Dozer - Width with blade (over end bits) | 263.9 in / 6704 mm |
| Ripper - Single Shank | |
|---|---|
| Maximum penetration force * (shank vertical) | 68195 lb / 303 kN |
| Maximum penetration depth (standard tip) | 63.5 in / 1612 mm |
| Pryout Force | 146991 lb / 654 kN |
| Ripper - Single Shank, Deep Ripping | |
|---|---|
| Maximum penetration force * (shank vertical) | 68434 lb / 304 kN |
| Maximum penetration depth (standard tip) | 85.5 in / 2172 mm |
| Pryout Force | 146376 lb / 651 kN |
| Ripper - Multi-Shank, Adjustable Parallelogram | |
|---|---|
| Overall Beam Width | 131.1 in / 3330 mm |
| Maximum Penetration Force - Shank Vertical | 69112 lb / 307 kN |
| Maximum Penetration - Standard Tip | 43.3 in / 1100 mm |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 144785 lb / 644 kN |
| Dimensions | |
|---|---|
| Ground Clearance* | 31.4 in / 798 mm |
| Track Gauge | 114 in / 2896 mm |
| Width - Over Trunnions | 172.4 in / 4379 mm |
| Height - FOPS Cab* | 173.4 in / 4405 mm |
| Height - Top of Stack* | 179.1 in / 4549 mm |
| Height - ROPS/Canopy* | 185.9 in / 4723 mm |
| Drawbar Height (Center of Clevis)* | 37.1 in / 942 mm |
| Length - Track on Ground | 175 in / 4444 mm |
| Overall Length - Basic Tractor | 242.5 in / 6160 mm |
| Length - Basic Tractor - With Drawbar | 242.5 in / 6160 mm |
| Length - With SU-Blade** | 337.8 in / 8579 mm |
| Length - With U-Blade | 340.2 in / 8641 mm |
| Length - With Single-Shank Ripper | 319.2 in / 8107 mm |
| Length - With Multi-Shank Ripper | 331.8 in / 8427 mm |
| Width - Without Trunnions - Standard Shoe | 148.9 in / 3782 mm |
| Note (1) | *Includes grouser height for total dimensions on hard surfaces. |
| Note (2) | **CD Blade on D11/D11 XE CD |
