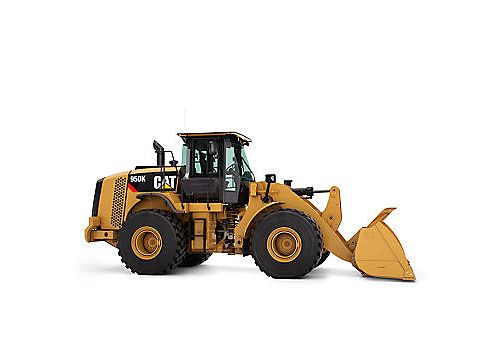

Medium Wheel Loaders | Heavy Equipment

Engine
Net Power - ISO 9249	197 hp / 147 kW
Engine Model	Cat? C7 ACERT?
Net Power - 80/1269/EEC	197 hp / 147 kW
Flywheel Power	197 hp / 147 kW
Gross Power - SAE J1995:2014	216 hp / 161 kW
Net Power - SAE J1349:2011	195 hp / 145 kW
Peak Torque - 1,400 rpm - Net	669 ft-lb / 907 N·m
Total Torque Rise	54 %
Bore	4.33 in / 110 mm
Stroke	5 in / 127 mm
Displacement	439 in³ / 7.2 l

Weights
Operating Weight	40435 lb / 18338 kg

Buckets
Bucket Capacities	2.5-3.5 m3 3.25-4.5 yd3
Maximum Bucket Capacity	4.5 yd³ / 3.5 m³
Bucket Width	9.6 ft / 2927 mm
Capacity - Reference bucket	4 yd³ / 3.1 m³
Type - Reference bucket	General purpose
Breakout Force - Reference Bucket	37125 lb / 165 kN

Operating Specifications
Dump Clearance	9.59 ft / 2.922 m
Breakout Force	37125 lb / 165 kN
Static Tipping Load - Full Turn - Bucket	24068 lb / 10915 kg
Static Tipping Load - Full Turn - Forks	9421 lb / 4273 kg

Transmission
Forward - 1	4.3 mile/h / 6.9 km/h
Forward - 2	7.9 mile/h / 12.7 km/h
Forward - 3	13.9 mile/h / 22.3 km/h
Forward - 4	23 mile/h / 37 km/h
Reverse - 1	4.7 mile/h / 7.6 km/h
Reverse - 2	8.6 mile/h / 13.9 km/h
Reverse - 3	15.2 mile/h / 24.5 km/h
Reverse - 4	24.9 mile/h / 40 km/h

Hydraulic System
Bucket/Work Tool System - Pump Output	71 gal/min / 270 l/min
Steering System - Pump Type	Piston
Hydraulic Cycle Time - Raise	6.2 s
Hydraulic Cycle Time - Lower, Empty, Float Down	2.5 s
Hydraulic Cycle Time - Total	10 s

Loader Hydraulic System
Hydraulic Cycle Time - Dump	1.3 s

Brakes
Brakes	Meets required standards.

Axles
Front	Fixed front
Rear	Oscillating +/- 13?
Maximum Single-Wheel Rise and Fall	18.5 in / 470 mm

Tires
Tires	Choose from a variety of tires to match your application.

Cab
ROPS/FOPS	Meets SAE and ISO standards.

Service Refill Capacities
Fuel Tank - Standard	83 gal (US) / 314 l
Cooling System	11 gal (US) / 42 l
Crankcase	7.9 gal (US) / 30 l
Transmission	9 gal (US) / 34 l
Differential - Final Drives - Front	9.5 gal (US) / 36 l
Differential - Final Drives - Rear	9.5 gal (US) / 36 l
Hydraulic Tank	29 gal (US) / 110 l

Dimensions
Height - Top of ROPS	11.3 ft / 3444.3 mm
Height - Top of Exhaust Pipe	11.05 ft / 3369 mm
Height - Top of Hood	8.08 ft / 2462 mm
Ground Clearance	1.35 ft / 412 mm
B-Pin Height - Standard	13.1 ft / 3992 mm
B-Pin Height - High-Lift	14.73 ft / 4490 mm
Centerline Rear Axle to Edge of Counterweight	6.41 ft / 1955 mm
Wheel Base	10.99 ft / 3350 mm
B-Pin Height - Carry - Standard	1.49 ft / 455 mm
B-Pin Height - Carry - High-Lift	1.94 ft / 591 mm
Centerline of Rear Axle to Hitch	5.5 ft / 1675 mm
Rack Back - Maximum Lift	59.5 °
Dump Angle at Maximum Lift	48.2 °
Rack Back - Carry	45 °
Rack Back - Ground	38.5 °
Height - Center Line of Axle	2.45 ft / 748 mm

Standard Equipment

ELECTRICAL
- Alarm, back-up
- Alternator, 80-amp brushless
- Batteries, maintenance-free (2) 950 CCA
- Ignition key; start/stop switch
- Lighting system, halogen (6 total)
- Main disconnect switch
- Starter, electric, heavy-duty
- Starting and charging system (24-volt)
OPERATOR ENVIRONMENT
- Bucket/work tool function lockout
- Cab, pressurized and sound-suppressed ROPS/FOPS
- Cigar lighter and ashtray (12-volt)
- Coat hook (2) with straps
- Computerized monitoring system
- Controls, electrohydraulic, lift and tilt function
- Heater and defroster
- Horn, electric (steering wheel/console)
- Light, dome (cab)
- Lunchbox, beverage holders and personal tray
- Mirror, rearview (internally mounted)
- Seat, Cat Comfort (cloth) with air suspension
- Seat belt, retractable, 51 mm (2") wide
- Steering column, adjustable angle (SW-CCS) and length (CCS)
- Wet-Arm wipers and washers, front and rear
- Window, sliding (left and right side)
POWER TRAIN
- Brakes, full hydraulic enclosed wet-disc with Integrated Braking System (IBS) and brake wear indicator
- Engine, Cat C7 with ACERT Technology and ATAAC
- Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
- Filters, fuel, primary/secondary
- Filters, engine air, primary/secondary
- Fuel priming pump (electric)
- Fuel/water separator
- Muffler, sound suppressed
- Radiator, unit core
- Starting aid, air inlet heater
- Switch, transmission neutralizer lockout
- Torque converter, free wheel stator
- Transmission, automatic, planetary powershift (4F/4R)
- Variable Shift Control (VSC)
OTHER
- Automatic bucket positioner
- Counterweight
- Couplings, Caterpillar O-ring face seal
- Doors, service access (locking)
- Ecology drains, engine, transmission and hydraulics
- Fenders, steel (front and rear)
- Guard, airborne debris
- Hitch, drawbar with pin
- Hood, non-metallic, power tilting
- Hoses, Caterpillar XT™
- Hydraulic oil cooler
- Kickout, lift and tilt, automatic (in-cab adjustable)
- Linkage, Z-bar, cast crosstube/tilt lever
- Oil sampling valves
- Product Link ready
- Remote diagnostic pressure taps
- Service center, electrical and hydraulic
- Sight gauges:
- Steering, load sensing
- Vandalism protection caplocks
TIRES, RIMS, WHEELS
- A tire must be selected from the mandatory attachments section. Base machine price includes an allowance based on a premium radial tire.
ANTIFREEZE
- Premixed 50% concentration of Extended Life Coolant with freeze protection to -34°C (-29°F)

Optional Equipment

Differentials
- Limited slip, front or rear
- NO-SPIN, rear
Payload Control System
- Payload Control System Printer
Special Machine Arrangements
- High Lift Arrangement, two- and three-valve
- Forest Machine Arrangement
- Scrap Handler Arrangement
- Sewer and Water Arrangement
- Waste Handler Arrangement
- Yard Loader Value Package

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model
1524 mm (60 in) Fusion
1830 mm (72 in) Fusion
2.4m (96") tine

Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Model	Width	Tine Length	Weight
2813mm (110in) Pipe & Pole Fork, Fusion™ Coupler	110 lb/in / 2813 mm	72 in / 1829 mm	3800 lb / 1724 kg

General Purpose Buckets

For use in low-impact, moderately abrasive materials such as dirt, loam, gravel, and clay.

Model	Interface	Width	Weight
General Purpose Bucket 3.1m³ (4.00yd³)Performance Series	Use as Pin-on or with Cat Pin Grabber Coupler	72 in / 2894 mm	3073 lb / 1394 kg
General Purpose Bucket 3.4m³ (4.50yd³)Performance Series	Fusion	114 in / 2894 mm	3552 lb / 1611 kg
General Purpose Bucket 2.7m³ (3.50yd³)Performance Series	Pin On	114 in / 2894 mm	3206 lb / 1454 kg
General Purpose Bucket 3.1m³ (4.00yd³)Performance Series	Pin On	114 in / 2894 mm	3404 lb / 1544 kg
General Purpose Bucket 3.3m³ (4.25yd³)Performance Series	VCE	114 in / 2894 mm	4123 lb / 1870 kg
General Purpose Bucket 3.3m³ (4.25yd³)Performance Series	Fusion	114 in / 2894 mm	3294 lb / 1494 kg
General Purpose Bucket 3.1m³ (4.00yd³)Performance Series	Use as Pin-on or with Cat Pin Grabber Coupler	72 in / 2894 mm	3274 lb / 724 kg
General Purpose Bucket 3.4m³ (4.50yd³)Performance Series	Pin On	134.4 in / 3413 mm	5403.5 lb / 2451 kg
General Purpose Bucket 3.8m³ (5.00yd³)Performance Series	Pin On	114 in / 2894 mm	3907 lb / 1772 kg
General Purpose Bucket 3.1m³ (4.00yd³)Performance Series	Pin On	114 in / 2894 mm	3516 lb / 1595 kg
General Purpose Bucket 3.3m³ (4.50yd³)Performance Series	Pin On	114 in / 2894 mm	3666 lb / 1663 kg
General Purpose Bucket 3.4m³ (4.50yd³)Performance Series	Pin On	126 in / 3201 mm	4449 lb / 2018 kg
General Purpose Bucket 3.8m³ (5.00yd³)Performance Series	Pin On	114 in / 2894 mm	3907 lb / 1772 kg
General Purpose Bucket 3.1m³ (4.00yd³)Performance Series	Fusion	72 in / 2927 mm	3794 lb / 822 kg
General Purpose Bucket 3.4m³ (4.50yd³)Performance Series	Fusion	72 in / 2927 mm	3948 lb / 1791 kg
General Purpose Bucket 3.4m³ (4.50yd³)Performance Series	Pin On	79 in / 2927 mm	4242 lb / 1924 kg
General Purpose Bucket 3.6m³ (4.75yd³)Performance Series	Vertical Pin Lock	126 in / 3200 mm	4594 lb / 2084 kg
General Purpose Bucket 3.8m³ (5.00yd³)Performance Series	Pin On	115 in / 2927 mm	4429 lb / 2009 kg
