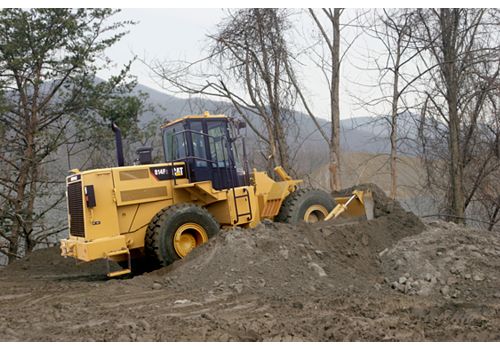

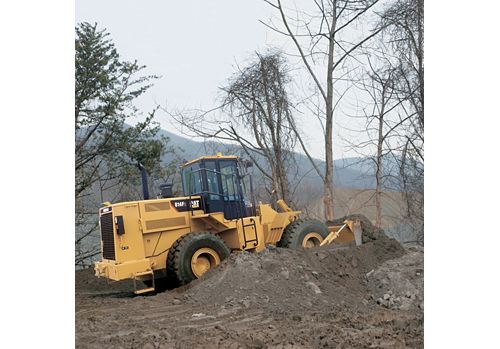

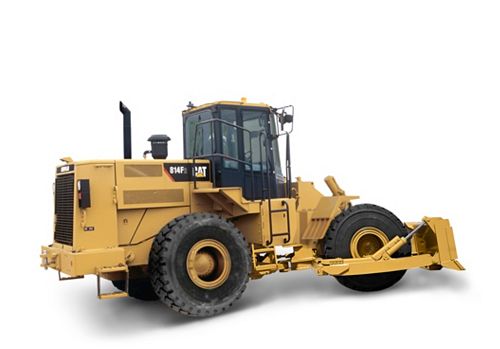

814F Series 2
- Net Power
- 232 hp / 173 kW
- Operating Weight
- 47877 lb / 21713 kg
- Flywheel Power
- 232 hp / 173 kW
Specifically designed for mobility, maneuverability and good speed in tough applications.
| Engine | |
|---|---|
| Engine Model | Cat® C9 ACERT™ |
| Net Power | 232 hp / 173 kW |
| Flywheel Power | 232 hp / 173 kW |
| Gross Power | 253 hp / 189 kW |
| Net Power - EEC 80/1269 | 235 hp / 175 kW |
| Net Power - ISO 9249 | 235 hp / 175 kW |
| Net Power - SAE J1349 (JAN90) | 232 hp / 173 kW |
| Bore | 4.4 in / 112 mm |
| Stroke | 5.9 in / 149 mm |
| Displacement | 537 in³ / 8.8 l |
| Torque Rise | 30 % |
| Cylinders | 6 |
| Transmission | |
|---|---|
| Number of Forward Speeds | 4 |
| Number of Reverse Speeds | 4 |
| Forward - 1 | 3.6 mile/h / 5.7 km/h |
| Forward - 2 | 6.4 mile/h / 10.2 km/h |
| Forward - 3 | 11.2 mile/h / 17.9 km/h |
| Forward - 4 | 19.3 mile/h / 31 km/h |
| Reverse - 1 | 4.1 mile/h / 6.5 km/h |
| Reverse - 2 | 7.3 mile/h / 11.6 km/h |
| Reverse - 3 | 12.7 mile/h / 20.4 km/h |
| Reverse - 4 | 21.8 mile/h / 34.9 km/h |
| Hydraulic System | |
|---|---|
| Lift Cylinder, Bore and Stroke | 120.62 mm x 913.9 mm 4.74 in x 35.98 in |
| Steering Cylinder, Bore and Stroke | 101.6 mm x 597 mm 3.99 in x 23.5 in |
| Relief Valve Setting | 2255 psi / 15500 kPa |
| Brakes | |
|---|---|
| Brakes | Meet OSHA regulations |
| Axles | |
|---|---|
| Front | Fixed |
| Rear | Oscillating ±12° |
| Steering | |
|---|---|
| Steering Angle | ±36° |
| Turning Radius - Outside Corner of Blade | 23.5 ft / 7168 mm |
| Turning Radius - Inside Corner of Blade | 12.2 ft / 3727 mm |
| Tires | |
|---|---|
| Standard Tire Size | 26.5 R25 XHA MX L3 |
| Tires | L3 rock tread |
| Weights | |
|---|---|
| Operating Weight | 47877 lb / 21713 kg |
| Service Refill Capacities | |
|---|---|
| Fuel Tank - Standard | 117.8 gal (US) / 446 l |
| Cooling System | 14.5 gal (US) / 55 l |
| Crankcase | 9 gal (US) / 34 l |
| Transmission | 13.2 gal (US) / 50 l |
| Hydraulic Tank | 23.2 gal (US) / 88 l |
| Differential - Final Drives - Front | 17.1 gal (US) / 65 l |
| Differential - Final Drives - Rear | 17.1 gal (US) / 65 l |
| Cab | |
|---|---|
| Cab | Meets SAE and ISO standards |
| ROPS/FOPS | Standard |
| Operating Specifications | |
|---|---|
| Turning Circle - With Blade | 4703.4 ft / 1433.6 m |
| Ground Clearance | 14.41 in / 366 mm |
| Sound Performance | |
|---|---|
| Standards | Meet required standards |
| Blade Specifications | |
|---|---|
| Blade Capacities | 2.66 m3 |
| Straight Blade - Capacity | 3.49 yd³ / 2.66 m³ |
| Moldboard - Length | 11.8 ft / 3596 mm |
| Straight Blade - Overall Width | 11.8 ft / 3596 mm |
| Straight Blade - Height | 3.6 ft / 1110 mm |
| Straight Blade - Digging Depth | 1.73 ft / 528 mm |
| Maximum Lift Above Ground | 2.36 ft / 718 mm |
| Blade Tip Angle - Total | 51.9 ° |
| Blade Tip Angle - Forward | 10 ° |
| Blade Tip Angle - Back | 4.5 ° |
| Blade Tilt Angle - Right | 4.5 ° |
| Blade Tilt Angle - Left | 8 ° |
| Straight Blade - Maximum Tilt | 2.6 ft / 795 mm |
| Straight Blade - Total Operating Weight | 47868.91 lb / 21713 kg |
| Dimensions | |
|---|---|
| Height - Top of Cab | 10.91 ft / 3326 mm |
| Height - Top of Exhaust Pipe | 10.84 ft / 3304 mm |
| Height - Top of Hood | 7.79 ft / 2373 mm |
| Ground Clearance - Bumper | 2.45 ft / 748 mm |
| Height - Bottom of Ladder | 1.45 ft / 441 mm |
| Centerline of Rear Axle to Edge of Bumper | 6.14 ft / 1871 mm |
| Centerline of Rear Axle to Hitch | 5.5 ft / 1675 mm |
| Wheel Base | 11 ft / 3350 mm |
| Length - With Blade on Ground | 22.58 ft / 6881 mm |
| Ground Clearance | 1.2 ft / 366 mm |
