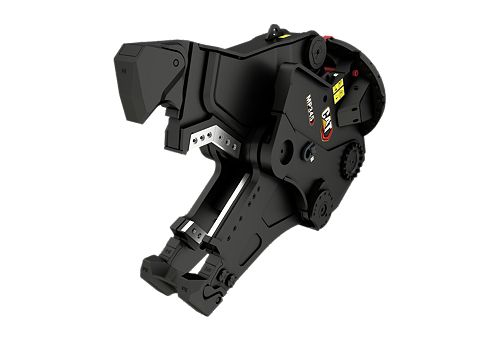

MP345 Concrete Cutter Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.3 s
- Crushing Force - Primary Cutter
- 573 Sh Ton / 5102 kN
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.3 s |
| Crushing Force - Primary Cutter | 573 Sh Ton / 5102 kN |
| Crushing Force - Cutter Tip | 268 Sh Ton / 2382 kN |
| Crushing Force - Tooth Tip | 188 Sh Ton / 1670 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 350 bar / 5076 psi |
| Jaw Circuit - Max. Oil Flow | 360 l/min / 95 gal/min |
| Rotation Circuit - Max. Oil Pressure | 2321 psi / 160 bar |
| Rotation Circuit - Max. Oil Flow | 50 l/min / 13 gal/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 36 in / 913 mm |
| Cutter Length | 20 in / 501 mm |
| Jaw Opening - Maximum | 40.3 in / 1023 mm |
| Jaw Width - Fixed | 509 mm / 20 in |
| Jaw Width - Moveable | 7.4 in / 187 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 4316 kg / 9515 lb |
| Weight - Jaw Only | 1971 kg / 4345 lb |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 45 tons |
| Excavator Maximum | 65 tons |
Large Excavators
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 350 - Tier 4 / Stage V | 413 hp / 308 kW | 105100 lb / 46000 kg | 26.11 ft / 8210 mm |
| 352 | 443 hp / 330 kW | 107800 lb / 48900 kg | 26.11 ft / 8210 mm |
