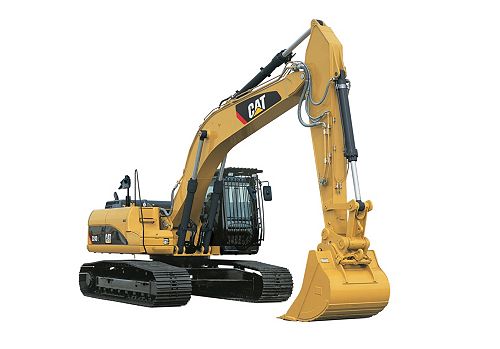

324D L

Net Flywheel Power: 188 hp / 140 kW
Operating Weight: 54660 lb / 24790 kg
Operating Weight - Maximum: 57871 lb / 26250 kg

The D Series incorporates innovations for improved performance and versatility.

Specifications
Equipment
Related Products

Engine
Engine Model	Cat® C7 ACERT™
Net Flywheel Power	188 hp / 140 kW
Net Power - ISO 9249	188 hp / 140 kW
Bore	4.33 in / 110 mm
Stroke	5 in / 127 mm
Displacement	439.4 in³ / 7.2 l
Cylinders	6
Net Power - SAE J1349:2011	186 hp / 139 kW
Net Power - EEC 80/1269	188 hp / 140 kW

Weights
Operating Weight	54660 lb / 24790 kg
Operating Weight - Maximum	57871 lb / 26250 kg
Operating Weight - Standard Undercarriage	54660 lb / 24790 kg
Counterweight	9964.88 lb / 4520 kg

Service Refill Capacities
Fuel Tank Capacity	137 gal (US) / 520 l
Cooling System	8.2 gal (US) / 31 l
Engine Oil	8 gal (US) / 30 l
Swing Drive	2.6 gal (US) / 10 l
Final Drive - Each	1.6 gal (US) / 6 l
Hydraulic System - Including Tank	79 gal (US) / 300 l
Hydraulic Tank	38 gal (US) / 145 l

Swing Mechanism
Swing Speed	9.6 r/min
Swing Torque	54137 lb/ft / 73.4 kN·m

Drive
Maximum Drawbar Pull	51032 lb / 227 kN
Maximum Travel Speed	3.4 mile/h / 5.4 km/h

Hydraulic System
Main Implement System - Maximum Flow (2x)	58 gal/min / 220 l/min
Maximum Pressure - Equipment	5076 psi / 35000 kPa
Maximum Pressure - Heavy Lift	5221 psi / 36000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa
Maximum Pressure - Swing	3553 psi / 24500 kPa
Pilot System - Maximum Flow	9 gal/min / 32.4 l/min
Pilot System - Maximum Pressure	566 psi / 3900 kPa
Boom Cylinder - Bore	5.3 in / 135 mm
Boom Cylinder - Stroke	51.4 in / 1305 mm
Stick Cylinder - Bore	5.5 in / 140 mm
Stick Cylinder - Stroke	65.4 in / 1660 mm
B1 Family Bucket Cylinder - Bore	4.7 in / 120 mm
B1 Family Bucket Cylinder - Stroke	43.5 in / 1104 mm
CB1 Family Bucket Cylinder - Bore	5.1 in / 130 mm
CB1 Family Bucket Cylinder - Stroke	45.5 in / 1156 mm
DB Family Bucket Cylinder - Bore	5.9 in / 150 mm
DB Family Bucket Cylinder - Stroke	45.3 in / 1151 mm
Main Normal Relief Pressure	5076 psi / 35000 kPa

Sound Performance
Performance	ANSI/SAE J1166 APR 90

Standards
Brakes	SAE J1026 APR90
Cab/FOGS	SAE J1356 FEB88

Track
Standard with Long Undercarriage	32 in / 800 mm
Optional	28 in / 700 mm
Optional - Double Grouser	23.62 in / 600 mm
Number of Shoes - Each Side - Long Undercarriage	51
Number of Track Rollers - Each Side - Long Undercarriage	8
Number of Carrier Rollers - Each Side - Long Undercarriage	2
Ground Clearance - Fixed Gauge	17.32 in / 440 mm

Dimensions
Transport Width	133.46 in / 3390 mm
Shipping Height	10.4 ft / 3170 mm
Counterweight Clearance	41.73 in / 1060 mm

Standard Equipment

Electrical
- 65 Ampere alternator
- Base machine light (frame)
- Lights, cab mounted (Two)
- Horn
- Pre-start monitoring system - checks for low fluids
Operator Environment
- Air conditioner, heater, defroster with automatic climate control
- AM/FM Radio with antenna and 2 speakers
- Ashtray with 24 volt lighter
- Beverage/cup holder
- Bolt-on Falling object Guarding System (FOGS) capability
- Cab Glass Openable and retractable two- piece front windshield Shy-light, pop-up, polycarbonate
- Coat hook
- Floor mat
- Instrument panel and gauges
- Joysticks, console mounted, pilot operated
- Light, interior
- Literature compartment
- Monitor, full graphic color display
- Neutral lever (lock out) for all controls
- Polycarbonate side windows
- Positive filtered ventilation
- Pressurized cab
- Seat, suspension, with high back and head rest
- Seat belt, retractable - 76 mm (3 in)
- Storage compartment suitable for lunch box cooler
- Sun shade (for skylight)
- Travel control pedals with removable hand levers
- Windshield wiper and washer (upper and lower)
Engine/Power Train
- C7 with ACERT™ Technology
- Automatic engine speed control with one touch low idle
- Cooling
- Electric priming pump
- Straight line travel
- Two-speed auto-shift travel
- Water separator in fuel line
Undercarriage
- Grease lubricated track
- Hydraulic track adjusters
- Idler and center section track guards
Other Standard Equipment
- Automatic swing parking brake
- Auxiliary hydraulic valve
- Capability of stackable valves (max of 3) for main valve
- Capability of auxiliary circuit
- Counterweight with lifting eyes
- Door locks, cap locks and Caterpillar® one key security system
- Fine swing control
- Fully pressurized hydraulic system
- Heavy lift
- Mirrors (frame-right, cab left)
- S•O•SSM quick sampling valves for engine and hydraulic oil
- Travel alarm
- Product Link PL321SR

Optional Equipment

Front Linkage
- Booms
- Sticks
- Bucket Linkage
- Boom Lowering Control Device
Electrical
- Machine Security System
- Power supply (12V-10 AMP)
Guarding
- Falling Object Guarding System (FOGS)
- Front windshield guard
- Heavy-duty bottom guards
- Rubber bumpers
- Track guiding guards
- Vandalism guards
Operator Environment
- Hand control pattern changer (ISO-SAE)
- Rear window, secondary exit
- Sunscreen - roller type
- Seat, high back with air suspension and heater
- Third pedal, straight travel
Engine/Power Train
- High ambient cooling
- Prefilter, air
- Starting, Cold weather package
Undercarriage
- Track shoes
- Heavy-duty rollers
Auxiliary Hydraulics
- Hammer Circuit
- Thumb Circuit
- Tool Control System
- Hydraulic pin grabber quick coupler and controller
- Lines for booms and sticks
Work Tools
- Wide offering of buckets, tips and sidecutters

Clean-up

These buckets are a blend of Ditch Cleaning and General Duty Bucket capabilities.

Model	Width	Capacity	Weight
Clean-up Bucket 1500 mm (60 in): 439-7298	60 in / 1500 mm	1.33 yd³ / 1.02 m³	1389 lb / 630 kg
Clean-up Bucket 1800 mm (72 in): 439-7314	72 in / 1800 mm	2.37 yd³ / 1.81 m³	2526 lb / 1146 kg
Clean-up Bucket 1800 mm (72 in): 439-7323	72 in / 1800 mm	3.24 yd³ / 2.48 m³	3183 lb / 1444 kg

General Duty

Cat® General Duty Buckets are the perfect choice for general digging, loading and other dirt-handling applications.

Model	Width	Tooth Count	Tooth Style
750mm (30in) Wide Tip	30 in / 750 mm	4 tct	K90
600mm (24in) Wide Tip	24 in / 600 mm	3 tct	K90
1350mm (54in) Wide Tip	54 in / 1350 mm	7 tct	K90
900mm (36in) Wide Tip	36 in / 900 mm	5 tct	K90
1200mm (48in) Wide Tip	48 in / 1200 mm	6 tct	K90
1050mm (42in) Wide Tip	42 in / 1050 mm	5 tct	K90
1550mm (62in) Wide Tip	62 in / 1550 mm	7 tct	K100
1250mm (50in) Wide Tip	50 in / 1250 mm	5 tct	K100
1100mm (44in) Wide Tip	44 in / 1100 mm	5 tct	K100
950mm (38in) Wide Tip	38 in / 950 mm	4 tct	K100
800mm (32in) Wide Tip	32 in / 800 mm	3 tct	K100
1400mm (56in) Wide Tip	56 in / 1400 mm	6 tct	K100
1500mm (60in)	60 in / 1500 mm	5 tct	J400

Heavy Duty

Cat® Heavy Duty Buckets are a great all-purpose bucket, ideal for many different material densities and applications like digging, trenching, loading and your other dirt-handling situations.

Model	Width	Tooth Count	Weight
1050mm (42in) Pin Grabber Performance	42 in / 1050 mm	5	2308 lb / 1047 kg
610mm (24in) Pin Grabber Performance	24 in / 610 mm	3	2052 lb / 931 kg

Ditch Cleaning Tilt

Designed for cleaning ditches, sloping, grading and other finish work.

Model	Width	Capacity	Weight
Ditch Cleaning Tilt Bucket 1200 mm (48 in): 509-9130	48 in / 1200 mm	0.63 yd³ / 0.48 m³	1240 lb / 563 kg
Ditch Cleaning Tilt Bucket 1500 mm (60 in): 509-9131	60 in / 1500 mm	0.75 yd³ / 0.57 m³	1424 lb / 646 kg
Ditch Cleaning Tilt Bucket 829 mm (72 in): 277-4044	94 in / 2400 mm	1.6 yd³ / 1.23 m³	3514 lb / 1594 kg

Multi-Processor with Demolition Jaws

Used to reduce any strength concrete, with and without rebar.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Demolition Jaw	1.8 s	24 tons	1.2 s

Multi-Processor with Universal Jaws

Used for precision demolition, sectioning concrete and down-sizing concrete for crushers.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Universal Jaw	1.6 s	24 tons	1 s

Multi-Processor with Pulverizer Jaws

Used to completely separate rebar from concrete and reduce concrete to the smallest size; also has great picking capability.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Pulverizer Jaw	1.8 s	24 tons	1.2 s

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Rotation Circuit - Maximum Flow	Apex Force	Throat Force
S340B	11 gal/min / 40 l/min	309 Sh Ton / 2751 kN	766 Sh Ton / 6818 kN

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Cycles/Minimum	Base Plate Width
CVP110	24669 lb / 110 kN	2200	34 in / 864 mm

Multi-Processor with Concrete Cutter Jaws

For demolition and cutting of concrete structures.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Concrete Cutter Jaw	1.8 s	24 tons	1.2 s

Multi-Processor with Shear Jaws

Used to reduce angle iron, channel iron, beams, pipe, rebar, cable and tires.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Shear Jaw	1.8 s	24 tons	1.2 s

Multi-Processor with Tank Shear Jaws

Used to cut storage tanks and plate steel producing straight, smooth cuts.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Tank Shear	1.8 s	24 tons	1.2 s
