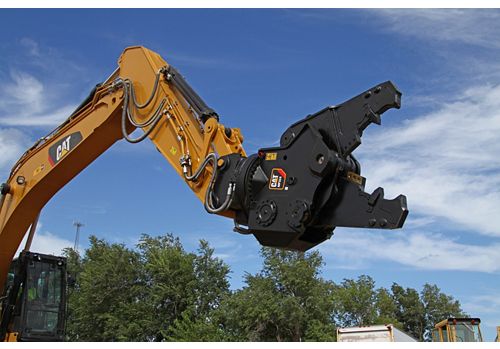

MP345 Demolition Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.4 s
- Crushing Force - Primary Cutter
- 598.8 Sh Ton / 5327 kN
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.4 s |
| Crushing Force - Primary Cutter | 598.8 Sh Ton / 5327 kN |
| Crushing Force - Cutter Tip | 519.2 Sh Ton / 4619 kN |
| Crushing Force - Tooth Tip | 159.3 Sh Ton / 1417 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 33000 kPa / 4786 psi |
| Jaw Circuit - Max. Oil Flow | 95.1 gpm / 360 L/min |
| Rotation Circuit - Max. Oil Pressure | 16000 kPa / 2321 psi |
| Rotation Circuit - Max. Oil Flow | 50 L/min / 13.2 gpm |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 37.6 in / 954 mm |
| Cutter Length | 8.9 in / 225 mm |
| Jaw Opening - Maximum | 46.6 in / 1183 mm |
| Jaw Width - Fixed | 7.4 in / 187 mm |
| Jaw Width - Moveable | 7.4 in / 187 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 93.2 in / 2367 mm |
| Height | 93.2 in / 2367 mm |
| Width | 90.7 in / 2304 mm |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 45 tons |
| Excavator Maximum | 65 tons |
Medium Excavators
| Model | Engine Model | Net Flywheel Power | Operating Weight |
|---|---|---|---|
| 324D L | Cat® C7 ACERT™ | 188 hp / 140 kW | 54660 lb / 24790 kg |
