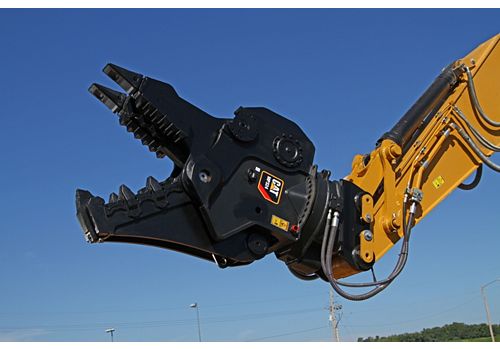

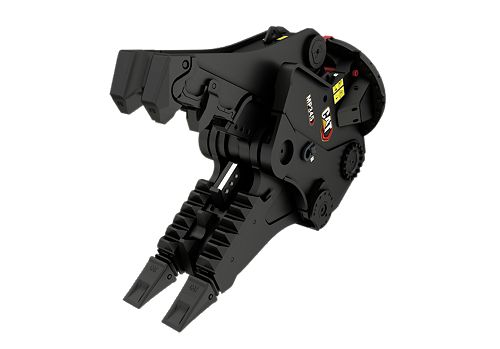

MP345 Pulverizer Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.4 s
- Crushing Force - Primary Cutter
- 631 Sh Ton / 5616 kN

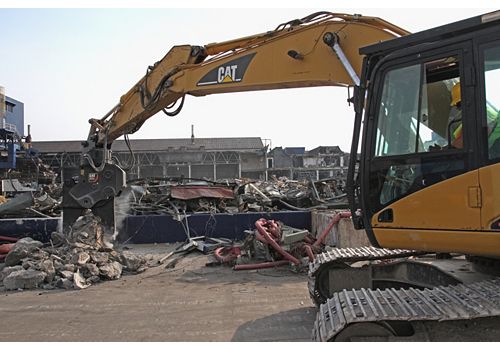

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.4 s |
| Crushing Force - Primary Cutter | 631 Sh Ton / 5616 kN |
| Crushing Force - Cutter Tip | 277 Sh Ton / 2468 kN |
| Crushing Force - Tooth Tip | 199 Sh Ton / 1768 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 5076 psi / 350 bar |
| Jaw Circuit - Max. Oil Flow | 95 gal/min / 360 l/min |
| Rotation Circuit - Max. Oil Pressure | 2321 psi / 160 bar |
| Rotation Circuit - Max. Oil Flow | 13 gal/min / 50 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 34.2 in / 868 mm |
| Cutter Length | 8.9 in / 225 mm |
| Jaw Opening - Maximum | 51.2 in / 1300 mm |
| Jaw Width - Fixed | 22.8 in / 579 mm |
| Jaw Width - Moveable | 16.8 in / 427 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 98.5 in / 2503 mm |
| Height | 84.2 in / 2138 mm |
| Width | 39.6 in / 1005 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 10095 lb / 4579 kg |
| Weight - Jaw Only | 4925 lb / 2234 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 45 tons |
| Excavator Maximum | 65 tons |
Large Excavators
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 350 - Tier 4 / Stage V | 413 hp / 308 kW | 105100 lb / 46000 kg | 26.11 ft / 8210 mm |
| 352 | 443 hp / 330 kW | 107800 lb / 48900 kg | 26.11 ft / 8210 mm |
