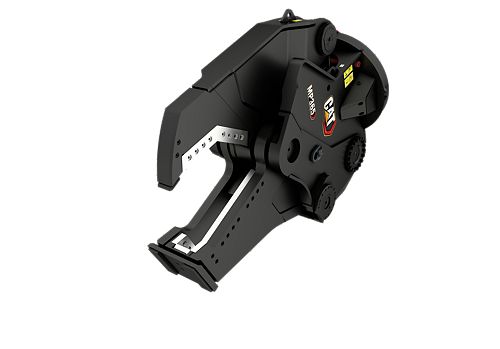

MP365 Shear Jaw

Cycle Time - Open: 2.1 s
Cycle Time - Close: 1.6 s
Cutting Force - Blade Throat: 1270 Sh Ton / 11295 kN

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Loan Calculator Credit Application

Build & Quote

MP365 Multi-Processor Key Features Multi-Processor Brochure Multi-Processors Technical Specifications

Specifications
Related Products

Performance
Cycle Time - Open	2.1 s
Cycle Time - Close	1.6 s
Cutting Force - Blade Throat	1270 Sh Ton / 11295 kN
Cutting Force - Blade Center	490 Sh Ton / 4357 kN
Cutting Force - Blade Tip	263 Sh Ton / 2342 kN

Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure	5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow	119 gal/min / 450 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi / 160 bar
Rotation Circuit - Max. Oil Flow	13 gal/min / 50 l/min

Dimensions - Jaw
Jaw Depth	33.9 in / 860 mm
Cutter Length	28.1 in / 714 mm
Jaw Opening - Maximum	21.7 in / 552 mm
Jaw Width - Fixed	19.3 in / 490 mm
Jaw Width - Moveable	5.7 in / 146 mm

Dimensions - Housing + Jaw
Width	102.2 in / 2597 mm
Length	84 in / 2133 mm
Height	43.3 in / 1100 mm

Weight
Weight - Housing, Jaw and Bracket	12897 lb / 5850 kg
Weight - Jaw Only	6102 lb / 2768 kg

Recommended Carrier Weight
Excavator Minimum	65 tons
Excavator Maximum	90 tons

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
352	443 hp / 330 kW	107800 lb / 48900 kg	26.11 ft / 8210 mm
374 - Tier 4 / Stage V	484 hp / 361 kW	162900 lb / 73890 kg	28.1 ft / 8570 mm
395 - Tier 4 / Stage V	542 hp / 404 kW	207400 lb / 94000 kg	31.9 ft / 9670 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
320 - Tier 4 / Stage V	172 hp / 128.5 kW	49800 lb / 22600 kg	22 ft / 6720 mm
