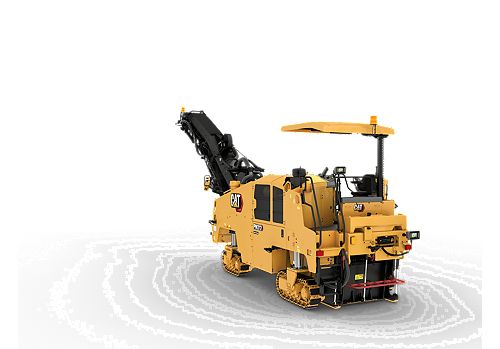

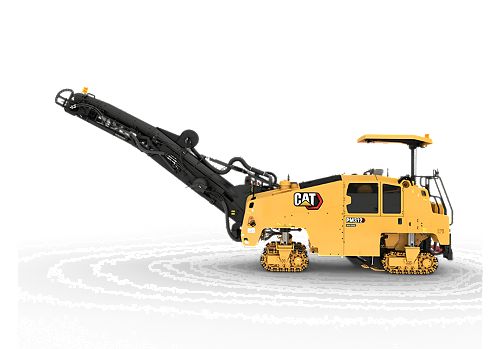

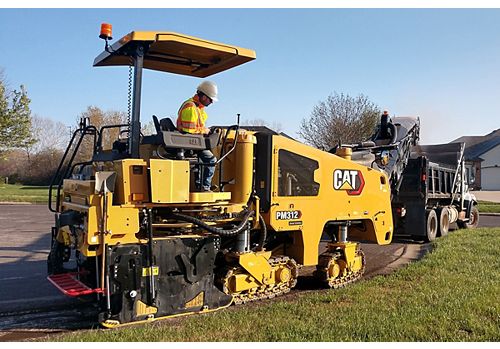

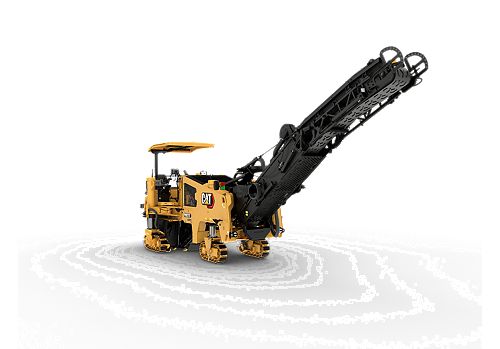

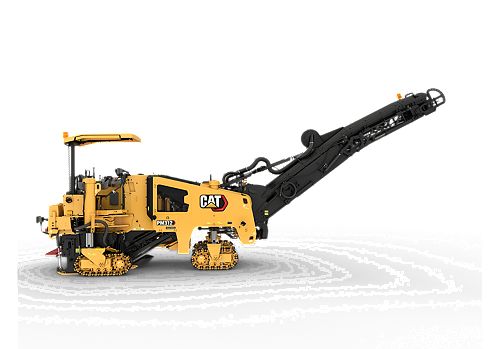

PM312
- Milling Width
- 48.2 in / 1225 mm
- Rated Power
- 343 hp / 256 kW
- Operating Weight
- 47407 lb / 21503 kg
Cat® PM312 Cold Planers with integrated Cat Grade and Slope technology and the latest System K rotors are equipped to deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access help simplify service. Although designed for a single operator, the PM312 includes features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.
| Cutting System | |
|---|---|
| Milling Width | 48.2 in / 1225 mm |
| Maximum Milling Depth | 13 in / 330 mm |
| Rotor Speeds | 97 / 109 / 121 rpm |
| Number of Bits | 106 |
| Power Train | |
|---|---|
| Rated Power | 343 hp / 256 kW |
| Engine | C9.3B |
| Maximum Travel Speed | 3.4 mile/h / 5.5 km/h |
| Maximum Milling Speed | 108 ft/min / 33 m/min |
| Weights | |
|---|---|
| Operating Weight | 47407 lb / 21503 kg |
| Transport Weight | 46506 lb / 21095 kg |
| Dimensions | |
|---|---|
| Operating Length - Conveyor Up | 36.45 ft / 11.11 m |
| Operating Width | 8.33 ft / 2.54 m |
| Height - Canopy | 12.3 ft / 3.75 m |
| Maximum Truck Clearance | 15.42 ft / 4.7 m |
| Minimum Right Cutting Radius | 6.3 ft / 1.92 m |
| Minimum Left Cutting Radius | 13.58 ft / 4.14 m |
| Conveyor Swing | ±60 degrees from center |
| Transport Length | 30.58 ft / 9.32 m |
| Transport Width | 8.33 lb/in / 2.54 m |
| Transport Height | 9.84 ft / 3 m |
| Service Refill Capacities | |
|---|---|
| Cooling System | 16.9 gal (US) / 64 l |
| Diesel Exhaust Fluid (DEF) Tank | 12.4 gal (US) / 47 l |
| Water Spray System Tank | 332.9 gal (US) / 1260 l |
| Fuel Tank | 137.9 gal (US) / 522 l |
| Hydraulic Tank | 14.5 gal (US) / 55 l |
| Engine Oil | 7.9 gal (US) / 30 l |
