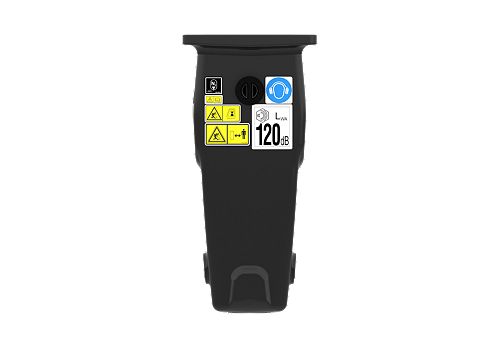

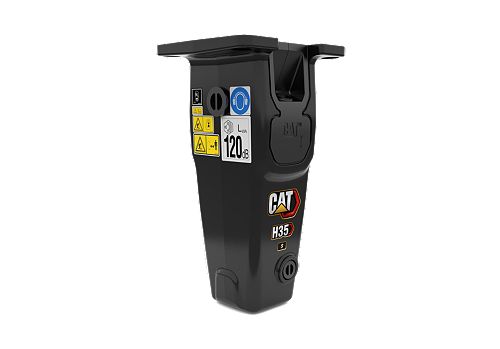

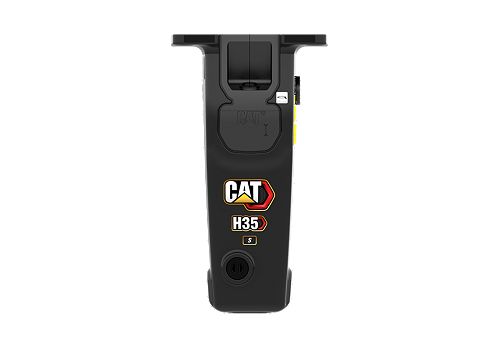

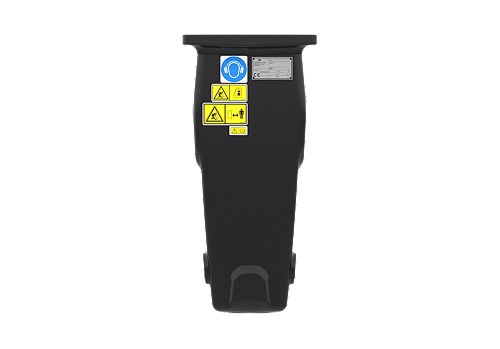

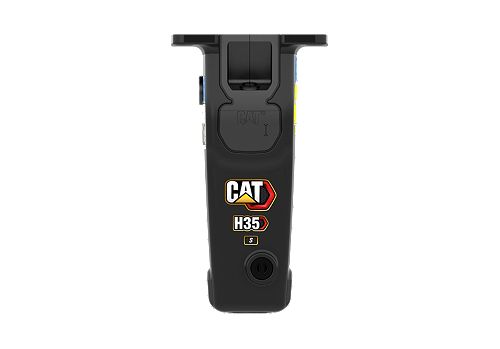

H35s

Operating Weight - With Tool: 286.6 lb / 130 kg
Energy Class: 300.2 ft·lbf / 407 J
Tool Shaft Diameter: 1.6 in / 40 mm

Used for demolition and construction applications.

Cat® H35-H90 Silenced Hammers Product Brochure Cat® H25D-H95 Model Hammers Parts Reference Guide

Specifications
Related Products

Product Specifications
Operating Weight - With Tool	286.6 lb / 130 kg
Energy Class	300.2 ft·lbf / 407 J
Machine Class	1-2 Ton Mini Excavators
Tool Shaft Diameter	1.6 in / 40 mm
Impact Frequency	600-1800 bpm
Minimum Operating Pressure	1450.4 psi / 10000 kPa
Minimum Carrier Weight	2429.5 lb / 1102 kg
Optimal Hydraulic Flow	12-35 lpm (3-9 gpm)
Overall Width	11.8 in / 300 mm
Overall Length	12.2 in / 311 mm
Overall Height	33.9 in / 860 mm
Height - Without Tool	24.4 in / 620 mm
Sound Level	120 dB

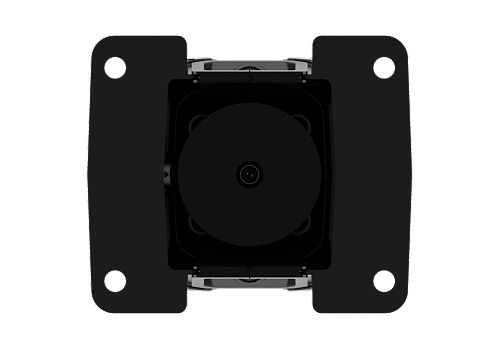

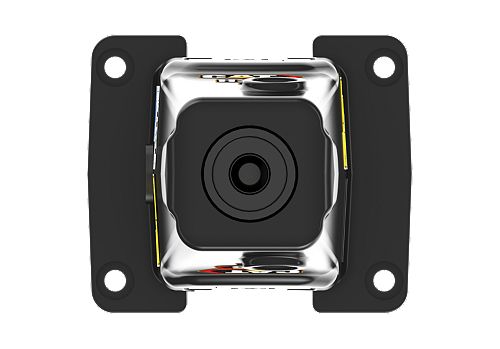

Mounting Bracket Size	Medium

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model	Net Power	Operating Weight	Dig Depth
301.5	21 hp / 15.7 kW	3913 lb / 1775 kg	100 in / 2540 mm
301.7 CR	21 hp / 15.7 kW	4222 lb / 1915 kg	100 in / 2540 mm
301.8	21 hp / 15.7 kW	4473 lb / 2029 kg	101.2 in / 2570 mm
302 CR	21 hp / 15.7 kW	4987 lb / 2262 kg	101.2 in / 2570 mm
