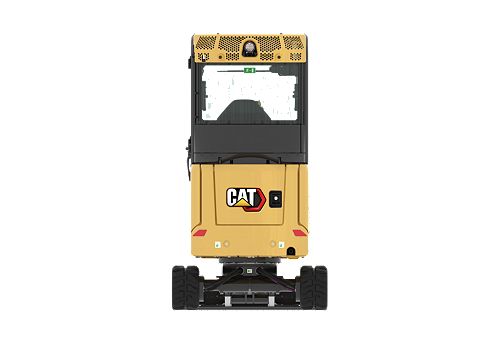

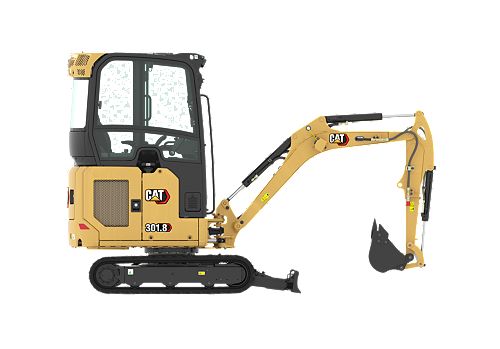

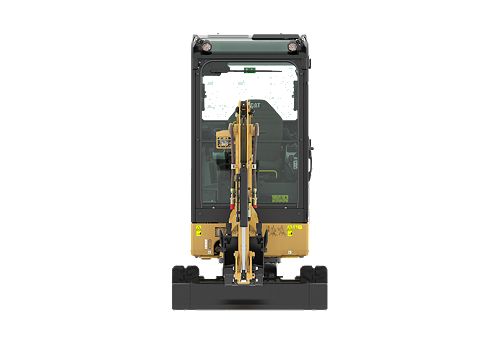

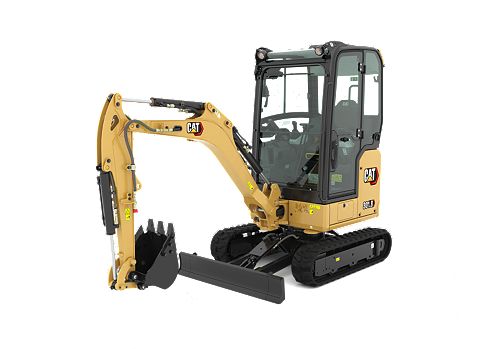

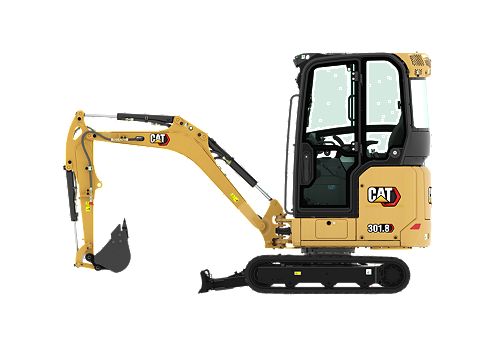

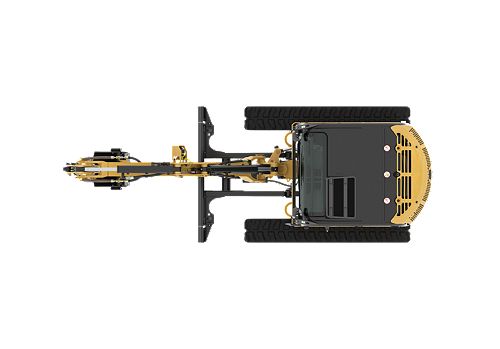

301.8

Specifications
Equipment
Related Products

Engine
Engine Model	C1.1
Net Power	19.2 HP / 14.3 kW
Bore	3 in / 77 mm
Displacement	69 in³ / 1.1 l
Gross Power - ISO 14396	21.6 HP / 16.1 kW
Rated Net Power - 2,400 rpm - ISO 9249/EEC 80/1269	19.2 HP / 14.3 kW
Stroke	3.2 in / 81 mm

Weights
Operating Weight	4464 lb / 2025 kg
Maximum Operating Weight with Cab	4464 lb / 2025 kg
Maximum Operating Weight with Canopy**	4178 lb / 1895 kg
Minimum Operating Weight with Cab	4045 lb / 1835 kg
Minimum Operating Weight with Canopy*	3781 lb / 1715 kg
Note (1)	*Minimum Weight is based on rubber tracks, canopy, operator, fixed undercarriage and full fuel tank.
Note (2)	**Maximum Weight is based on steel tracks, canopy, operator, expandable undercarriage and full fuel tank.

Blade
Height	8.9 in / 225 mm
Note	*Expanded – 1300 mm (51 in)
Width*	39 in / 990 mm

Certification - Cab and Canopy
Roll Over Protective Structure (ROPS)	ISO 12117-2: 2008
Tip Over Protective Structure (TOPS)	ISO 12117: 1997
Top Guard	ISO 10262: 1998 (Level II)

Dimensions - Long Stick
Boom Height - Shipping Position	40.2 in / 1020 mm
Boom In Reach	55.9 in / 1420 mm
Boom Swing - Left	65 °
Boom Swing - Right	50 °
Dig Depth	101.2 in / 2570 mm
Maximum Blade Depth	10.4 in / 265 mm
Maximum Blade Height	10.6 in / 270 mm
Maximum Dig Height	142.5 in / 3620 mm
Maximum Dump Clearance	103.9 in / 2640 mm
Maximum Reach	168.1 in / 4270 mm
Maximum Reach - Ground Level	155.9 in / 3960 mm
Minimum Ground Clearance Below Undercarriage	5.9 in / 150 mm
Note	*Overall Shipping Length depends on blade position during shipment.
O/A Shipping Height	90.6 in / 2300 mm
O/A Undercarriage Length	62.6 in / 1590 mm
Stick Length	45.7 in / 1160 mm
Swing Bearing - Height	17.4 in / 442 mm
Tail Swing	39.2 in / 995 mm
Track Belt/Shoe Width	9.1 in / 230 mm
Track Width - Expanded	51.18 in / 1300 mm
Track Width - Retracted	39 in / 990 mm
Vertical Wall	76.4 in / 1940 mm

Dimensions - Standard Stick
Note	*Overall Shipping Length depends on blade position during shipment.
Boom Height - Shipping Position	42.1 in / 1070 mm
Boom In Reach	55.9 in / 1420 mm
Boom Swing - Left	65 °
Boom Swing - Right	50 °
Dig Depth	93.3 in / 2370 mm
Maximum Blade Depth	10.4 in / 265 mm
Maximum Blade Height	10.6 in / 270 mm
Maximum Dig Height	139.8 in / 3550 mm
Maximum Dump Clearance	100.8 in / 2560 mm
Maximum Reach	161.8 in / 4110 mm
Maximum Reach - Ground Level	149.6 in / 3800 mm
Minimum Ground Clearance Below Undercarriage	5.9 in / 150 mm
O/A Shipping Height	90.6 in / 2300 mm
O/A Undercarriage Length	62.6 in / 1590 mm
Overall Shipping Length*	146.5 in / 3720 mm
Stick Length	37.8 in / 960 mm
Swing Bearing - Height	17.4 in / 442 mm
Tail Swing	39.2 in / 995 mm
Track Belt/Shoe Width	9.1 in / 230 mm
Track Width - Expanded	51.18 in / 1300 mm
Track Width - Retracted	39 in / 990 mm
Vertical Wall	72.8 in / 1850 mm

Hydraulic System
Auxiliary Circuit - Primary - Flow	8.7 gal/min / 33 l/min
Auxiliary Circuit - Primary - Pressure	3553.4 psi / 245 bar
Auxiliary Circuit - Secondary - Flow	3.7 gal/min / 14 l/min
Auxiliary Circuit - Secondary - Pressure	3553.4 psi / 245 bar
Digging Force - Bucket	4406.3 lbf / 19.6 kN
Digging Force - Stick - Long	2203.1 lbf / 9.8 kN
Digging Force - Stick - Standard	2540.3 lbf / 11.3 kN
Operating Pressure - Equipment	3553.4 psi / 245 bar
Operating Pressure - Swing	2132.1 psi / 147 bar
Operating Pressure - Travel	3553.4 psi / 245 bar
Pump Flow at 2,400 rpm	17.4 gal/min / 66 l/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump

Service Refill Capacities
Cooling System	1 gal (US) / 3.9 l
Engine Oil	1.2 gal (US) / 4.4 l
Fuel Tank	6.9 gal (US) / 26 l
Hydraulic System	6.9 gal (US) / 26 l
Hydraulic Tank	4.8 gal (US) / 18 l

Sound
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Note	European Union Directive “2000/14/EC”
Operator Sound Pressure (ISO 6396:2008)	73 dB(A)

Swing System
Machine Swing Speed	9.8 r/min

Travel System
Gradeability - Maximum	30 degrees
Ground Pressure - Maximum Weight	4.3 psi / 29.6 kPa
Ground Pressure - Minimum Weight	3.9 psi / 26.8 kPa
Maximum Traction Force - High Speed	2675.2 lbf / 11.9 kN
Maximum Traction Force - Low Speed	4136.5 lbf / 18.4 kN
Travel Speed - High	2.7 mile/h / 4.4 km/h
Travel Speed - Low	1.8 mile/h / 2.9 km/h

Weight Increase from Minimum Configuration
Cab	298 lb / 135 kg
Long Stick	22 lb / 10 kg
Steel Tracks	110 lb / 50 kg

Standard Equipment

ENGINE
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
OPERATOR ENVIRONMENT
- Cab or Canopy
- ROPS – ISO 12117-2: 2008
- TOPS – ISO 12117: 1997
- Top Guard – ISO 10262: 1998 (Level II)
- Cab HVAC or Heat Only
- Next Generation Standard LCD Monitor
- Machine Security – Standard Key with Pass Code or Push to Start with Fob
- Adjustable Wrist Rests
- Fabric or Vinyl Seat
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Cab Interior Light
- Cab Radio
- Storage Pocket
- Skylight
- Washable Floor Mat
- Travel Pedals and Levers
- Next Generation Stick Steer
- Hydraulic Lockout – All Controls
- Machine 2-Point Lifting
- Tilt-up Cab or Canopy
- Bluetooth® Capable (Cab only)
UNDERCARRIAGE
- Fixed or Expandable Undercarriage
- Rubber Belt or Steel Track (250 mm/9.8 in wide)
- Dozer Blade with Float
- Tie Downs on Track Frame
BOOM, STICK AND LINKAGES
- One Piece Boom (1850 mm/73 in)
- Standard Stick (960 mm/37.8 in) or Long Stick (1160 mm/45.7 in)
- Front Shovel Capable (Pin-On/Manual Coupler/Hydraulic Coupler – not available in all regions)
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (not available in all regions)
ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Warning Horn
- 12 Volt Power Socket
- Boom Light, Halogen
- Pattern Changer

Optional Equipment

OPERATOR ENVIRONMENT
- Mirrors Left and Right
ELECTRICAL
- Product Link™
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Battery Disconnect
OTHER
- Attachments including Buckets, Augers and Hammers
- Travel Alarm (standard in some regions)
- Water Jacket Heater
- Eco Drain
- Guard, Canopy
- Guard, Mesh
- Quick Coupler Lines
- Thumb Bracket (standard in some regions)
- Secondary Auxiliaries
- Bio Oil Capable
- No Travel Pedals and Levers
- Boom Lowering Check Valve
- Stick Lowering Check Valve

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A7B	815 lb/ft / 1105 N·m	Gerotor Motor - Direct Drive	Mini Hydraulic Excavator
A7B Long Stick	815 lb/ft / 1105 N·m	Gerotor Motor - Direct Drive	Mini Hydraulic Excavator
A7B Standard Stick	815 lb/ft / 1105 N·m	Gerotor Motor - Direct Drive	Mini Hydraulic Excavator

Digging Buckets - Mini Excavator

These buckets are ideal for digging in soft to moderate ground.

Model	Width	Capacity	Weight
230 mm (9 in)	9.1 in / 230 mm	0.6 ft³ / 17 l	64.7 yd³ / 29.4 m³
300 mm (12 in)	11.8 in / 300 mm	0.8 ft³ / 22.7 l	68.5 lb / 31.1 kg
400 mm (16 in)	15.7 in / 400 mm	1.2 ft³ / 34 l	77.9 yd³ / 35.4 m³
460 mm (18 in)	18.1 in / 460 mm	1.4 ft³ / 39.6 l	83.4 yd³ / 37.9 m³
500 mm (20 in)	19.7 in / 500 mm	1.6 ft³ / 45.3 l	90.2 yd³ / 40.9 m³
600 mm (24 in)	23.6 in / 600 mm	1.9 ft³ / 56.6 l	100.2 lb / 45.4 kg

Ditch Cleaning Buckets - Mini Excavator

Used in ditch cleaning, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
800 mm (32 in)	31.5 in / 800 mm	42.5 l / 1.5 ft³	89.3 lb / 40.5 kg
1000 mm (40 in)	39.4 in / 1000 mm	56.6 l / 2 ft³	93.7 lb / 42.5 kg

Grading Buckets - Mini Excavator

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Rated Capacity	Weight
1000 mm (39 in)	39.4 in / 1000 mm	3.11 yd³ / 88.1 m³	128.3 lb / 58.2 kg
