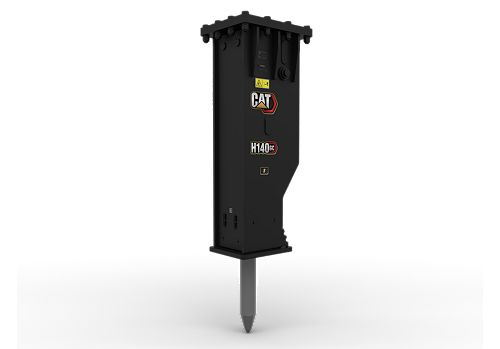

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.
| Product Specifications | |
|---|---|
| Impact Energy Class | 5531 ft-lb / 7500 J |
| Blows per Minute | 250-550 |
| Maximum Operating Weight | 6894.8 lb / 3134 kg |
| Minimum Operating Weight | 6558 lb / 2981 kg |
| Maximum Carrier Weight | 88184 lb / 40 t |
| Minimum Carrier Weight | 66138 lb / 30 t |
| Tool Shaft Diameter | 6.02 in / 153 mm |
| Maximum Operating Pressure | 2610 psi / 18000 kPa |
| Minimum Operating Pressure | 2320 psi / 16000 kPa |
| Rated Flow - Maximum | 58 gal/min / 221 l/min |
| Rated Flow - Minimum | 48 gal/min / 181 l/min |
| Model | Engine Model | Stroke | Net Flywheel Power |
|---|---|---|---|
| 336F L Straight Boom (2017) | Cat C9.3 ACERT | 5.87 in / 149 mm | 306 HP / 228 kW |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 330 GC - Tier 4 / Stage V | 201 HP / 150 kW | 68100 lb / 30900 kg | 23.8 ft / 7260 mm |
| 330 - Tier 4 / Stage V | 273 HP / 203.7 kW | 69200 lb / 31400 kg | 23.9 ft / 7240 mm |
| 335 - Tier 4 / Stage V | 273 HP / 203.7 kW | 77000 lb / 34900 kg | 22.9 ft / 6990 mm |
