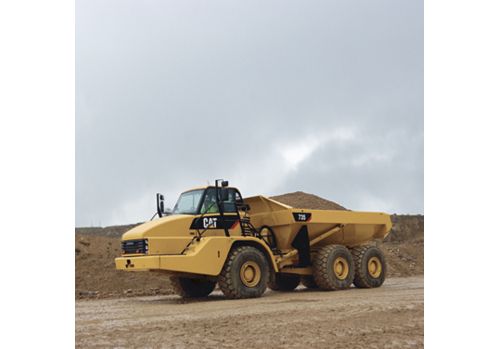

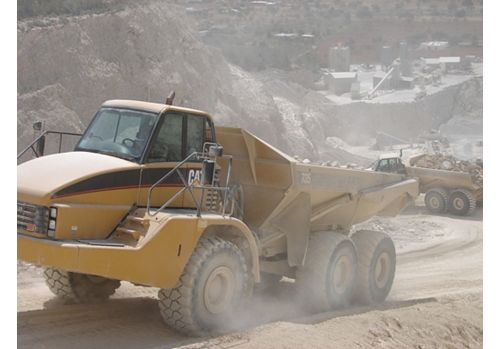

735

Gross Power - SAE J1995
435 HP / 324 kW
Net Power - SAE J1349
419 HP / 313 kW
Rated Payload
36 Sh Ton / 32.7 t

Cat 735 with 36 ton (32.7 tonnes) rated payload offers proven reliability and durability, high productivity, superior operator comfort and lower operating costs. Spacious two-person cab with forward facing trainer/passenger seat and off-road oil/nitrogen front suspension cylinders keep the operator comfortable through out the working day. True "on-the-go” differential locks with simple operation improve cycle times and productivity. Strong durable Cat ACERT engines and electronically controlled transmissions deliver high productivity with low fuel consumption.

Loan Calculator Credit Application
Build & Quote
alt 1
735 Brochure
Engine
Engine Model Cat® C15 ACERT™
Gross Power - SAE J1995 435 HP / 324 kW
Net Power - SAE J1349 419 HP / 313 kW
Net Power - ISO 9249 424 HP / 319 kW
Net Power - EEC 80/1269 424 HP / 319 kW
Bore 5.4 in / 137 mm
Stroke 6.75 in / 171.5 mm
Displacement 926 in³ / 15.2 l
Weights
Rated Payload 36 Sh Ton / 32.7 t
Body Capacities
Heaped (SAE 2:1) 25.8 yd³ / 19.7 m³
Struck 19.2 yd³ / 14.7 m³
Tailgate Heaped SAE 2:1 27.3 yd³ / 20.9 m³
Tailgate Struck 19.9 yd³ / 15.2 m³
Transmission
Forward - 1 5 mile/h / 8 km/h
Forward - 2 7 mile/h / 11 km/h
Forward - 3 10 mile/h / 15 km/h
Forward - 4 13 mile/h / 21 km/h
Forward - 5 17 mile/h / 28 km/h
Forward - 6 23 mile/h / 38 km/h
Forward - 7 32 mile/h / 51 km/h
Reverse - 1 5 mile/h / 8 km/h
Reverse - 2 7 mile/h / 11 km/h
Sound Levels
Interior Cab 79 dB(A)
Operating Weights
Front Axle - Empty 41881 lb / 18997 kg
Center Axle - Empty 14406 lb / 6534 kg
Rear Axle - Empty 12919 lb / 5860 kg
Total - Empty 69206 lb / 31391 kg
Front Axle - Rated Load 7417 lb / 3364 kg
Center Axle - Rated Load 32337 lb / 14668 kg
Rear Axle - Rated Load 32337 lb / 14668 kg
Total - Rated Load 72091 lb / 32700 kg
Front Axle - Loaded 49298 lb / 22361 kg
Center Axle - Loaded 46743 lb / 21202 kg
Rear Axle - Loaded 45256 lb / 20528 kg
Total - Loaded 141297 lb / 64091 kg
Body Plate Thickness
Front 0.31 in / 8 mm
Scow 0.55 in / 14 mm
Side 0.47 in / 12 mm
Base 0.55 in / 14 mm
Service Refill Capacities
Fuel Tank 140.5 gal (US) / 532 l
Cooling System 21.1 gal (US) / 80 l
Hydraulic System 87.2 gal (US) / 330 l
Engine Crankcase 10.6 gal (US) / 40 l
Transmission 19 gal (US) / 72 l
Final Drives/Differential 60.8 gal (US) / 230 l
Output Transfer Gear Box 4.8 gal (US) / 18 l
Body Hoist
Raise Time 11 s
Lower Time 7 s
Standards
Brakes ISO 3450 - 1996
Cab - FOPS ISO 3449 Level II - 2005
Cab - ROPS ISO 3471 - 2008
Steering ISO 5010 - 2007

Standard Equipment

  • ROPS/FOPS cab, with full instrumentation, including:
    • Instrument cluster display module.
    • Indicator lamps: left turn, secondary steering, primary steering loss, front and rear brake temp (735/740 and 740 Ejector only), brake oil pressure, action lamp, transmission fault, park brake, charging system status, differential lock, body not in float, right turn, high beam, transmission hold, machine filter warning, retarder, retarder up shift warning
    • Gauges: engine oil pressure, engine coolant temperature, torque converter oil temperature, fuel level, and fuel tank level gauge
    • Meters: service hour meter, speedometer, tachometer

Optional Equipment

  • Tailgate:
    • Scissor-type
