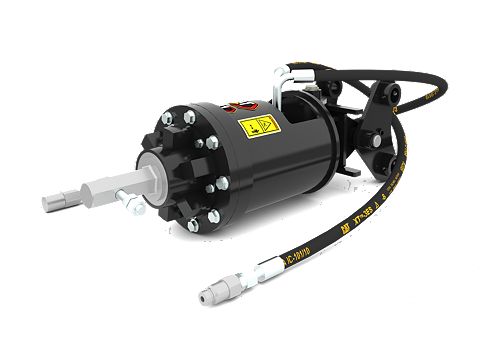

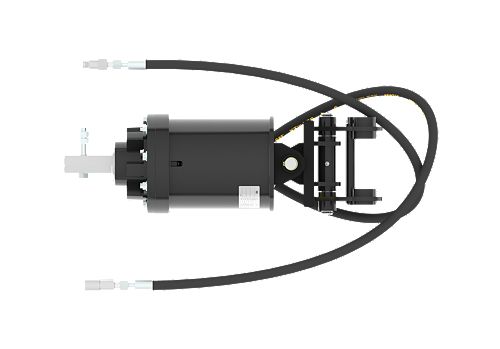

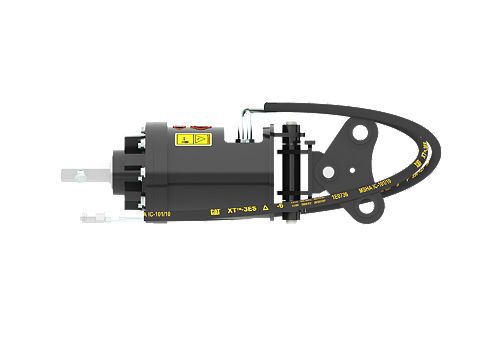

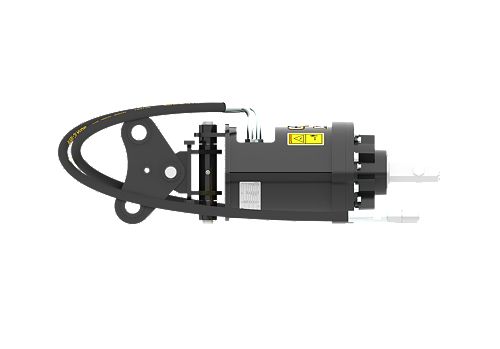

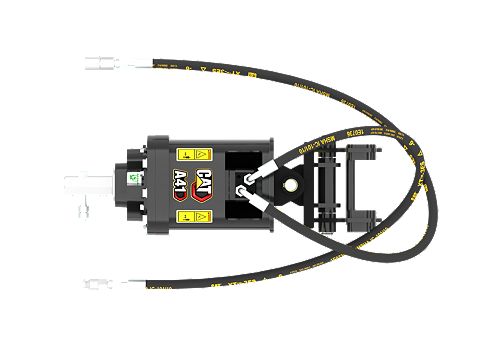

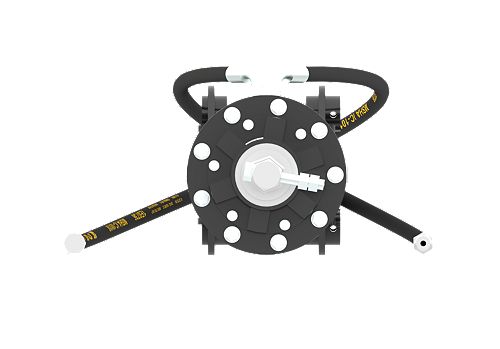

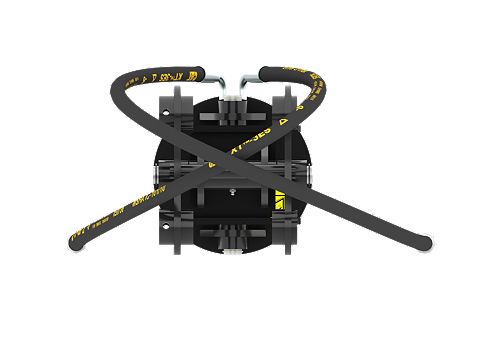

A41, 3 Ton Mini Excavators
- Drive Shaft Torque at Maximum Pressure
- 3038.8 lb/ft / 4120 N·m
- Overall Width - With Bracket
- 11.8 in / 300 mm
- Overall Length - With Bracket
- 11.1 in / 282 mm
Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
| Product Specifications | |
|---|---|
| Drive Shaft Torque at Maximum Pressure | 3038.8 lb/ft / 4120 N·m |
| Drive Method | Gerotor Motor - Single Planetary Reduction |
| Mounting Bracket Design | 3 Ton Mini Excavator Pin On |
| Required Hydraulics | Standard Flow |
| Optimal Hydraulic Flow | 42-83 L/min (11-22 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Overall Width - With Bracket | 11.8 in / 300 mm |
| Overall Length - With Bracket | 11.1 in / 282 mm |
| Overall Height | 34.4 in / 875 mm |
| Housing Diameter | 11 in / 280 mm |
| Swing Range (fore/aft) | 72 degrees |
| Swing Range (L/R) | 76 degrees |
| Weight | 202.8 lb / 92 kg |
| Motor Displacement | 15.26 in³ / 250 cm³ |
| Bit Speed at Maximum Flow | 71 rpm |
| Hex Output Shaft Size | 2 in / 51 mm |
Adapters
| Model | Overall Length | Weight | Shaft Sizes |
|---|---|---|---|
| Hex To Round Adapter | 14.5 in / 368 mm | 15.4 lb / 7 kg | Hex End 52 mm (2 in), Round End 65 mm (2.6 in) |
| Round To Hex Adapter | 15.5 in / 394 mm | 15.4 lb / 7 kg | Hex End 52 mm (2 in), Round End 65 mm (2.6 in) |
Extensions
| Model | Overall Length | Weight | Number of Adjustments |
|---|---|---|---|
| 305 mm (12 in) Extension | 19.3 in / 491 mm | 19.8 lb / 9 kg | 3 |
| 610 mm (24 in) Extension | 31.3 in / 795 mm | 33.1 lb / 15 kg | 6 |
| 914 mm (36 in) Extension | 42 in / 1067 mm | 44.1 lb / 20 kg | 0 |
| 1829 mm (72 in) Extension | 78 in / 1981 mm | 77.2 lb / 35 kg | 0 |
